AWG28-9 Series

Catalog

CBL RIBN 9COND 0.05 GRAY 5'

Part	Insulation Resistance	First Conductor Mark	Spool Size [x]	Spool Size [x]	Conductor Material	Length	Ribbon Width [custom]	Ribbon Width [custom]	Operating Temperature	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Ratings	Length	Length	Wire Gauge	Number of Conductors	Jacket Color	Shielding	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Ribbon Thickness	Ribbon Thickness	Voltage

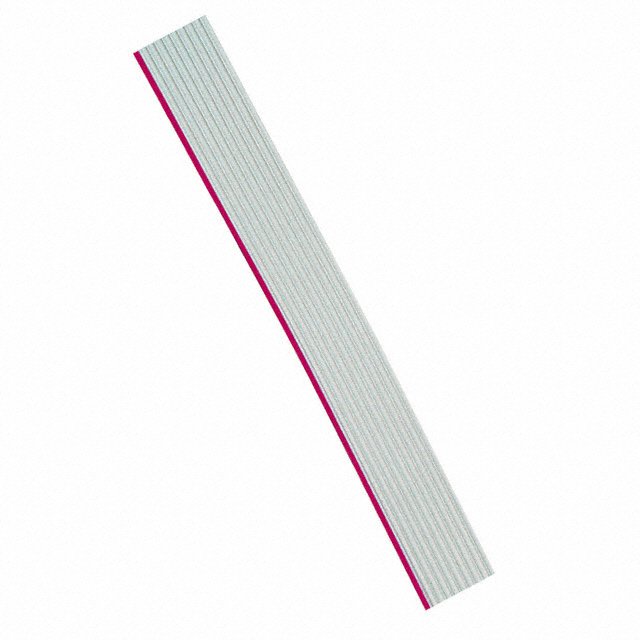

Assmann WSW Components AWG28-9/G/300	100 MOhms	Red	300 ft	91.44 m	Copper Tinned	Enter Number of Feet in Order Quantity	0.45 in	11.43 mm	105 C	0.05 in	1.27 mm	-10 °C	105 ░C	50 ft	15.24 m	UL Style 2651	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	28 AWG	9	Gray	Unshielded	Poly-Vinyl Chloride (PVC)	36 AWG	7 Strands	Flat Cable	0.89 mm	0.035 in	300 VDC

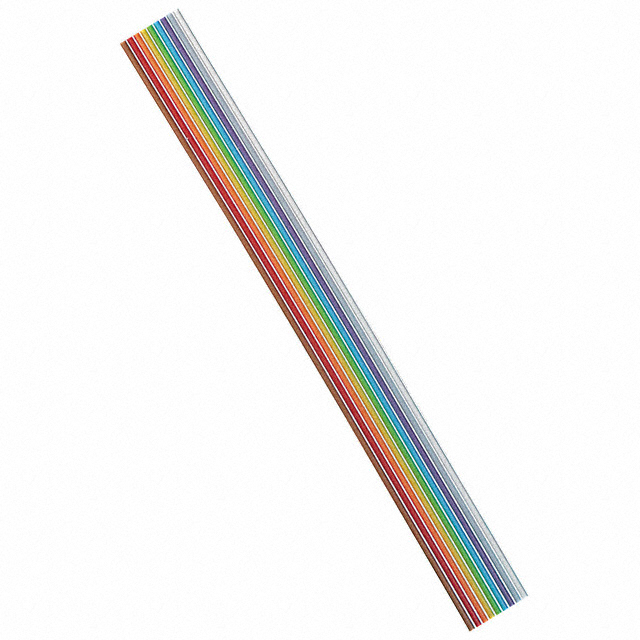

Assmann WSW Components AWG28-9/F/300	100 MOhms	Red			Copper Tinned		0.45 in	11.43 mm	105 C	0.05 in	1.27 mm	-10 °C	105 ░C	50 ft	15.24 m	UL Style 2651	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	28 AWG	9	Multiple	Unshielded	Poly-Vinyl Chloride (PVC)	36 AWG	7 Strands	Flat Cable	0.89 mm	0.035 in	300 VDC
