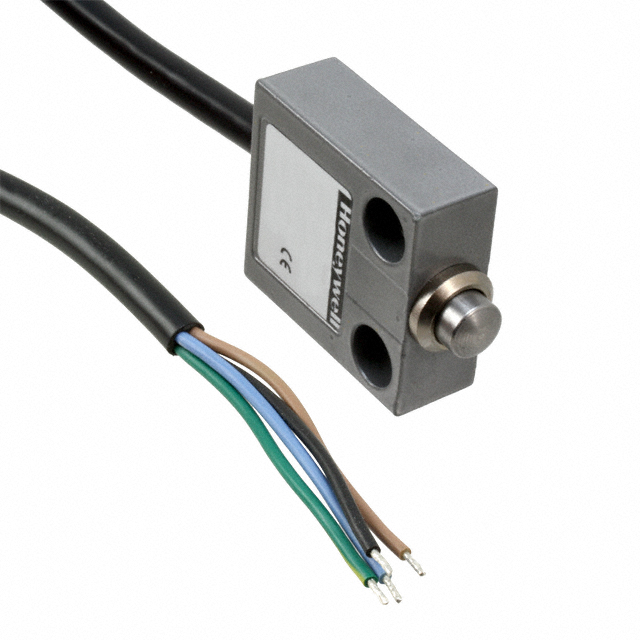

14CE1 Series
Manufacturer: Honeywell Sensing and Control EMEA
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 250V
| Part | Pretravel (Length) | Ingress Protection Description | Ingress Protection IP Rating | Mechanical Life (Cycles) | Operating Temperature (Max) | Operating Temperature (Min) | Release Force | Voltage Rating - AC | Operating Position (Length) | Actuator Type | Mounting Type | Current Rating | Circuit | Operating Force | Overtravel (Linear) | Switch Function | Differential Travel (Linear) | Termination Style | Cable Length | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Control EMEA | 0.071 in | Dust Tight Water Resistant | IP66 | 10000000 Cycles | 70 °C | 0 °C | 450 gf | 250 V | 0.618 in | Round (Pin Plunger) | Chassis Mount | 5 A | SPDT | 2300 gf | 0.118 in | On-Mom | 0.004 in | Cable Leads | 1 m | Cable Length |
Honeywell Sensing and Control EMEA | 0.071 in | Dust Tight Water Resistant | IP65 | 10000000 Cycles | 70 °C | 0 °C | 450 gf | 250 V | 0.618 in | Round (Pin Plunger) | Chassis Mount | 5 A | SPDT | 1200 gf | 0.118 in | On-Mom | 0.004 in | Cable Leads | 1 m | Cable Length |
