MAX6226 Series

Catalog

VOLTAGE REFERENCE 2.5V EVAL BRD

Part	Supplied Contents	Contents	Function	Primary Attributes	Type	Secondary Attributes	Voltage - Output (Min/Fixed)	Reference Type	Current - Output	Tolerance	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Temperature Coefficient	Mounting Type	Noise - 0.1Hz to 10Hz	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]

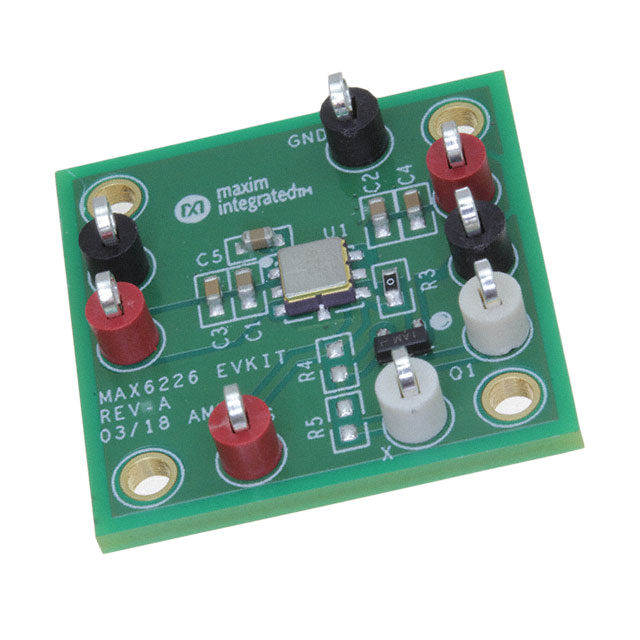

Analog Devices Inc./Maxim Integrated MAX6226EVKIT#	Board(s)	Board(s)	Voltage Reference	1-Channel (Single)	Power Management	On-Board Test Points

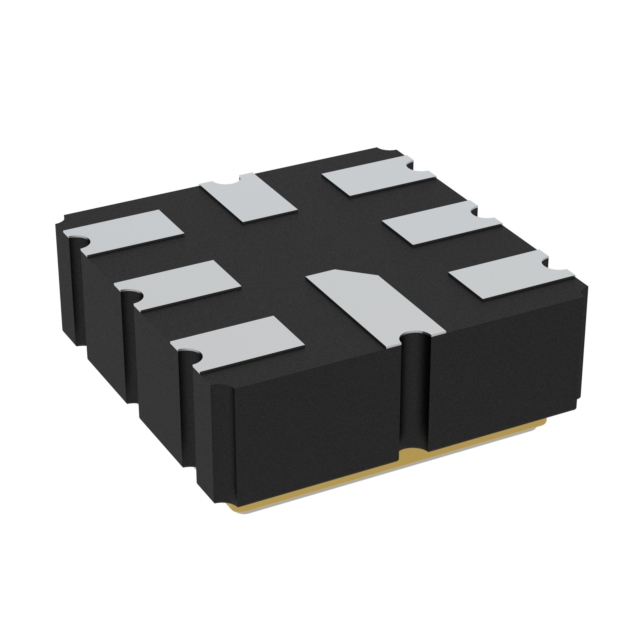

Analog Devices Inc./Maxim Integrated MAX6226ALA50+							5 V	Series	10 mA	0.02 %	3.8	3.8	8-CLCC	125 °C	-40 °C	500 µA	5 ppm/°C	Surface Mount	2.85 µVp-p	8-CLCC	12.6 V	5.2 V
Analog Devices Inc./Maxim Integrated MAX6226ALA33+T							3.3 V	Series		0.02 %	3.8	3.8	8-CLCC	125 °C	-40 C	725 µA	3 ppm/░C	Surface Mount	1.95 µVp-p	8-CLCC	12.6 V	3.5 V
Analog Devices Inc./Maxim Integrated MAX6226ALA50+T							5 V	Series	10 mA	0.02 %	3.8	3.8	8-CLCC	125 °C	-40 °C	500 µA	5 ppm/°C	Surface Mount	2.85 µVp-p	8-CLCC	12.6 V	5.2 V
Analog Devices Inc./Maxim Integrated MAX6226ALA25+T							2.5 V	Series	10 mA	0.02 %	3.8	3.8	8-CLCC	125 °C	-40 °C	550 µA	5 ppm/°C	Surface Mount	1.45 µVp-p	8-CLCC	12.6 V	2.7 V
Analog Devices Inc./Maxim Integrated MAX6226ALA33+							3.3 V	Series		0.02 %	3.8	3.8	8-CLCC	125 °C	-40 C	725 µA	3 ppm/░C	Surface Mount	1.95 µVp-p	8-CLCC	12.6 V	3.5 V
Analog Devices Inc./Maxim Integrated MAX6226ALA25+							2.5 V	Series	10 mA	0.02 %	3.8	3.8	8-CLCC	125 °C	-40 °C	550 µA	5 ppm/°C	Surface Mount	1.45 µVp-p	8-CLCC	12.6 V	2.7 V
