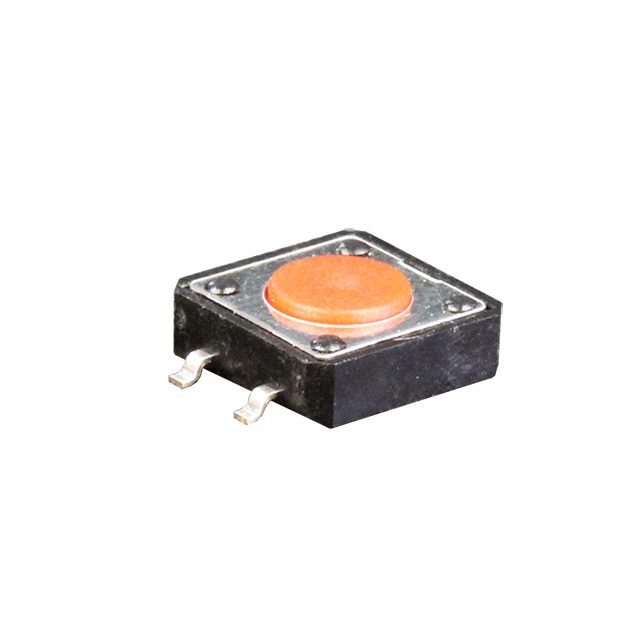

CS11034 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 48V
| Part | Switch Travel | Actuator Material | Termination Style | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Outline [y] | Outline [x] | Contact Rating @ Voltage | Actuator Height off PCB, Vertical [z] | Illumination | Actuator Type | Circuit | Actuator Orientation | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.3 mm | Polyamide (PA6T) Nylon 6T | Gull Wing | 260 gf | 85 °C | -40 C | Surface Mount | 12 mm | 12 mm | 0.05 A 48 VDC | 4.3 mm | Non-Illuminated | Standard | SPST-NO | Top Actuated | Off-Mom |
