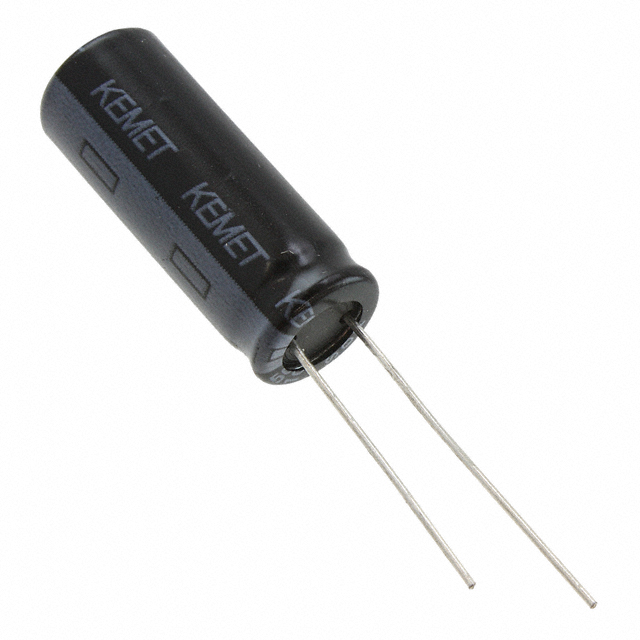

ESY827M Series

Manufacturer: KEMET

Catalog

CAP ALUM 820UF 20% 6.3V RADIAL

Part	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Voltage - Rated	Polarization	Mounting Type	Impedance	Lead Spacing	Lead Spacing	Tolerance	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ESY827M6R3AG8AA	820 µF	0.709 in	18 mm	Can Radial	0.315 in	8 mm	3000 Hrs	56 mOhm	750 mA	6.3 VDC	Polar	Through Hole	56 mOhms	0.138 in	3.5 mm	20 %	General Purpose	-40 C	105 ░C	1 A
KEMET ESY827M025AH5AA	820 µF			Can Radial	0.394 in	10 mm	4000 Hrs	23 mOhm	1.6125 A	25 VDC	Polar	Through Hole	23 mOhms	0.197 "	5 mm	20 %	General Purpose	-40 C	105 ░C	2.15 A	1.063 in	27 mm
