2232263 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

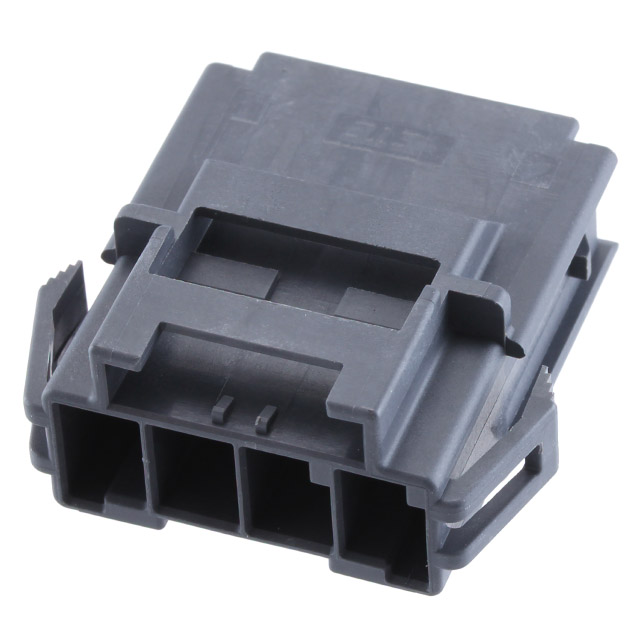

(5-2232263-4) PTL 1X4 CAP PANEL MT GLW WIRE KEY A DGR
| Part | Contact Termination | Mounting Type | Insulation Material | Fastening Type | Number of Positions | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Note | Color | Number of Rows | Contact Type | Features | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | Panel Mount Snap-In | Glass Filled Nylon Polyamide (PA) | Latch Lock | 4 | 0.236 in | 6 mm | 105 ░C | -55 °C | Contacts Not Included | Gray | 1 | Tab | Glow Wire Compliant | Receptacle |
 TE Connectivity Raychem Cable Protection | Crimp | Panel Mount Snap-In | Polyamide (PA6) Nylon 6 Glass Filled | Latch Lock | 2 | 0.236 in | 6 mm | 140 °C | -55 °C | Contacts Not Included | 1 | Tab | Glow Wire Compliant | Receptacle | |
 TE Connectivity Raychem Cable Protection | Crimp | Panel Mount Snap-In | Polyamide (PA6) Nylon 6 Glass Filled | Latch Lock | 2 | 0.236 in | 6 mm | 140 °C | -55 °C | Contacts Not Included | Green | 1 | Tab | Glow Wire Compliant | Receptacle |
TE Connectivity Raychem Cable Protection | Crimp | Panel Mount Snap-In | Polyamide (PA6) Nylon 6 Glass Filled | Latch Lock | 0.236 in | 6 mm | 140 °C | -55 °C | Contacts Not Included | Green | 1 | Tab | Glow Wire Compliant | Receptacle | |
 TE Connectivity Raychem Cable Protection | Crimp | Panel Mount Snap-In | Polybutylene Terephthalate (PBT) Glass Filled | Latch Lock | 4 | 0.236 in | 6 mm | 105 ░C | -55 °C | Contacts Not Included | Black | 1 | Tab | Receptacle | |
TE Connectivity Raychem Cable Protection | Crimp | Panel Mount Snap-In | Polyamide (PA6) Nylon 6 Glass Filled | Latch Lock | 0.236 in | 6 mm | 140 °C | -55 °C | Contacts Not Included | 1 | Tab | Glow Wire Compliant | Receptacle | ||
TE Connectivity Raychem Cable Protection | Crimp | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) Glass Filled | Latch Lock | 2 | 0.236 in | 6 mm | Contacts Not Included | Natural | 1 | Female Blade Socket | Plug | |||
TE Connectivity Raychem Cable Protection | Crimp | Panel Mount Snap-In | Glass Filled Nylon Polyamide (PA) | Latch Lock | 0.236 in | 6 mm | 105 ░C | -55 °C | Contacts Not Included | Gray | 1 | Tab | Glow Wire Compliant | Receptacle | |
TE Connectivity Raychem Cable Protection | Crimp | Panel Mount Snap-In | Polyamide (PA6) Nylon 6 Glass Filled | Latch Lock | 0.236 in | 6 mm | 140 °C | -55 °C | Contacts Not Included | Green | 1 | Tab | Glow Wire Compliant | Receptacle | |
TE Connectivity Raychem Cable Protection | Crimp | Panel Mount Snap-In | Polyamide (PA6) Nylon 6 Glass Filled | Latch Lock | 4 | 0.236 in | 6 mm | 140 °C | -55 °C | Contacts Not Included | Green | 1 | Tab | Glow Wire Compliant | Receptacle |
