STD03 Series

Catalog

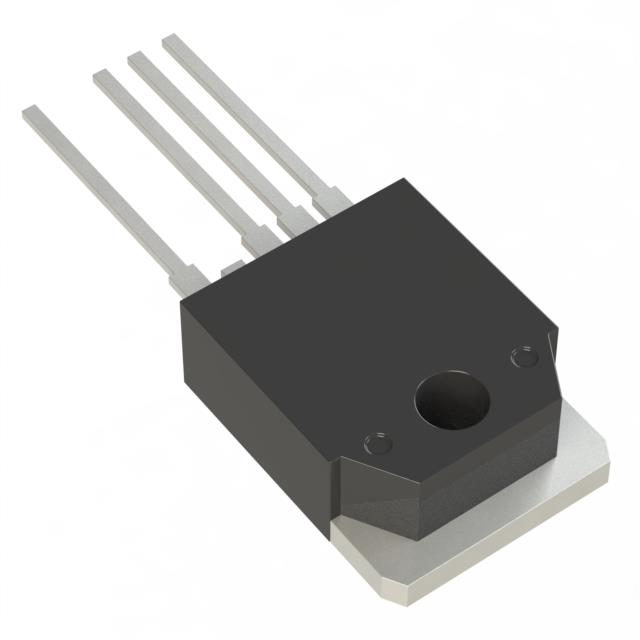

TRANS NPN DARL 160V 15A TO3P-5L

Part	Supplier Device Package	Mounting Type	Voltage - Collector Emitter Breakdown (Max)	Power - Max [Max]	Package / Case	Vce Saturation (Max) @ Ib, Ic	Operating Temperature	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector Cutoff (Max) [Max]	Transistor Type
Sanken Electric USA Inc. STD03N	TO-3P-5L	Through Hole	160 V	160 W	TO-3P-5	2 V	150 °C	15 A	5000	100 µA
Sanken Electric USA Inc. STD03P	TO-3P-5L	Through Hole	160 V	160 W	TO-3P-5	2 V	150 °C	15 A	5000	100 µA	PNP - Darlington
