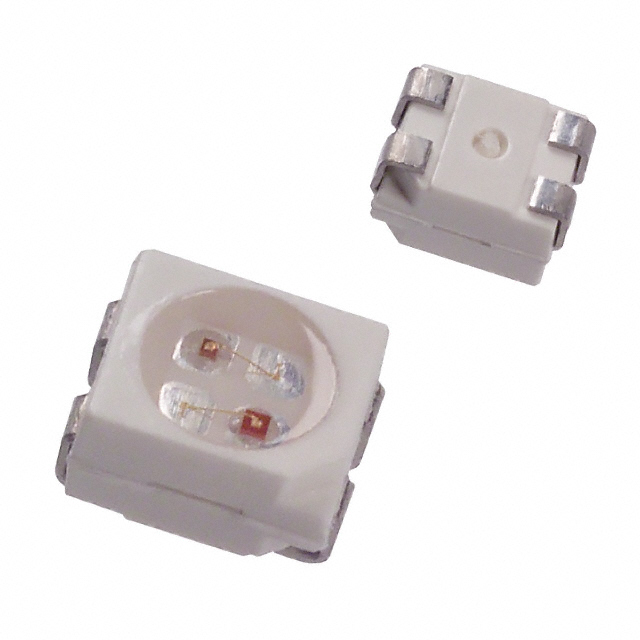

5977721 Series

Manufacturer: DIALIGHT

Catalog

LED GREEN/YELLOW CLEAR 1210 SMD

Part	Wavelength - Peak	Wavelength - Dominant	Lens Color	Voltage - Forward (Vf) (Typ)	Mounting Type	Supplier Device Package	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Lens Transparency	Current - Test	Millicandela Rating	Color	Height (Max) [Max] [z]	Package / Case	Configuration	Lens Size [x]	Lens Size [y]	Lens Size [diameter]	Millicandela Rating [custom]	Millicandela Rating [custom]
DIALIGHT 5977721507F	570 nm 585 nm	575 nm 589 nm	Colorless	2.1 V 2.2 V	Surface Mount	1210	100 °	3 mm	2.5 mm	Rectangle with Flat Top	Clear	20 mA 20 mA	10 mcd 21 mcd	Green Yellow	1.3 mm	4-SMD No Lead	Independent	2.3 mm	2.1 mm
DIALIGHT 5977721502F	570 nm 585 nm	575 nm 589 nm	Colorless	2.1 V 2.2 V	Surface Mount	1210	100 °	3 mm	2.5 mm	Rectangle with Flat Top	Clear	20 mA 20 mA	10 mcd 21 mcd	Green Yellow	1.3 mm	4-SMD No Lead	Independent	2.3 mm	2.1 mm
DIALIGHT 5977721801F					Surface Mount	4-PLCC		3.1 mm	2.8 mm						2.05 mm	4-PLCC
DIALIGHT 5977721802F					Surface Mount	4-PLCC		3.1 mm	2.8 mm						2.05 mm	4-PLCC
DIALIGHT 5977721202F	565 nm 585 nm	570 nm 590 nm	Colorless	1.8 V 2.1 V	Surface Mount	4-PLCC	120 °	3.1 mm	2.8 mm	Round with Flat Top	Clear	20 mA 20 mA		Green Yellow	2.05 mm	4-PLCC	Independent			2.39 mm	16 mcd	16 mcd
