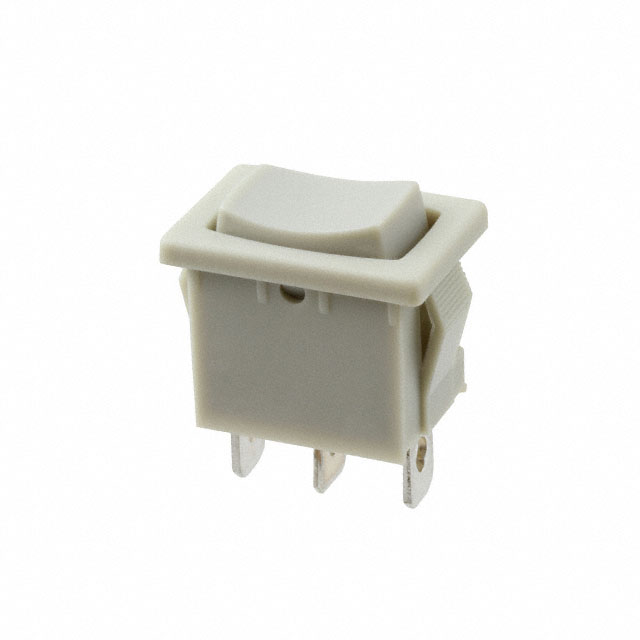

R1966IGR Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPDT 15A 125V
| Part | Electrical Life | Mechanical Life | Actuator Marking | Termination Style | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type | Voltage Rating - AC | Current Rating (Amps) | Actuator Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | 30000 Steps | No Marking | Quick Connect | SPDT | -30 ░C | 65 °C | 19.4 mm | 13 mm | Panel Mount Snap-In | 125 V | 15 A | Concave (Curved) | Mom-Off-Mom |
