PES.2M Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT MALE 19POS GOLD CRIMP
| Part | Insert Material | Shell Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Color | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Fastening Type | Mounting Feature | Termination | Shell Size - Insert | Ingress Protection | Primary Material | Number of Positions | Cable Opening | Cable Opening | Contact Finish - Mating | Shell Finish | Shielding | Applications | Current Rating (Amps) | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Polyetheretherketone (PEEK) | Brass | Receptacle Male Pins | 200 °C | -55 C | S | Silver | 39.4 µin | 1 µm | Threaded | Bulkhead - Front Side Nut | Crimp | 319 | IP68 - Dust Tight Waterproof | Metal | 19 | 13 mm | 0.512 in | Gold | Chrome | Shielded | Aerospace Automotive Aviation Military | 4 A | Panel Mount | Brass |

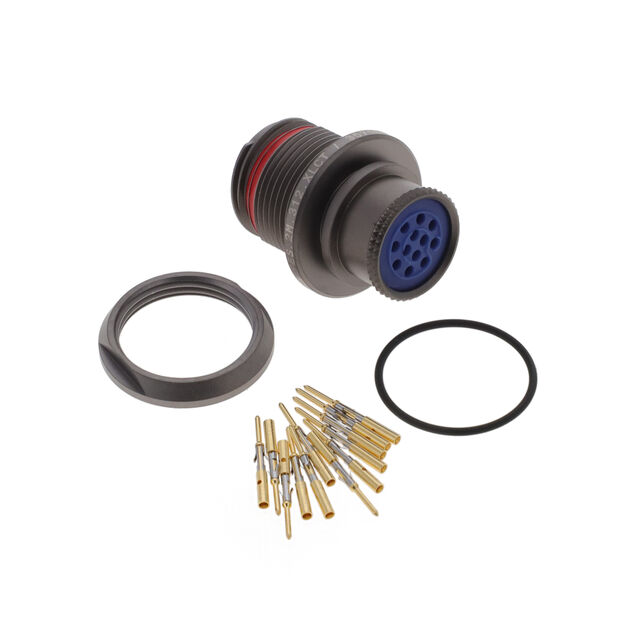

 LEMO | Polyetheretherketone (PEEK) | Aluminum Alloy | Receptacle Male Pins | 200 °C | -55 C | S | Gray | 39.4 µin | 1 µm | Threaded | Bulkhead - Front Side Nut | Crimp | 312 | IP68 - Dust Tight Waterproof | Metal | 12 | 13 mm | 0.512 in | Gold | Nickel | Shielded | Aerospace Automotive Aviation Military | 7 A | Panel Mount | Brass |
