SM1210 Series

Catalog

LED, SMD, 1210, BI-COLOR, ULTRA RED/ULTRA BLUE, (630NM / 468NM), (24MCD / 8.2MCD), WATER CLEAR LENS, 130 DEG VIEWING ANGLE / REE

Part	Supplier Device Package	Viewing Angle	Package / Case	Package / Case	Wavelength - Dominant	Lens Size [x]	Lens Size [y]	Lens Transparency	Voltage - Forward (Vf) (Typ)	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Lens Style	Wavelength - Peak	Color	Height (Max) [z]	Mounting Type	Configuration	Lens Color	Millicandela Rating	Wavelength - Dominant	Current - Test [custom]	Current - Test [custom]	Millicandela Rating	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test
Bivar Inc. SM1210BC-UR/UB	1210	130 °	1210	3225 Metric	470nm Blue 625nm Red	2.7 mm	2 mm	Clear	1.9 V 2.9 V	24 mcd	8.2 mcd	20mA Blue 20mA Red	Rectangle with Flat Top	468 nm 630 nm	Blue Red	1.1 mm	Surface Mount	Independent	Colorless
Bivar Inc. SM1210BC	1210	130 °	1210	3225 Metric		2.7 mm	2 mm	Clear	1.85 V 2 V 2.1 V 2.3 V				Rectangle with Flat Top	568 nm 655 nm 660 nm	Green Red	1.1 mm	Surface Mount	Independent	Colorless	15mcd Green 15mcd Red	570 nm 640 nm 643 nm	20 mA	20 mA	11.5 mcd 22.5 mcd
Bivar Inc. SM1210RGY	1210	140 °	1210	3225 Metric		2.7 mm	2 mm	Clear					Rectangle with Flat Top	568 nm 585 nm 635 nm	Green Red Yellow	1.1 mm	Surface Mount		Colorless					10 mcd 15 mcd 16 mcd	2.1 V	2.1 V	1.9 V	20 mA 20 mA 20 mA

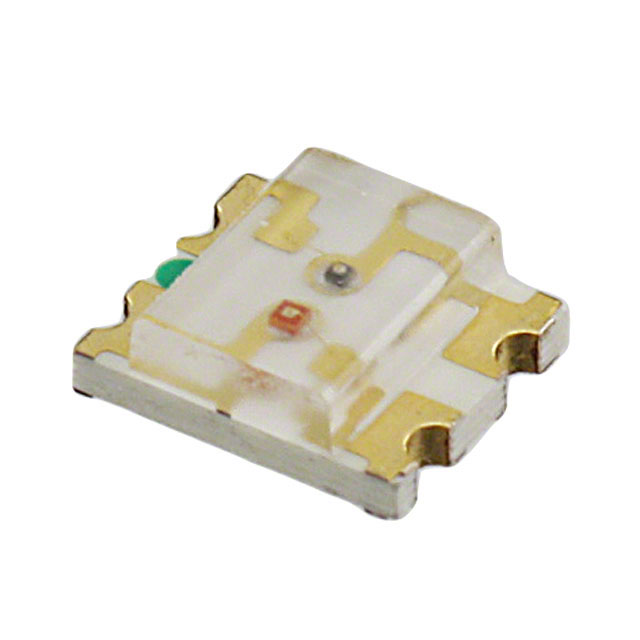

Bivar Inc. SM1210BC-SR/HG	1210	130 °	1210	3225 Metric		2.7 mm	2 mm	Clear	1.9 V 2 V 2.1 V				Rectangle with Flat Top	563 nm 568 nm 655 nm 660 nm	Green Red	1.1 mm	Surface Mount	Independent	Colorless		565 nm 570 nm 640 nm	20 mA	20 mA	10 mcd 11.5 mcd 22.5 mcd 28 mcd
