EASV3015 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED GREEN/RED/YL CLR 4SMD R/A

Part	Lens Color	Configuration	Lens Size [y]	Lens Size [x]	Height (Max) [z]	Lens Transparency	Supplier Device Package	Color	Viewing Angle	Current - Test	Voltage - Forward (Vf) (Typ)	Mounting Type	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Package / Case	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Height (Max) [Max] [z]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test	Millicandela Rating
Everlight Electronics Co Ltd EASV3015RGYA0	Clear Colorless	Common Anode	1 mm	2 mm	1.1 mm	Clear	4-SMD	Green Red Yellow	100 °	20 mA	2 V 2 V 3.3 V	Right Angle Surface Mount	518 nm 591 nm 632 nm	126 mcd	250 mcd	126 mcd	4-SMD No Lead	525nm Green 589nm Yellow 624nm Red	1.6 mm	3 mm	Rectangle with Domed Top

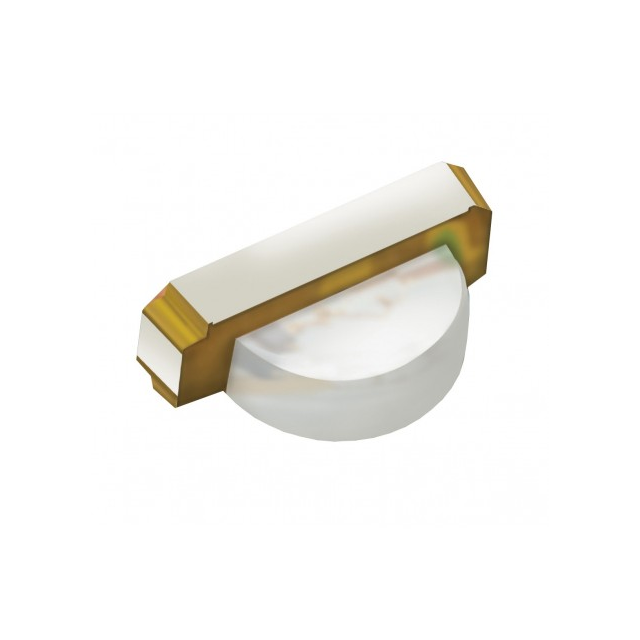

Everlight Electronics Co Ltd EASV3015AGBA0	Colorless	Common Anode	1 mm	2 mm	1.1 mm	Clear	4-SMD	Blue Green Orange	100 °	20 mA 20 mA 20 mA	2 V 3.3 V 3.3 V	Right Angle Surface Mount	468 nm 518 nm 611 nm		210 mcd		4-SMD No Lead		1.5 mm	3 mm	Rectangle with Domed Top	140 mcd	65 mcd	470 nm 525 nm 605 nm

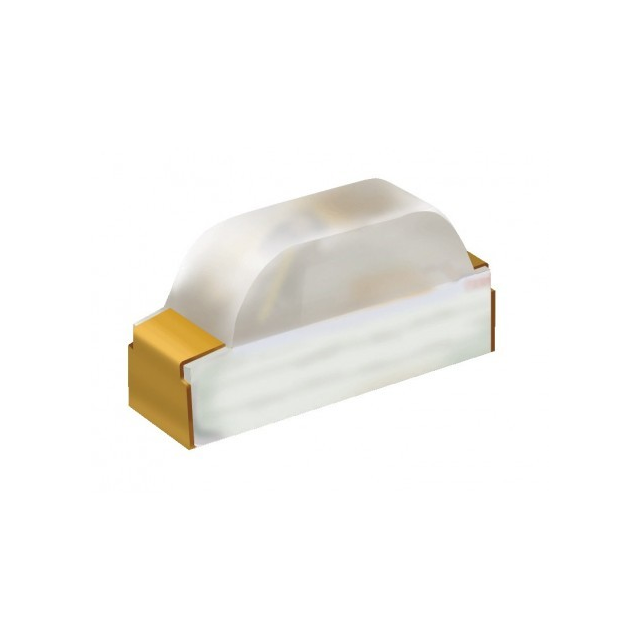

Everlight Electronics Co Ltd EASV3015ICRGBA0	White					Diffused	SMD	Blue Green Red	130 °			Surface Mount	468 nm 518 nm 632 nm		92 mcd	47 mcd			1 mm	3 mm	Rectangle with Domed Top		37 mcd	470 nm 533 nm 624 nm	5 V	5 V	5 V	1.6 mm	5 mA	5 mA	5 mA

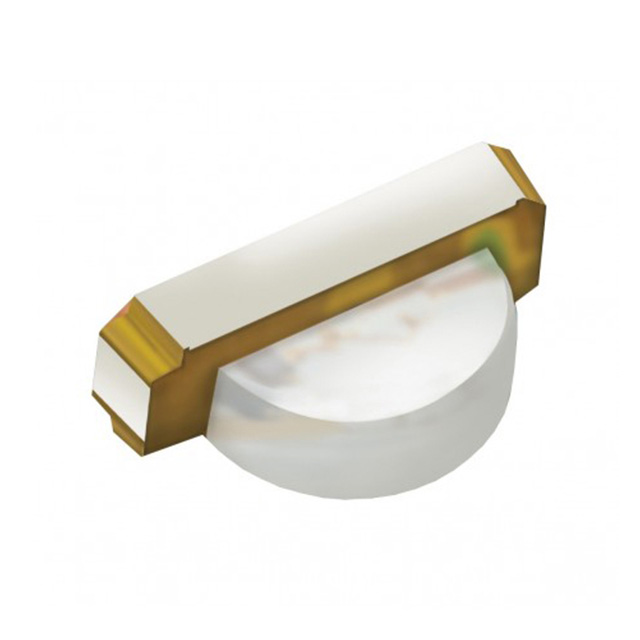

Everlight Electronics Co Ltd EASV3015RGBA0	Colorless	Common Anode	1 mm	2 mm	1.1 mm	Clear	4-SMD	Blue Green Red	100 °		2 V 3.3 V 3.3 V	Right Angle Surface Mount	468 nm 518 nm 632 nm		180 mcd	90 mcd	4-SMD No Lead		1.5 mm	3 mm	Rectangle with Domed Top		50 mcd	470 nm 525 nm 624 nm								20mA Blue 20mA Green 20mA Red
Everlight Electronics Co Ltd EASV3015WA1	Yellow	Standard	1 mm	2 mm	1.1 mm	Diffused	4-SMD	White	110 °	20 mA	3.3 V	Right Angle Surface Mount					4-SMD No Lead		1.5 mm	3 mm	Rectangle with Domed Top												199 mcd
Everlight Electronics Co Ltd EASV3015WA0	Yellow	Standard	1 mm	2 mm	1.1 mm	Diffused	4-SMD	White	110 °	5 mA	3.05 V	Right Angle Surface Mount					4-SMD No Lead		1.5 mm	3 mm	Rectangle with Domed Top												79 mcd
