T41430 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

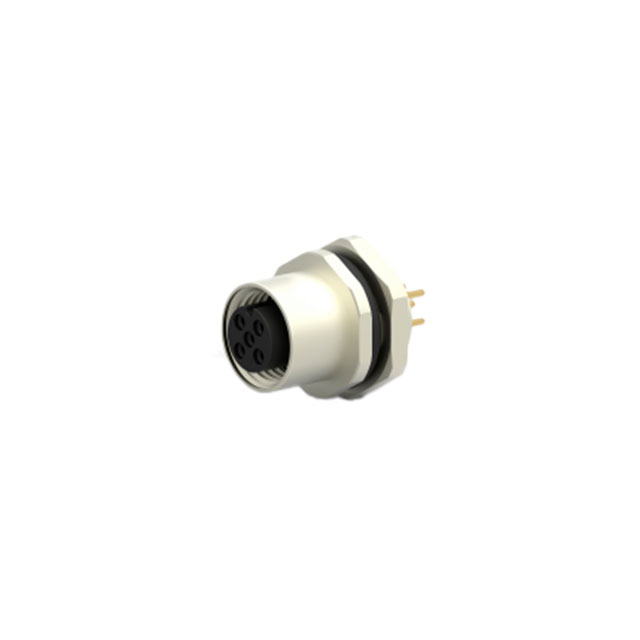

M12,FRONT MOUNTING,FEMALE,A CODE,5P
| Part | Insert Material | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Shielding | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Orientation | Shell Finish | Shell Size - Insert | Number of Positions | Mounting Feature | Ingress Protection | Voltage Rating | Primary Material | Connector Type | Color | Current Rating (Amps) | Mounting Type | Shell Material | Material Flammability Rating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Nylon 6/6 Polyamide (PA66) | Copper Alloy | 0.076 µm | 3 µin | Industrial | Unshielded | Solder | 85 °C | -40 C | Threaded | A | Nickel | M12-5 | 5 | Bulkhead - Rear Side Nut | IP67 - Dust Tight Waterproof | 60 VDC | Metal | Plug Female Sockets | Silver | 4 A | Panel Mount Through Hole | Copper Alloy | UL94 V-0 | Gold |
 TE Connectivity AMP Connectors | Nylon 6/6 Polyamide (PA66) | Copper Alloy | 0.076 µm | 3 µin | Industrial | Unshielded | Solder | 85 °C | -40 C | Threaded | A | Nickel | M12-2 | 2 | Bulkhead - Rear Side Nut | IP67 - Dust Tight Waterproof | 250 V | Metal | Plug Female Sockets | Silver | 4 A | Panel Mount Through Hole | Copper Alloy | UL94 V-0 | Gold |
