FASTON 090 Series

Catalog

QUICK DISCONNECT TERMINAL, FASTON 090 SERIES, FEMALE QUICK DISCONNECT, 2.36MM X 0.25MM

Part	Terminal Type	Termination	Length - Overall	Length - Overall	Mounting Type	Tab Width [y]	Tab Width [y]	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Contact Finish	Tab Thickness	Tab Thickness	Tab Length	Tab Length	Gender	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]

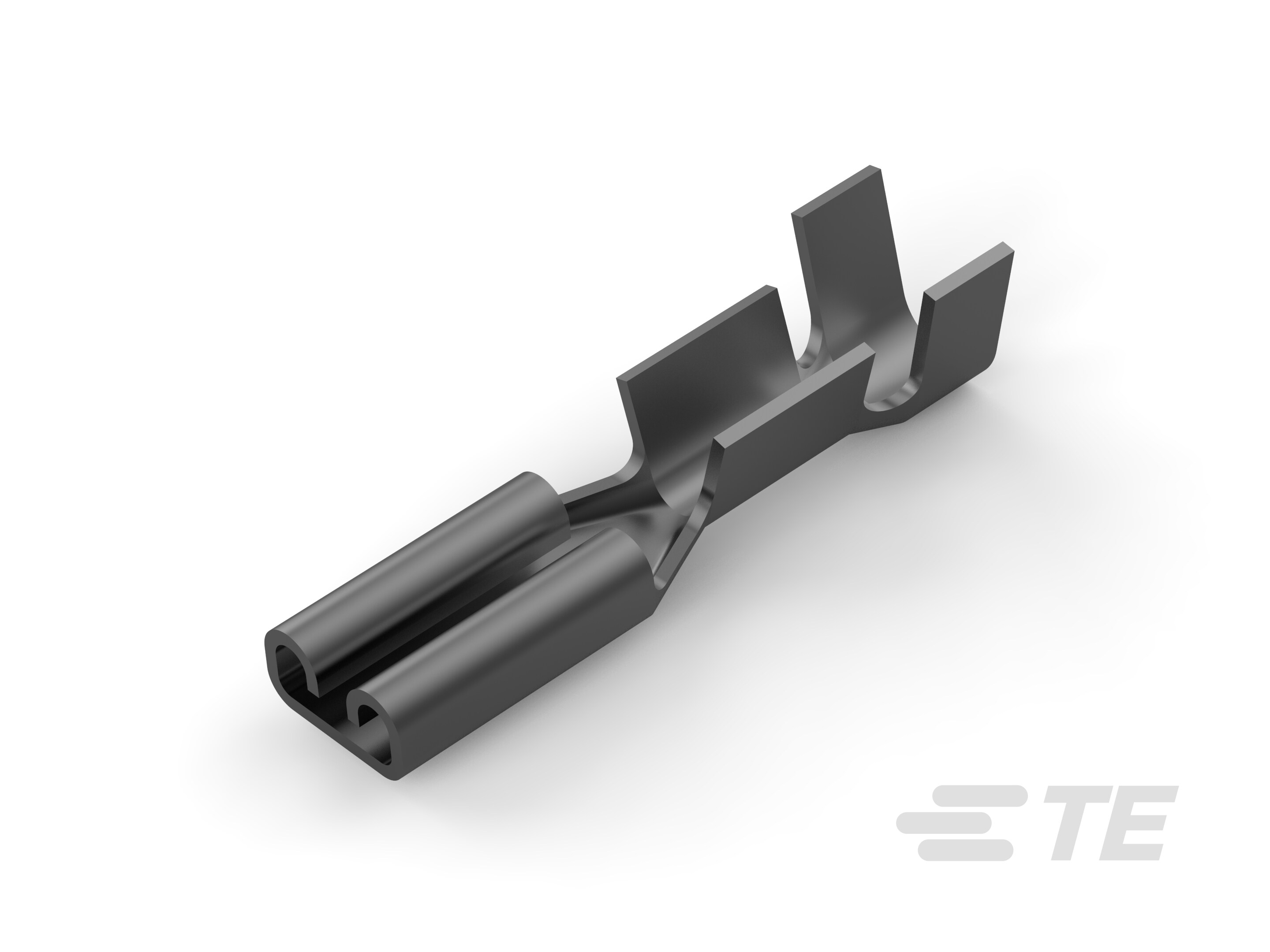

TE Connectivity AMP Connectors 63391-2	Standard	Crimp	12.19 mm	0.48 in	Free Hanging (In-Line)	2.36 mm	0.093 in	Non-Insulated	22 AWG	17.5 AWG	Brass	Tin	0.01 in	0.25 mm	0.19 in	4.83 mm	Female
TE Connectivity AMP Connectors 63391-1	Standard	Crimp	12.19 mm	0.48 in	Free Hanging (In-Line)	2.36 mm	0.093 in	Non-Insulated	22 AWG	17.5 AWG	Brass	Tin	0.01 in	0.25 mm	0.19 in	4.83 mm	Female	0.085 in	0.05 "	2.16 mm	1.27 mm
