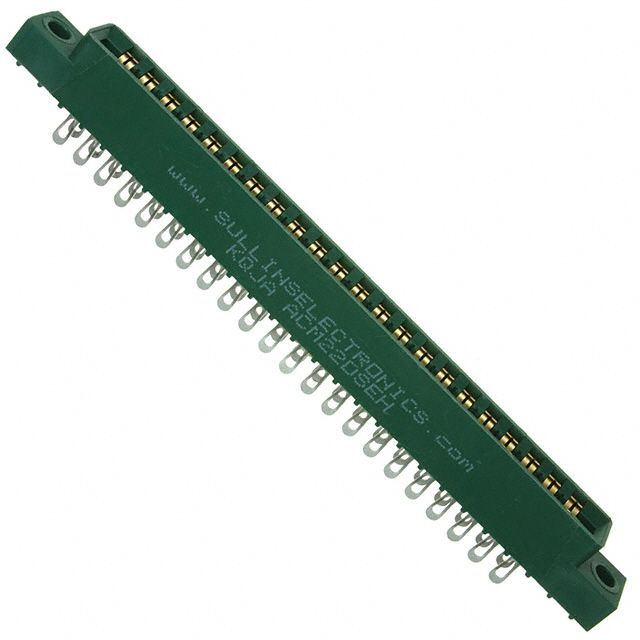

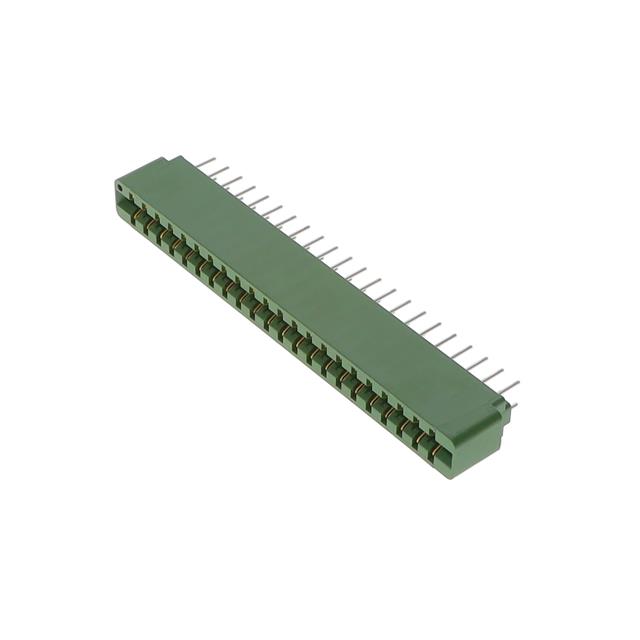

ACM22 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 44POS 0.156
| Part | Material - Insulation | Read Out | Contact Material | Mounting Type | Number of Rows [custom] | Color | Pitch | Pitch | Flange Feature | Gender | Contact Finish Thickness | Contact Finish Thickness | Card Type | Card Thickness | Card Thickness | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row | Contact Type | Termination | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Beryllium Copper | Right Angle Through Hole | 2 | Green | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 1.57 mm | 0.062 in | Gold | 150 °C | -65 ░C | 22 | Loop Bellows | Solder | 44 | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Beryllium Copper | Right Angle Through Hole | 2 | Green | 3.96 mm | 0.156 in | Female | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 1.57 mm | 0.062 in | Gold | 150 °C | -65 ░C | 22 | Loop Bellows | Solder | 44 | ||||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Beryllium Copper | Panel Mount | 2 | Green | 3.96 mm | 0.156 in | Female | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 1.57 mm | 0.062 in | Gold | 150 °C | -65 ░C | 22 | Full Bellows | Solder Eyelet(s) | 44 | 0.125 " | 3.18 mm | ||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Beryllium Copper | Through Hole | 2 | Green | 3.96 mm | 0.156 in | Female | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 1.57 mm | 0.062 in | Gold | 150 °C | -65 ░C | 22 | Full Bellows | Solder | 44 | 0.125 " | 3.18 mm | ||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Beryllium Copper | Through Hole | 2 | Green | 3.96 mm | 0.156 in | Female | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 1.57 mm | 0.062 in | Gold | 150 °C | -65 ░C | 22 | Loop Bellows | Wire Wrap | 44 | ||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Beryllium Copper | Right Angle Through Hole | 2 | Green | 3.96 mm | 0.156 in | 4-40 Threaded Insert Top Mount Opening | Female | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 1.57 mm | 0.062 in | Gold | 150 °C | -65 ░C | 22 | Loop Bellows | Solder | 44 | |||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Beryllium Copper | Through Hole | 2 | 3.96 mm | 0.156 in | Female | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 1.57 mm | 0.062 in | Gold | 150 °C | -65 ░C | 22 | Loop Bellows | Solder | 44 | |||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Beryllium Copper | Board Edge Straddle Mount | 2 | Green | 3.96 mm | 0.156 in | Floating Bobbin Top Mount Opening | Female | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 1.57 mm | 0.062 in | Gold | 150 °C | -65 ░C | 22 | Full Bellows | Solder Eyelet(s) | 44 | 0.116 " | 2.95 mm | Card Extender |
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Beryllium Copper | Board Edge Straddle Mount | 2 | 3.96 mm | 0.156 in | Side Mount Opening Unthreaded | Female | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 1.57 mm | 0.062 in | Gold | 150 °C | -65 ░C | 22 | Loop Bellows | Solder | 44 | 0.125 " | 3.18 mm | Card Extender | |
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Beryllium Copper | Board Edge Straddle Mount | 2 | Green | 3.96 mm | 0.156 in | 4-40 Threaded Insert Top Mount Opening | Female | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 1.57 mm | 0.062 in | Gold | 150 °C | -65 ░C | 22 | Full Bellows | Solder | 44 | Card Extender |
