ME10A1203 Series

Catalog

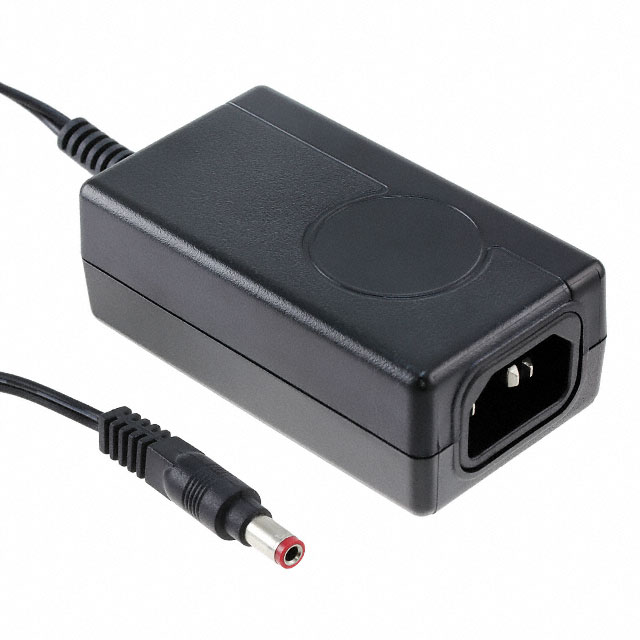

AC/DC DESKTOP ADAPTER 12V 12W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Current - Output (Max) [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Form	Polarization	Voltage - Output	Region Utilized	Efficiency	Input Type	Approval Agency	Cord Length	Cord Length	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]	Applications
SL POWER / Advanced Energy ME10A1203N01	31 mm	47 mm	3.31 "	1.22 in	1.85 in	84 mm	12 W	1 A	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class II)	Positive Center	12 V	International	Level VI	Cord (Sold Separately)	CE cURus DEMKO	1.5 m	59 in	IEC 320-C8	-20 ░C	50 °C	100 mW	264 VAC	90 VAC	Medical
SL POWER / Advanced Energy ME10A1203F01	31 mm	47 mm	3.31 "	1.22 in	1.85 in	84 mm	12 W	1 A	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	Positive Center	12 V	International	Level VI	Cord (Sold Separately)	CE cURus DEMKO	1.5 m	59 in	IEC 320-C14	-20 ░C	50 °C	100 mW	264 VAC	90 VAC	Medical
SL POWER / Advanced Energy ME10A1203B01	38 mm	47 mm	3.31 "	1.5 in	1.85 in	84 mm	12 W	1 A	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Wall Mount	Positive Center	12 V	North America	Level VI	Fixed Blade Multi-Blade	CE cURus DEMKO	1.5 m	59 in	NEMA 1-15P Multi-Blade	-20 ░C	50 °C	100 mW	264 VAC	90 VAC	Medical
