315-016 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 16POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Read Out	Contact Type	Contact Material	Number of Rows [custom]	Number of Positions	Gender	Color	Card Type	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Number of Positions/Bay/Row	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features

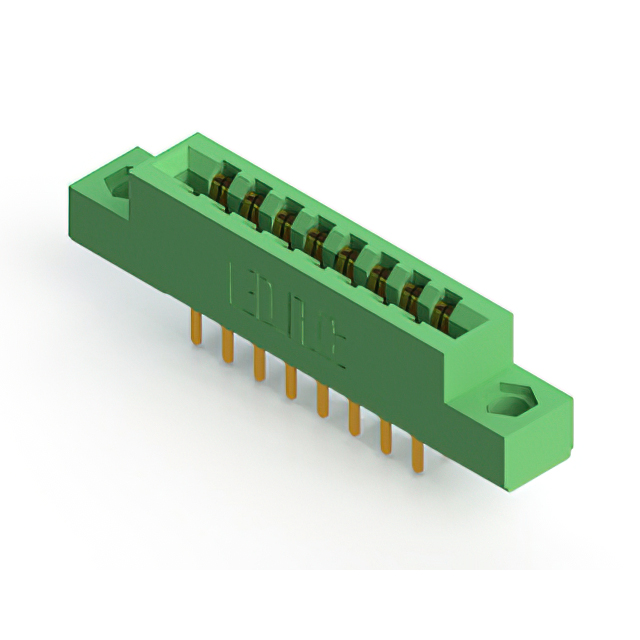

EDAC Inc. 315-016-520-204	2	Polyester Thermoplastic	Dual	Semi Bellows	Copper Alloy	2	16	Female	Green	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	-40 C	105 ░C	3.96 mm	0.156 in	8	Gold	Solder	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm

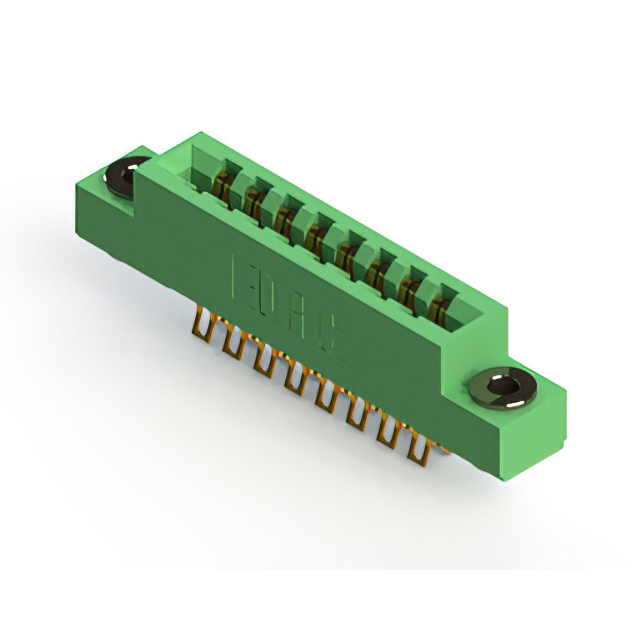

EDAC Inc. 315-016-555-203	2	Polyester Thermoplastic	Dual	Semi Bellows	Copper Alloy	2	16	Female	Green	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	-40 C	105 ░C	3.96 mm	0.156 in	8	Gold	Solder	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Card Extender

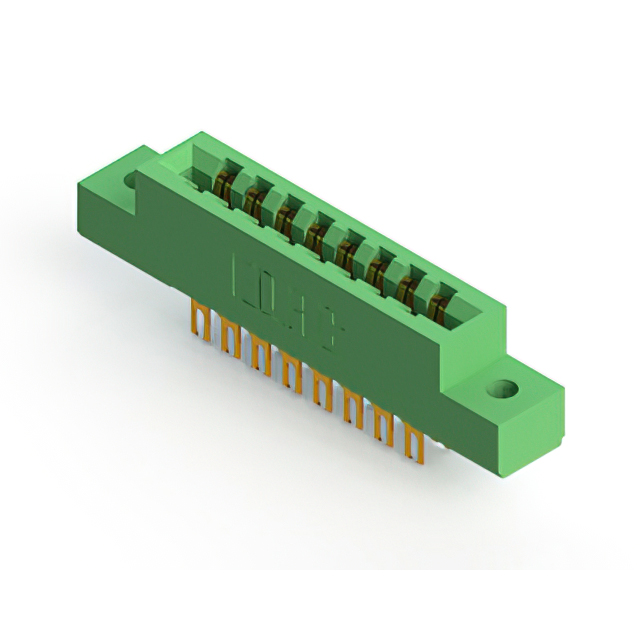

EDAC Inc. 315-016-500-202	2	Polyester Thermoplastic	Dual	Semi Bellows	Copper Alloy	2	16	Female	Green	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	-40 C	105 ░C	3.96 mm	0.156 in	8	Gold	Solder Eyelet(s)	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm

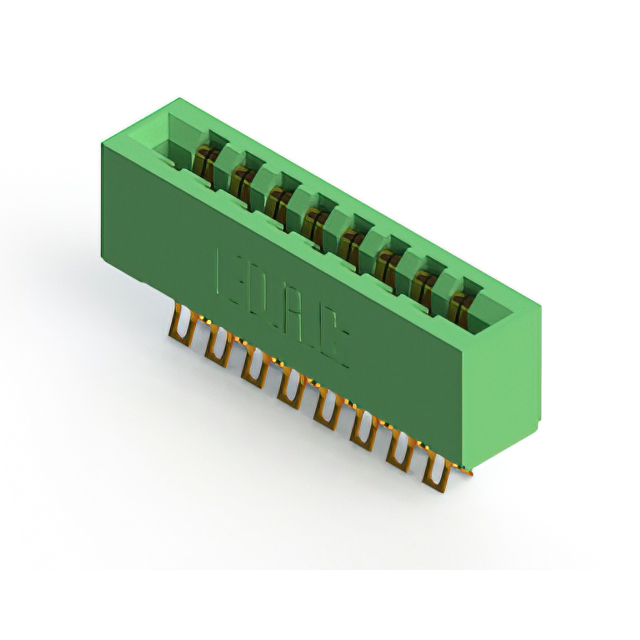

EDAC Inc. 315-016-555-201	2	Polyester Thermoplastic	Dual	Semi Bellows	Copper Alloy	2	16	Female	Green	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	-40 C	105 ░C	3.96 mm	0.156 in	8	Gold	Solder	0.25 Ám	10 Áin				Card Extender

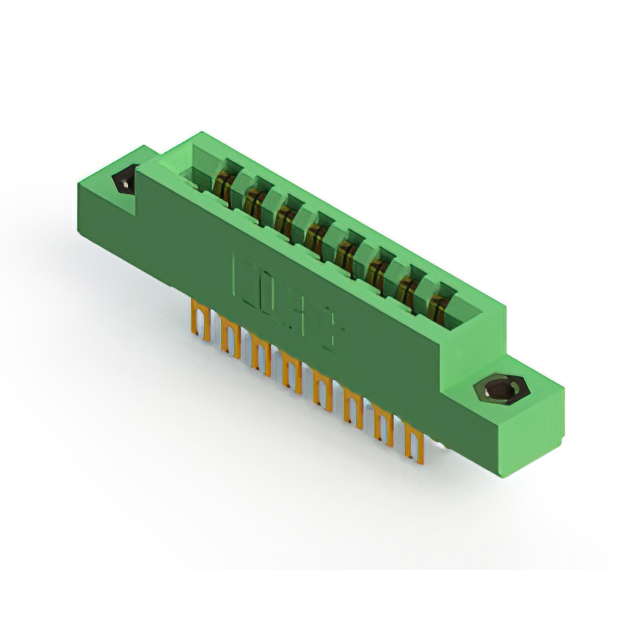

EDAC Inc. 315-016-500-207	2	Polyester Thermoplastic	Dual	Semi Bellows	Copper Alloy	2	16	Female	Green	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	-40 C	105 ░C	3.96 mm	0.156 in	8	Gold	Solder Eyelet(s)	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening

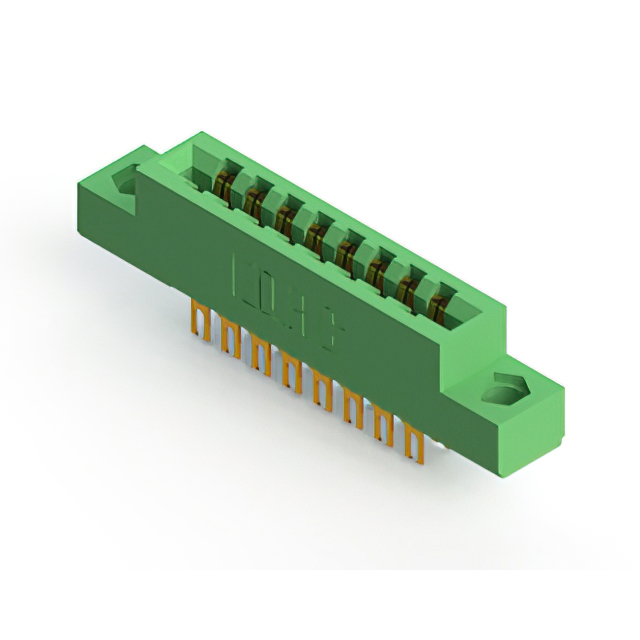

EDAC Inc. 315-016-500-204	2	Polyester Thermoplastic	Dual	Semi Bellows	Copper Alloy	2	16	Female	Green	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount	-40 C	105 ░C	3.96 mm	0.156 in	8	Gold	Solder Eyelet(s)	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm

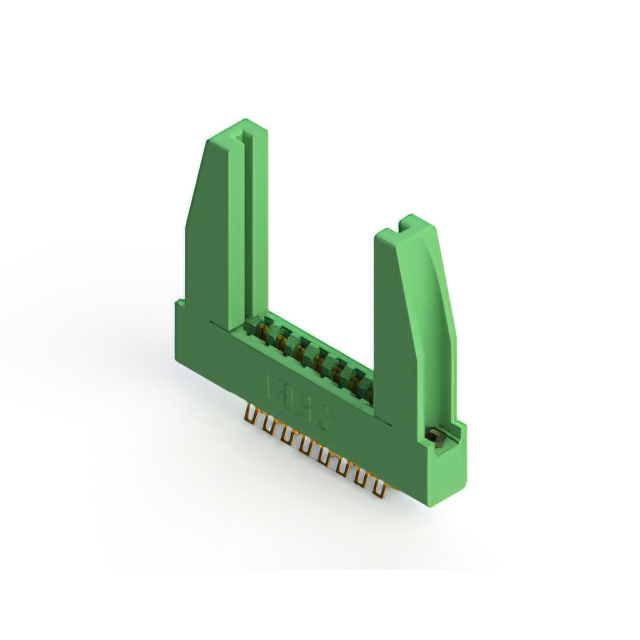

EDAC Inc. 315-016-555-278	2	Polyester Thermoplastic	Dual	Semi Bellows	Copper Alloy	2	16	Female	Green	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	-40 C	105 ░C	3.96 mm	0.156 in	8	Gold	Solder	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening			Card Extender Card Guides

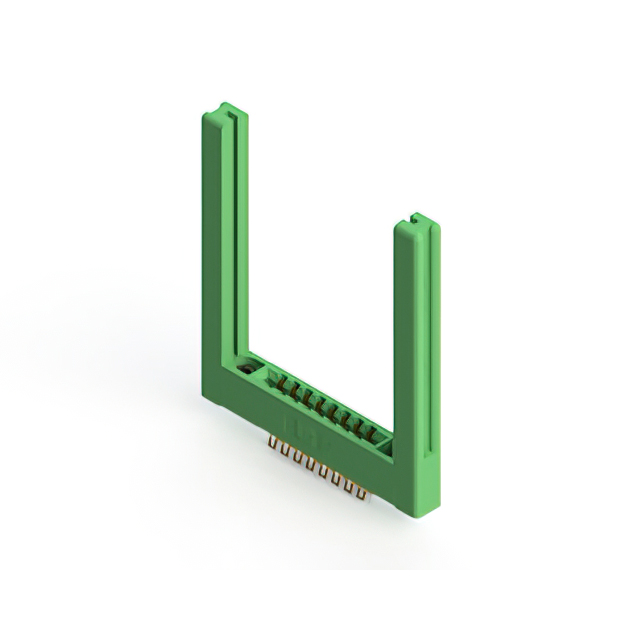

EDAC Inc. 315-016-555-258	2	Polyester Thermoplastic	Dual	Semi Bellows	Copper Alloy	2	16	Female	Green	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	-40 C	105 ░C	3.96 mm	0.156 in	8	Gold	Solder	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening			Card Extender Card Guides

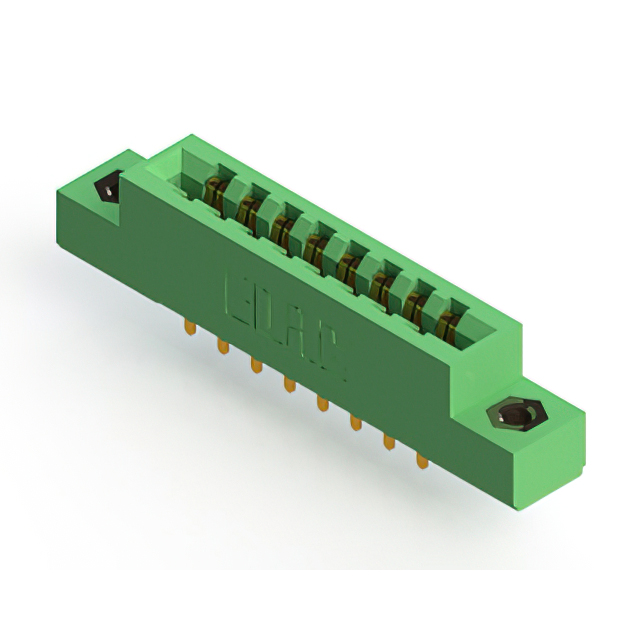

EDAC Inc. 315-016-521-207	2	Polyester Thermoplastic	Dual	Semi Bellows	Copper Alloy	2	16	Female	Green	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Panel Mount Through Hole	-40 C	105 ░C	3.96 mm	0.156 in	8	Gold	Solder	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 315-016-555-268	2	Polyester Thermoplastic	Dual	Semi Bellows	Copper Alloy	2	16	Female	Green	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	-40 C	105 ░C	3.96 mm	0.156 in	8	Gold	Solder	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening			Card Extender Card Guides
