338314 Series

Catalog

15POS.HD20 REC.ASSY

Part	Shell Size, Connector Layout	Current Rating (Amps)	Termination	Material Flammability Rating	Mounting Type	Number of Positions	Number of Rows	Dielectric Material	Flange Feature	Connector Type	Contact Type	Color	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Connector Style

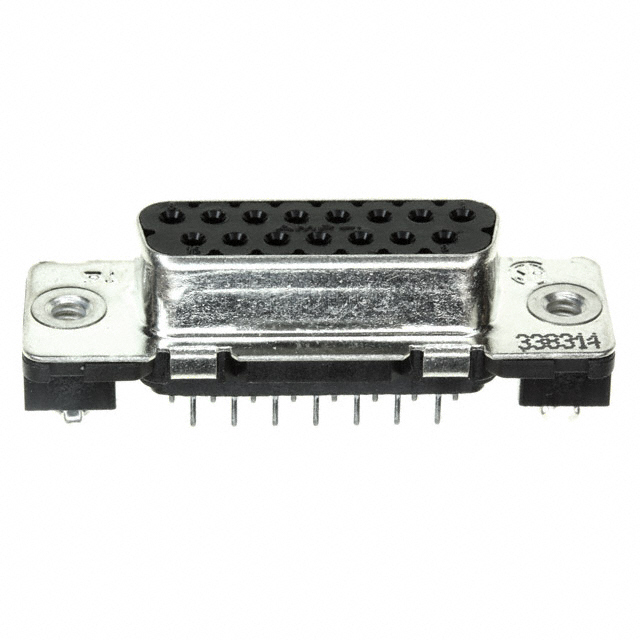

TE Connectivity Raychem Cable Protection 1-338314-2	2	6 A	Solder	UL94 V-0	Through Hole	15	2	Polyester Glass Filled	Housing/Shell (4-40)	Receptacle Female Sockets	Signal	Black	Gold	105 ░C	-55 °C	Phosphor Bronze	D-Sub

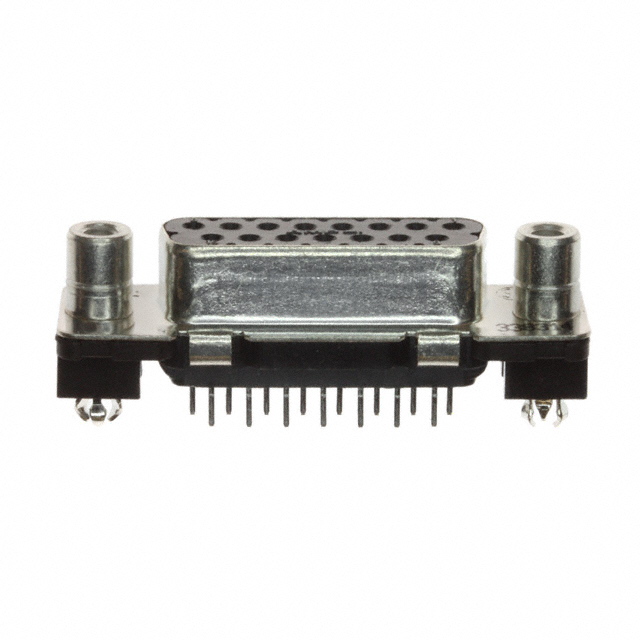

TE Connectivity Raychem Cable Protection 3-338314-2	2	6 A	Solder	UL94 V-0	Through Hole	15	2	Polyester Glass Filled	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	Signal	Black	Gold	105 ░C	-55 °C	Phosphor Bronze	D-Sub
TE Connectivity Raychem Cable Protection 6-338314-2	2	6 A	Solder	UL94 V-0	Through Hole	15	2	Polyester Glass Filled	Housing/Shell (4-40)	Receptacle Female Sockets	Signal	Black	Gold	105 ░C	-55 °C	Phosphor Bronze	D-Sub
