414/2 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

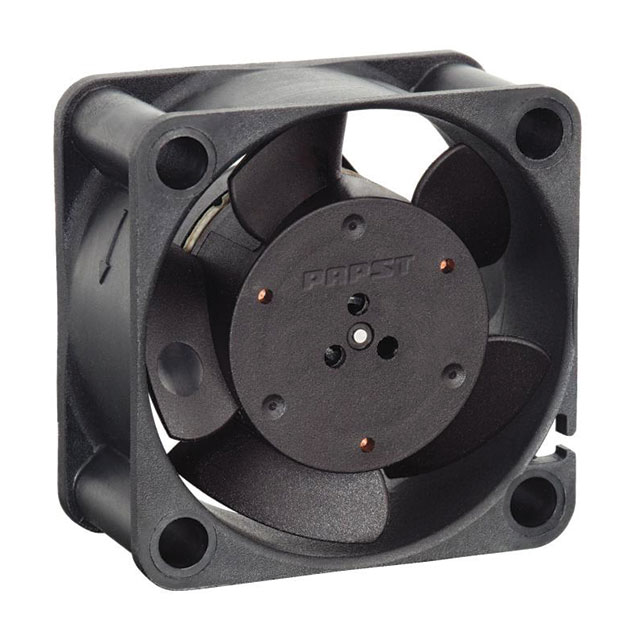

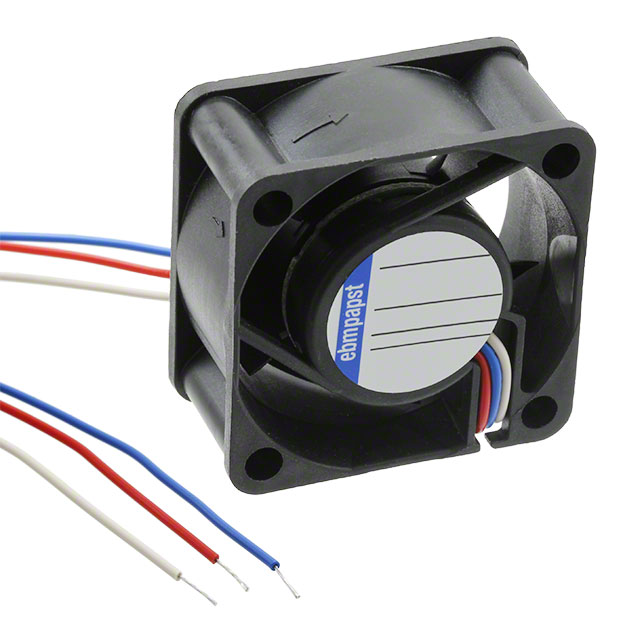

FAN AXIAL 40X20MM 24VDC WIRE
| Part | Air Flow | Air Flow | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Blade | Termination | Bearing Type | Voltage - Rated | Approval Agency | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Features | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Noise | Width [y] | RPM | Fan Type | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 7.9 CFM | 0.221 m³/min | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 26.5 VDC | 20 VDC | Varies Based on Temperature | Polyamide (PA) Nylon Fiberglass Reinforced | 3 Wire Leads | Sintec | 24 VDC | CSA UL VDE | 60 °C | 60 °C | -4 °F | -20 ░C | Speed Sensor (Tach) | 40 mm | 40 mm | 1.7 W | 29 dB(A) | 20 mm | 8100 RPM | Tubeaxial | 27.22 g | 0.06 lb |
