745-022 Series

Manufacturer: EDAC Inc.

Catalog

745 SERIES ULTRA-MATE CARD EDGE

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Number of Positions	Contact Type	Gender	Color	Read Out	Contact Finish	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Card Type	Contact Material	Termination	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Number of Rows

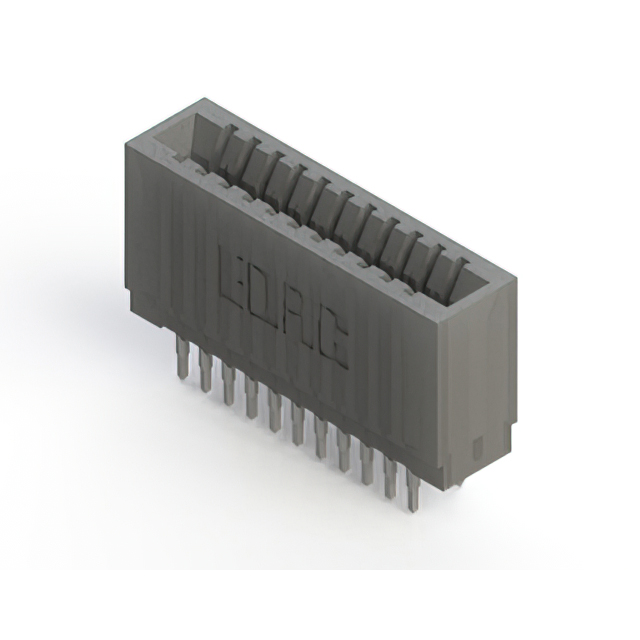

EDAC Inc. 745-022-520-201	Polyester Thermoplastic	2	2	22	Cantilever	Female	Black	Dual	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Non Specified - Dual Edge	Copper Alloy	Press-Fit	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-022-540-101	Polyester Thermoplastic			22	Cantilever	Female	Black	Single	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	22	Non Specified - Single Edge	Copper Alloy	Press-Fit Wire Wrap	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C	1	1

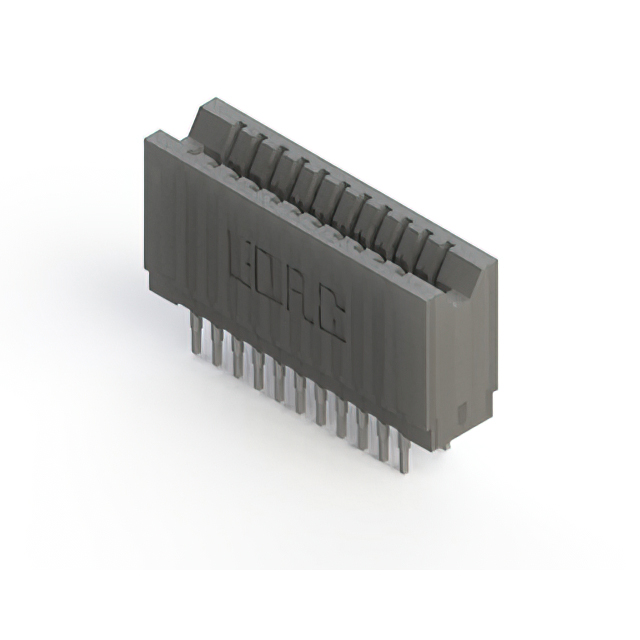

EDAC Inc. 745-022-522-206	Polyester Thermoplastic	2	2	22	Cantilever	Female	Black	Dual	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Non Specified - Dual Edge	Copper Alloy	Press-Fit	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C

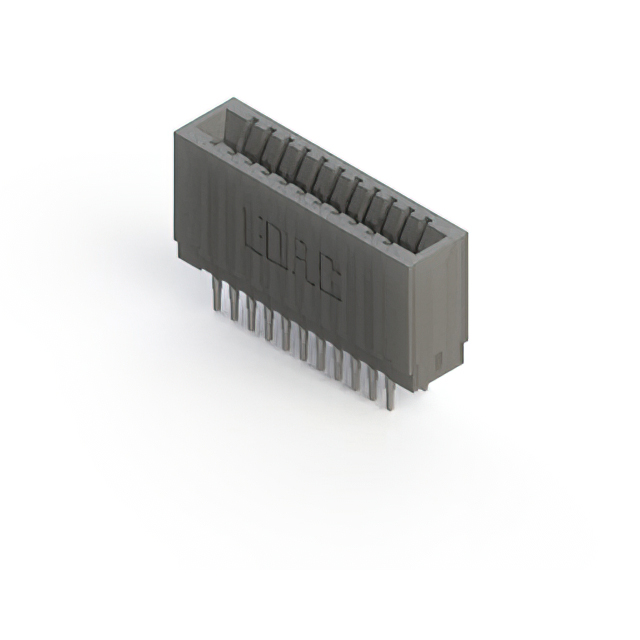

EDAC Inc. 745-022-541-201	Polyester Thermoplastic	2	2	22	Cantilever	Female	Black	Dual	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Non Specified - Dual Edge	Copper Alloy	Press-Fit Wire Wrap	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C

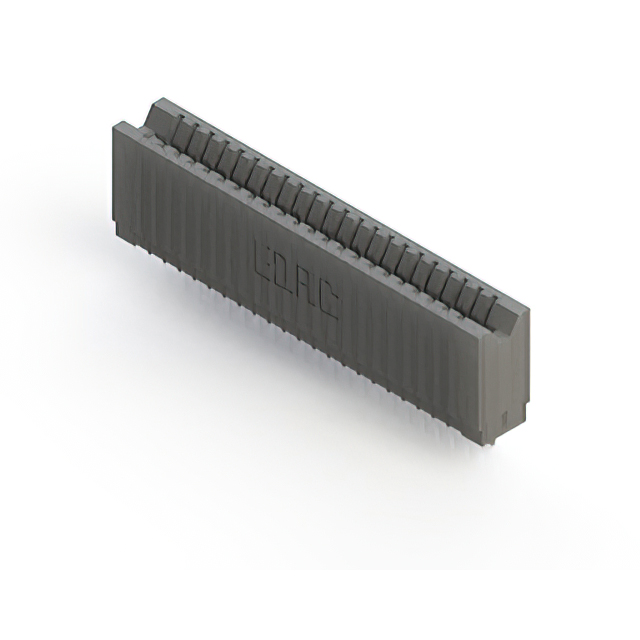

EDAC Inc. 745-022-540-106	Polyester Thermoplastic			22	Cantilever	Female	Black	Single	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	22	Non Specified - Single Edge	Copper Alloy	Press-Fit Wire Wrap	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C	1	1
EDAC Inc. 745-022-540-206	Polyester Thermoplastic	2	2	22	Cantilever	Female	Black	Dual	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Non Specified - Dual Edge	Copper Alloy	Press-Fit Wire Wrap	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C
EDAC Inc. 745-022-541-206	Polyester Thermoplastic	2	2	22	Cantilever	Female	Black	Dual	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Non Specified - Dual Edge	Copper Alloy	Press-Fit Wire Wrap	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C

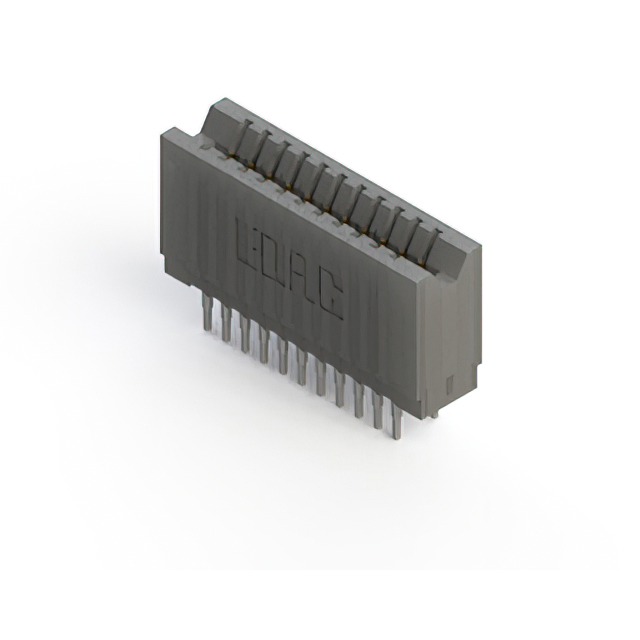

EDAC Inc. 745-022-545-206	Polyester Thermoplastic	2	2	22	Cantilever	Female	Black	Dual	Gold	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Non Specified - Dual Edge	Copper Alloy	Press-Fit	0.1 "	2.54 mm	30 Áin	0.76 Ám	-40 C	105 ░C
