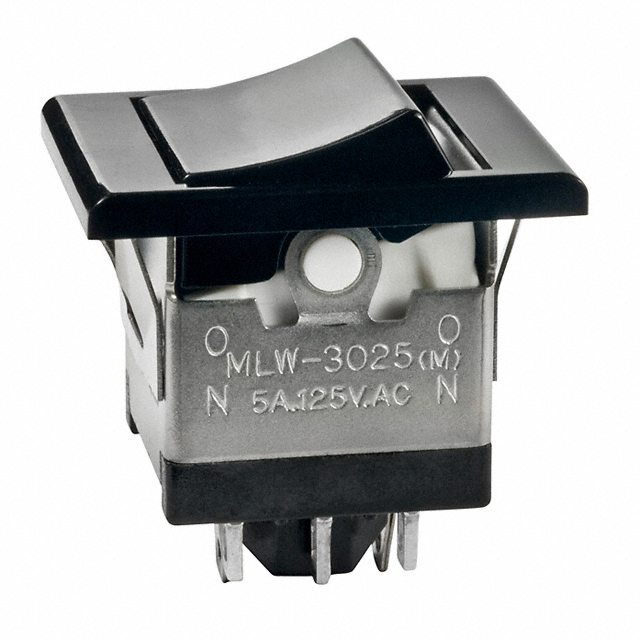

MLW3025 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON
| Part | Mechanical Life | Electrical Life | Current Rating (Amps) | Termination Style | Voltage Rating - AC | Switch Function | Approval Agency | Actuator Marking | Mounting Type | Features | Color - Actuator/Cap | Circuit | Actuator Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | ||||||||||||||||||
 NKK Switches | 30000 Steps | 10000 Cycles | 3 A 5 A | Solder Lug | 125 V | On-Mom | UL | No Marking | Panel Mount Snap-In | Epoxy Sealed Terminals | Black | DPDT | Concave (Curved) | 16.7 mm | 18.7 mm | 30 V | 50 °C | -10 °C |
 NKK Switches | ||||||||||||||||||
NKK Switches | 30000 Steps | 10000 Cycles | 3 A 5 A | Solder Lug | 125 V | On-Mom | UL | No Marking | Panel Mount Snap-In | Epoxy Sealed Terminals | White | DPDT | Concave (Curved) | 16.7 mm | 18.7 mm | 30 V | 50 °C | -10 °C |
