DRD1204 Series

Catalog

LED RED/YLW-GRN CLEAR SMD

Part	Configuration	Lens Width	Lens Length	Wavelength - Dominant Color	Wavelength - Dominant (Red)	Wavelength - Dominant (Yellow-Green)	Wavelength - Dominant (Yellow-Green) (Min)	Wavelength - Dominant (Red) (Min)	Wavelength - Dominant (Red) (Max)	Wavelength - Dominant (Yellow-Green) (Max)	Current - Test (Red)	Current - Test Colors	Current - Test	Color	Mounting Type	Lens Color	Voltage - Forward (Vf) (Typ) (Value 2)	Voltage - Forward (Vf) (Typ) (Value 1)	Package / Case	Millicandela Rating Colors	Millicandela Rating (Red)	Lens Transparency	Wavelength - Peak Colors	Wavelength - Peak (Yellow-Green)	Wavelength - Peak (Red)	Size / Dimension Length	Size / Dimension Width	Lens Style	Height (Max)

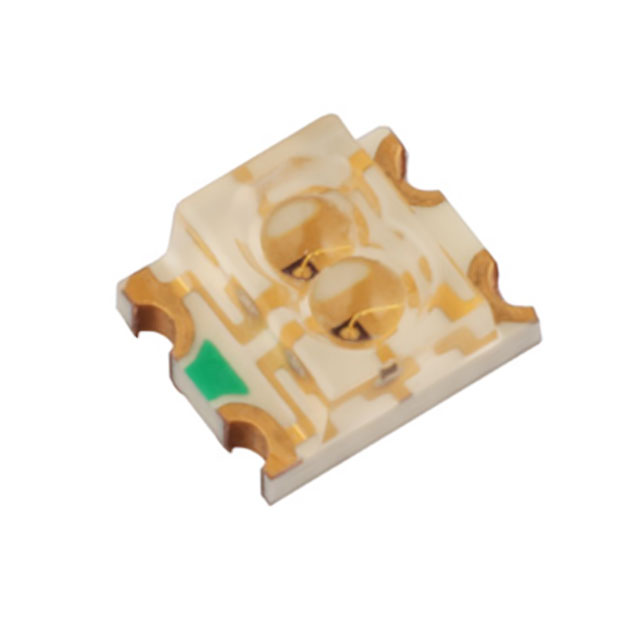

Stanley Electric Co DRD1204W-TR	Independent	2 mm	2.5 mm	Red Yellow-Green	626 nm	572 nm	572 nm	626 nm	626 nm	572 nm	20 mA	Red Yellow-Green	20 mA	Red Yellow-Green	Surface Mount	Colorless	2 V	2 V	1208 (3020 Metric)	Red Yellow-Green	220 mcd	Clear	Red Yellow-Green	575 nm	635 nm	3 mm	2.5 mm	Flat Top Rectangle	1.9 mm
