H2179 Series
Manufacturer: Harwin Inc.
Beta
⌘K

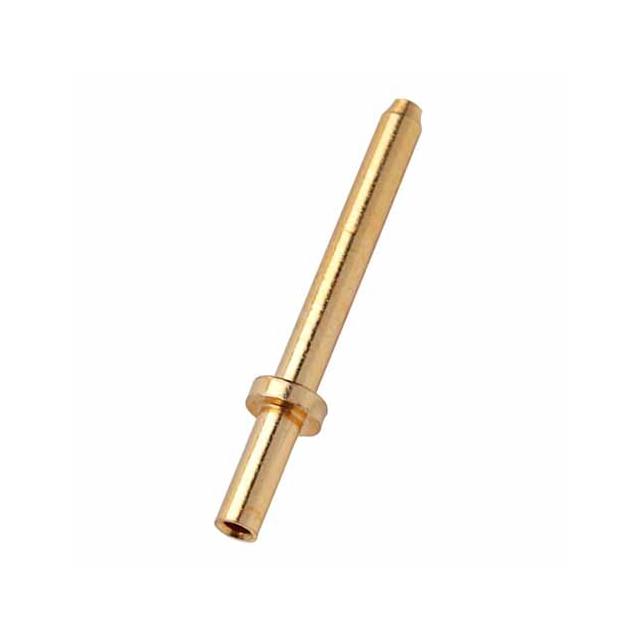

CONN PC PIN CIRC 0.041DIA GOLD
| Part | Length - Above Flange | Length - Above Flange | Terminal Style | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish | Length - Overall [x] | Length - Overall [x] | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Contact Material | Board Thickness [custom] | Board Thickness [custom] | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 0.3 in | 7.62 mm | Single End | 1.04 mm | 1.14 mm | 0.041 in | 0.045 in | Through Hole | 0.041 in | 1.04 mm | Gold | 11.03 mm | 0.434 in | Swage | 0.114 " | 2.9 mm | PC Pin | Brass | 0.094 in | 2.39 mm | 1.77 mm | 0.07 in | Non-Insulated |
