sbs Series
Manufacturer: Knitter-Switch
Beta
⌘K
SWITCH: DIP-SWITCH; OFF-ON; 0.025A/24VDC; POS: 2; SMD; -40÷85°C
| Part | Actuator Level | Actuator Type | Circuit | Washable | Pitch | Pitch | Contact Finish | Number of Positions | Mounting Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Height Above Board | Height Above Board | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

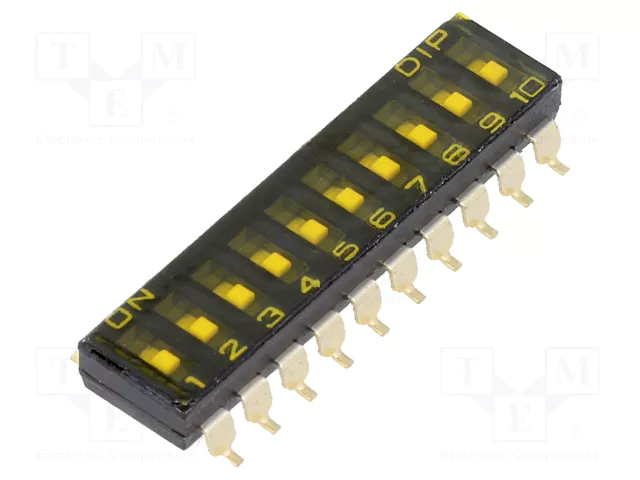

 Knitter-Switch | Flush Recessed | Slide (Standard) | SPST | 2.54 mm | 0.1 " | Gold | 10 | Surface Mount | Nickel | 85 °C | -40 C | Gull Wing | 0.149 " | 3.78 mm | 25 mA | 24 VDC | |

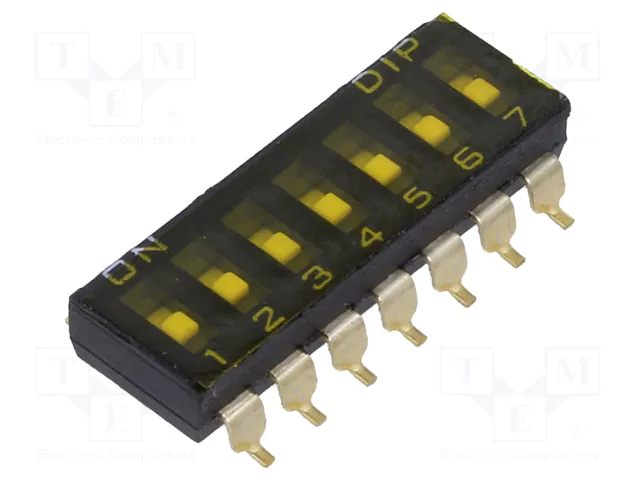

 Knitter-Switch | Flush Recessed | Slide (Standard) | SPST | 2.54 mm | 0.1 " | Gold | 7 | Surface Mount | Nickel | 85 °C | -40 C | Gull Wing | 0.149 " | 3.78 mm | 25 mA | 24 VDC |
