M2028TX Series

Catalog

SWITCH ROCKER DPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Marking	Switch Function	Mounting Type	Actuator Type	Termination Style	Voltage Rating - DC	Current Rating (Amps)	Approval Agency	Voltage Rating - AC	Features	Color - Actuator/Cap
NKK Switches M2028TXG15	50000 Cycles	50000 Cycles	85 °C	-30 ░C	DPDT	Varies by Cap	Mom-Off-Mom	Through Hole	Actuator Arm Cap Required	PC Pin	28 V	0.4 VA	CSA UL	28 V	Epoxy Sealed Terminals
NKK Switches M2028TXA30	50000 Cycles	25000 Steps	85 °C	-30 ░C	DPDT	Varies by Cap	Mom-Off-Mom	Right Angle Through Hole	Actuator Arm Cap Required	PC Pin	30 V	3 A 6 A	CSA UL	125 V	Epoxy Sealed Terminals
NKK Switches M2028TXG41	50000 Cycles	50000 Cycles	85 °C	-30 ░C	DPDT	Varies by Cap	Mom-Off-Mom	Right Angle Through Hole Vertical	Actuator Arm Cap Required	PC Pin	28 V	0.4 VA	CSA UL	28 V	Epoxy Sealed Terminals
NKK Switches M2028TXG13-FC	50000 Cycles	50000 Cycles	85 °C	-30 ░C	DPDT	No Marking	Mom-Off-Mom	Through Hole	Concave	PC Pin	28 V	0.4 VA	CSA UL	28 V	Epoxy Sealed Terminals	Red
NKK Switches M2028TXG13	50000 Cycles	50000 Cycles	85 °C	-30 ░C	DPDT	Varies by Cap	Mom-Off-Mom	Through Hole	Actuator Arm Cap Required	PC Pin	28 V	0.4 VA	CSA UL	28 V	Epoxy Sealed Terminals

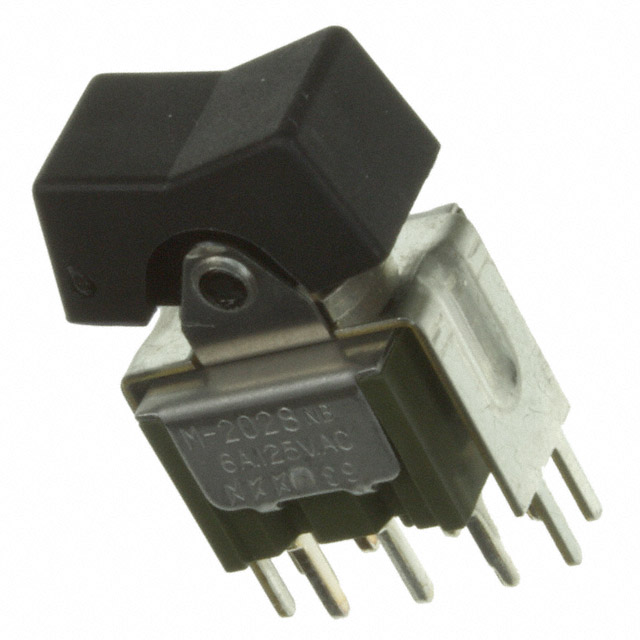

NKK Switches M2028TXW13-DA	50000 Cycles	25000 Steps	85 °C	-30 ░C	DPDT	No Marking	Mom-Off-Mom	Through Hole	Concave	PC Pin	30 V	3 A 6 A	CSA UL	125 V	Epoxy Sealed Terminals	Black
NKK Switches M2028TXG13-DC	50000 Cycles	50000 Cycles	85 °C	-30 ░C	DPDT	No Marking	Mom-Off-Mom	Through Hole	Concave	PC Pin	28 V	0.4 VA	CSA UL	28 V	Epoxy Sealed Terminals	Red
