1092-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

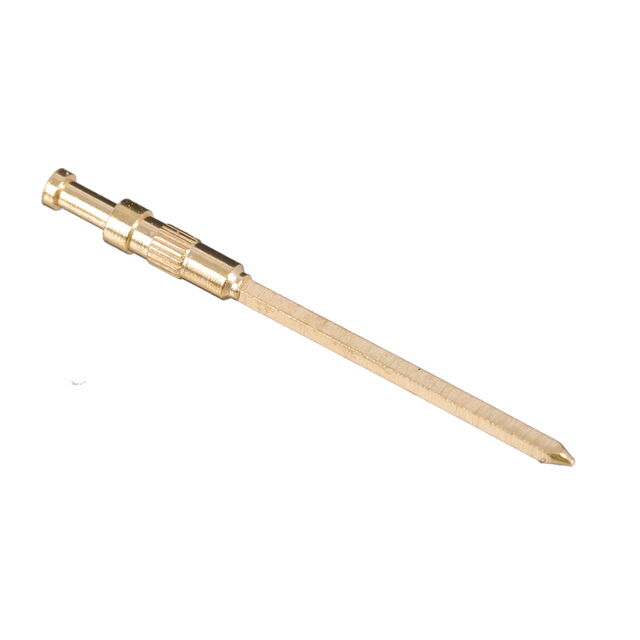

TERM TURRET PIN L=3.43MM GOLD
| Part | Number of Turrets | Contact Finish Thickness | Contact Finish Thickness | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Mounting Hole Diameter | Mounting Hole Diameter | Length - Below Flange [x] | Length - Below Flange [x] | Length - Overall | Length - Overall | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Above Board [x] | Length - Above Board [x] | Termination | Contact Finish | Insulation | Contact Material | Terminal Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Single | 20 µin | 0.51 µm | 0.053 in | 1.35 mm | 1.42 mm | 0.056 " | 16.51 mm | 0.65 " | 19.94 mm | 0.785 in | 1.6 mm | 0.063 in | 0.135 in | 3.43 mm | Knurled Press-Fit Wire Wrap | Gold | Non-Insulated | Brass Alloy | Double End Pin | Through Hole |
 Mill-Max Manufacturing Corp. | Single | 200 Áin | 5.08 Ám | 0.053 in | 1.35 mm | 1.42 mm | 0.056 " | 16.51 mm | 0.65 " | 19.94 mm | 0.785 in | 1.6 mm | 0.063 in | 0.135 in | 3.43 mm | Knurled Press-Fit Wire Wrap | Tin | Non-Insulated | Brass Alloy | Double End Pin | Through Hole |
Mill-Max Manufacturing Corp. | Single | 200 Áin | 5.08 Ám | 0.053 in | 1.35 mm | 1.42 mm | 0.056 " | 16.51 mm | 0.65 " | 19.94 mm | 0.785 in | 1.6 mm | 0.063 in | 0.135 in | 3.43 mm | Knurled Press-Fit Wire Wrap | Tin-Lead | Non-Insulated | Brass Alloy | Double End Pin | Through Hole |
