DAC7678 Series
Manufacturer: Texas Instruments
Beta
⌘K
12-BIT, OCTAL CHANNEL, ULTRA-LOW GLITCH, VOLTAGE OUTPUT, 2-WIRE INTERFACE DAC WITH 2.5V INTERNAL REF
| Part | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | INL/DNL (LSB) | Mounting Type | Reference Type | Package / Case [x] | Package / Case | Package / Case [y] | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Number of Bits | Differential Output | Settling Time | Output Type | Number of D/A Converters | Data Interface | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Architecture | DAC Type | Supplied Contents | Number of DAC's | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 5.5 V | 2.7 V | 0.1 LSB 0.3 LSB | Surface Mount | External Internal | 0.173 in | 16-TSSOP | 4.4 mm | 2.7 V | 5.5 V | 12 bits | 12 µs | Voltage - Buffered | 8 | I2C | 125 °C | -40 °C | 16-TSSOP | String DAC | |||||

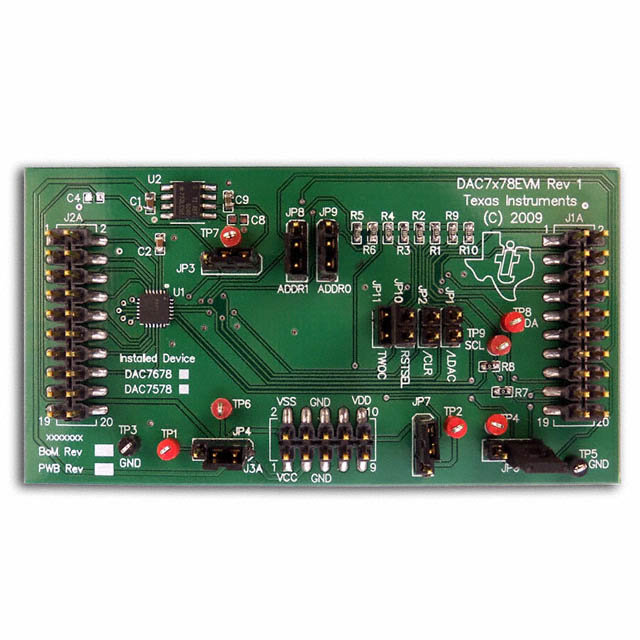

 Texas Instruments | 12 bits | 12 µs | I2C | Voltage | Board(s) | 8 | DAC7678 | |||||||||||||||||
 Texas Instruments | 5.5 V | 2.7 V | 0.1 LSB 0.3 LSB | Surface Mount | External Internal | 24-VFQFN Exposed Pad | 2.7 V | 5.5 V | 12 bits | 12 µs | Voltage - Buffered | 8 | I2C | 125 °C | -40 °C | 24-VQFN (4x4) | String DAC | |||||||
 Texas Instruments | 5.5 V | 2.7 V | 0.1 LSB 0.3 LSB | Surface Mount | External Internal | 24-VFQFN Exposed Pad | 2.7 V | 5.5 V | 12 bits | 12 µs | Voltage - Buffered | 8 | I2C | 125 °C | -40 °C | 24-VQFN (4x4) | String DAC |
