2327672 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

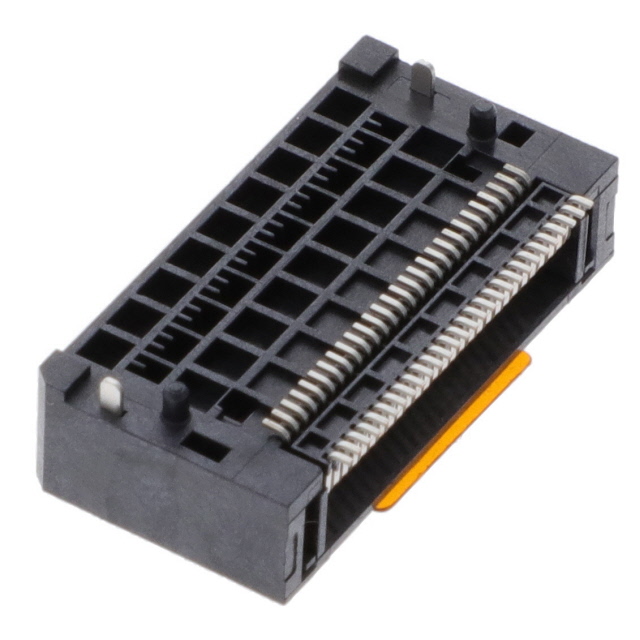

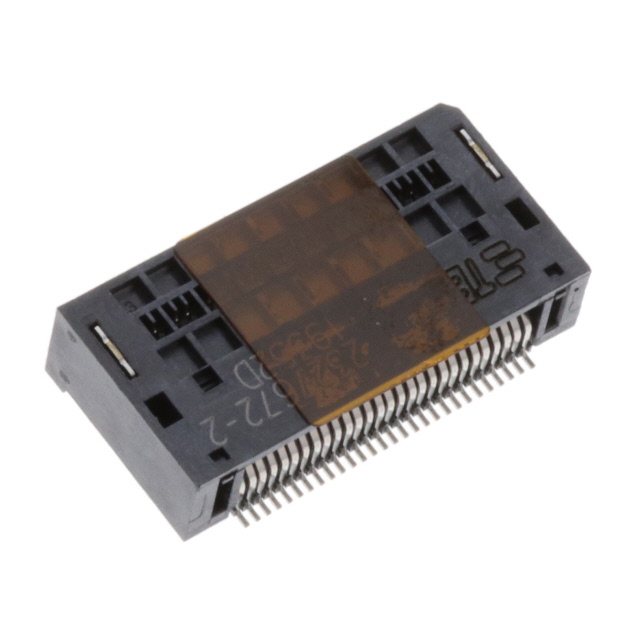

PCB EDGE CARD RIGHT ANGLE 56 POSITION 2 ROW SURFACE MOUNT
| Part | Color | Mounting Type | Contact Material | Features | Card Thickness | Card Thickness | Pitch [x] | Pitch [x] | Contact Finish Thickness | Read Out | Material - Insulation | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Termination | Gender | Card Type | Number of Rows | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Black | Surface Mount Right Angle | Copper Alloy | Board Guide Pick and Place Solder Retention | 0.062 in | 1.57 mm | 0.6 mm | 0.024 in | Flash | Dual | Liquid Crystal Polymer (LCP) | 56 | 85 °C | -55 °C | Gold | Solder | Female | Non Specified - Dual Edge | 2 | 28 | ||
 TE Connectivity Raychem Cable Protection | Black | Surface Mount Right Angle | Copper Alloy | Board Guide Pick and Place Solder Retention | 0.062 in | 1.57 mm | 0.6 mm | 0.024 in | Dual | Liquid Crystal Polymer (LCP) | 56 | 85 °C | -55 °C | Gold | Solder | Female | Non Specified - Dual Edge | 2 | 28 | 15 µin | 0.38 µm |
