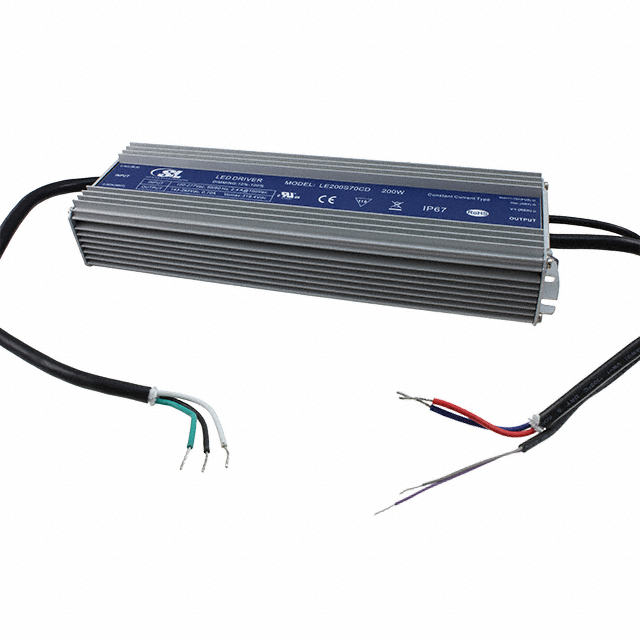

LE200S70 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
LED DVR CC AC/DC 143-285V 735MA
| Part | Weight [custom] | Weight [custom] | Mounting Type | Termination Style | Voltage - Output [Min] | Voltage - Output [Max] | Type | Voltage - Input (Min) [Min] | Dimming | Topology | Efficiency | Approval Agency | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current - Output (Max) [Max] | Features | Number of Outputs | Ratings | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 3.3 lbs | 1.5 kg | Chassis Mount | Wire Leads | 143 V | 285 V | Constant Current | 90 VAC | Analog | AC DC Converter | 93 % | CE CSA EN UL | 305 VAC | -35 °C | 70 °C | 46 mm | 1.81 " | 3.13 " | 10.43 in | 265 mm | 79.5 mm | 735 mA | OCP OTP OVP SCP | 1 | IP67 | 200 Watts |
