1393560 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

V42254A 122V 1=SUB D BOLZENSA

Part	Features	For Use With/Related Products	Thread Size	Accessory Type	Length - Below Head	Length - Below Head	Number of Positions	Gender	Screw, Thread Size	Between Board Height	Between Board Height	Length - Overall [x]	Length - Overall [x]	Length - Overall [x]	Type	Length - Below Head [x]	Length - Below Head [x]	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head	Length - Threaded Portion Below Head

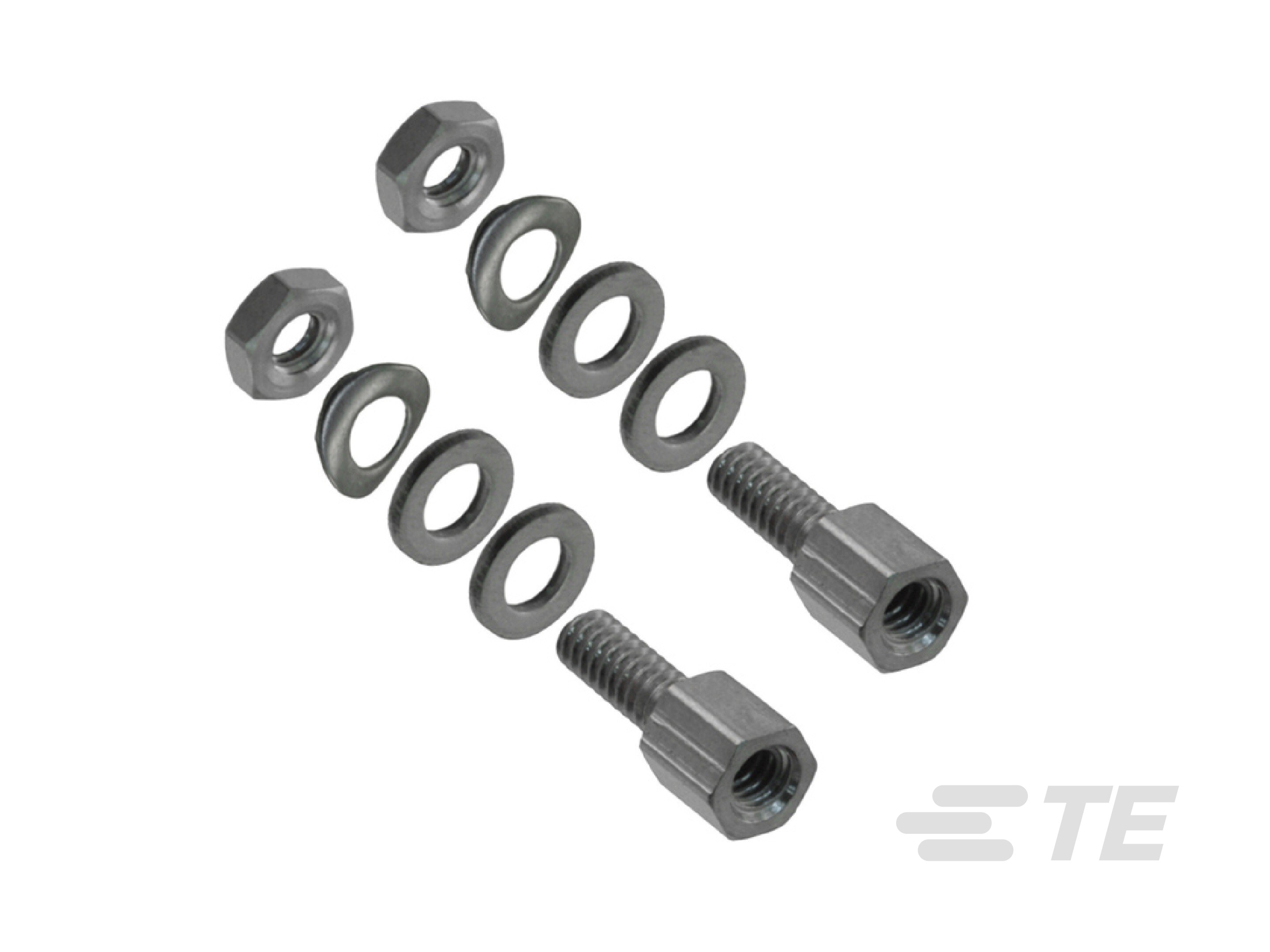

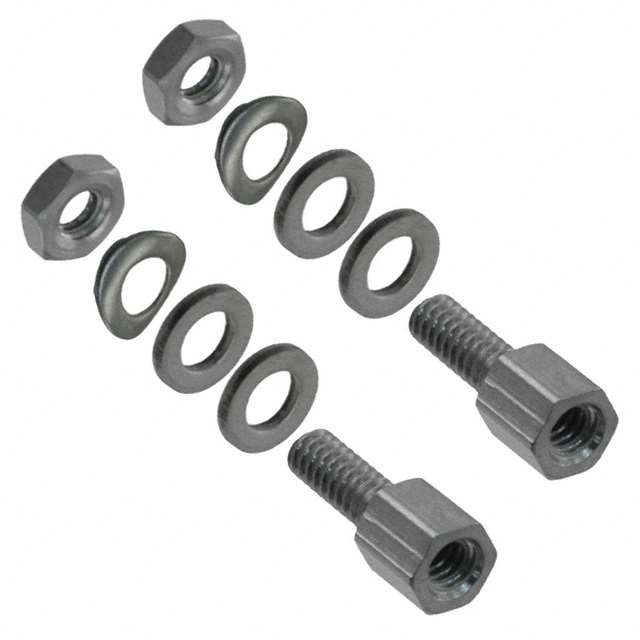

TE Connectivity AMP Connectors 1-1393560-8	Hardware Included	D-Sub Connectors	4-40 Screw 4-40 Socket	Jackscrew Socket	0.311 in	7.91 mm
TE Connectivity AMP Connectors 4-1393560-7		D-Sub IDC Connectors		Strain Relief			37
TE Connectivity AMP Connectors 4-1393560-5		D-Sub IDC Connectors		Strain Relief			15
TE Connectivity AMP Connectors 3-1393560-2	Hardware Included	D-Sub Connectors	4-40 Socket M3 Screw	Jackscrew Socket

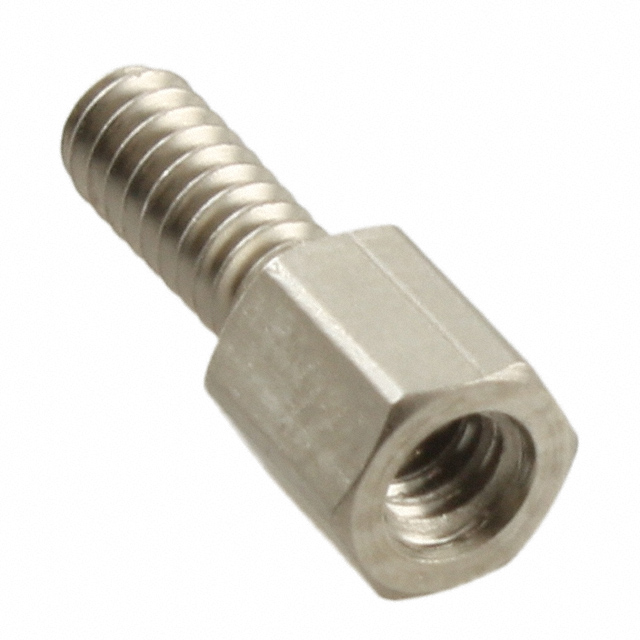

TE Connectivity AMP Connectors 1393560-5								Female Male	#4-40	0.189 in	4.8 mm	0.5 in	1/2	12.7 mm	Hex Standoff
TE Connectivity AMP Connectors 3-1393560-1	Hardware Included	D-Sub Connectors	M3 Screw M3 Socket	Jackscrew Socket												4.55 mm	0.179 in	0.148 in	3.75 mm
TE Connectivity AMP Connectors 1-1393560-7	Hardware Included	D-Sub Connectors	4-40 Screw M3 Socket	Jackscrew Socket	0.311 in	7.91 mm

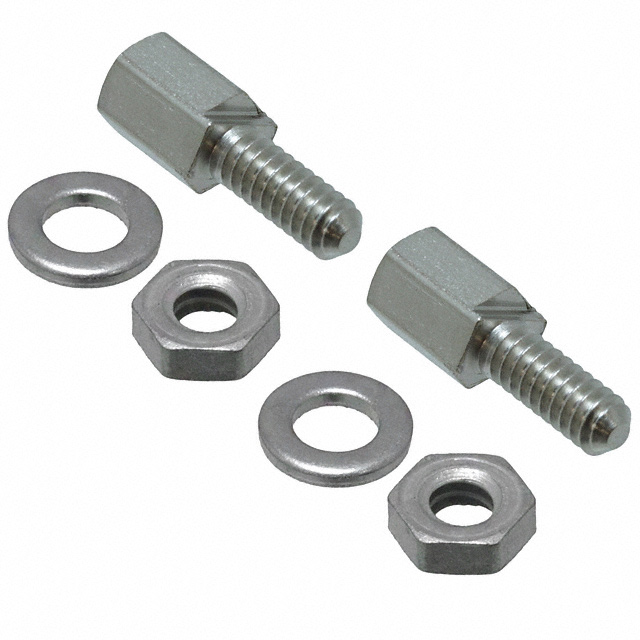

TE Connectivity AMP Connectors 2-1393560-7	Hardware Included	D-Sub Connectors	4-40 Screw 4-40 Socket	Jackscrew Socket	0.319 "	8.1 mm														0.287 in	7.3 mm
TE Connectivity AMP Connectors 2-1393560-9	Hardware Included	D-Sub Connectors	4-40	Jackscrew	0.311 in	7.91 mm
TE Connectivity AMP Connectors 2-1393560-5	Hardware Included	D-Sub Connectors	4-40 Screw 4-40 Socket	Jackscrew Socket	0.319 "	8.1 mm														0.287 in	7.3 mm
