MPM3610 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
DC/DC POL CONVERTER, ADJUSTABLE, SYNC BUCK, 2MHZ, 4.5V TO 21V IN, 0.8V TO 17.85V/1.2A OUT, QFN-20
| Part | Features | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Supplier Device Package | Current - Output (Max) [Max] | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Control Features | Voltage - Input (Max) [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Input (Min) [Min] | Package / Case | Applications | Voltage - Output 1 [Max] | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Voltage - Output | Main Purpose | Regulator Topology | Contents | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Frequency - Switching | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | OCP OTP UVLO | 0.8 V | 18.48 V | 20-QFN (3x5) | 1.2 A | 1 | 0.06 " | 0.12 in | 3 mm | 5 mm | 0.2 in | 1.6 mm | Active High Enable | 21 V | Surface Mount | 125 °C | -40 C | Non-Isolated PoL Module | 4.5 V | 20-PowerLFQFN Module | ITE (Commercial) | ||||||||||||||
Monolithic Power Systems Inc. | OCP OTP UVLO | 0.8 V | 18.48 V | 20-QFN (3x5) | 1.2 A | 1 | 0.06 " | 0.12 in | 3 mm | 5 mm | 0.2 in | 1.6 mm | Active High Enable | 21 V | Surface Mount | 125 °C | -40 C | Non-Isolated PoL Module | 4.5 V | 20-PowerLFQFN Module | ITE (Commercial) | ||||||||||||||
Monolithic Power Systems Inc. | OCP OTP UVLO | 4.5 V | 20-QFN (3x5) | 1.2 A | 1 | 0.06 " | 0.12 in | 3 mm | 5 mm | 0.2 in | 1.6 mm | Active High Enable | 21 V | Surface Mount | 125 °C | -40 C | Non-Isolated PoL Module | 4.5 V | 20-PowerLFQFN Module | ITE (Commercial) | 21 V | ||||||||||||||
Monolithic Power Systems Inc. | OCP OTP UVLO | 0.8 V | 18.48 V | 20-QFN (3x5) | 1.2 A | 1 | 0.06 " | 0.12 in | 3 mm | 5 mm | 0.2 in | 1.6 mm | Active High Enable | 21 V | Surface Mount | 125 °C | -40 C | Non-Isolated PoL Module | 4.5 V | 20-PowerLFQFN Module | ITE (Commercial) | ||||||||||||||

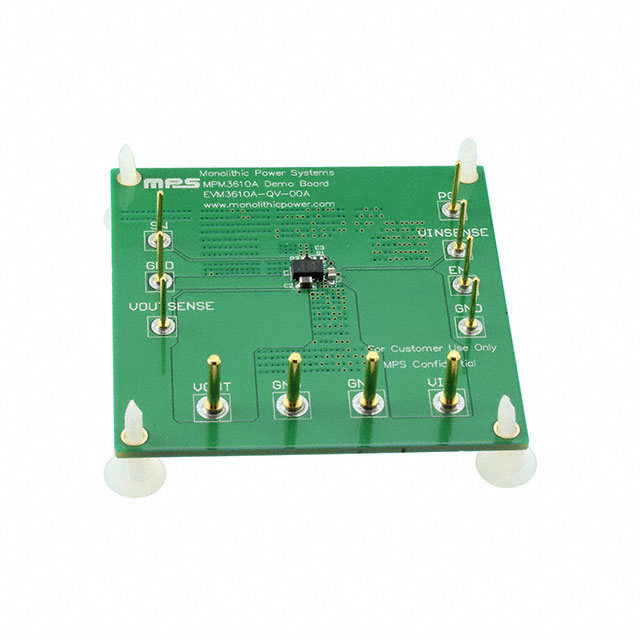

 Monolithic Power Systems Inc. | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | 3.3 V | DC/DC Step Down | Buck | Board(s) | MPM3610A | 4.5 V | 21 V | 2 MHz | 1.2 A |
