222D221 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT R/A SZ21 BLACK

Part	Total Length Recovered	Total Length Recovered	Shell Size - Insert	Features	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Material	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Recovered Length	Large Recovered Length	Small Recovered Length [x]	Small Recovered Length	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Type	Color	Small Recovered Length
TE Connectivity Aerospace, Defense and Marine 222D221-4-0	123.95 mm	4.88 in	21	Flame Retardant Fluid Resistant Heat Resistant Lip	1.012 in	25.7 mm	Polyolefin (PO) Flexible Irradiated	0.291 "	7.39 mm	25.7 mm	1.012 in	19.81 mm	0.78 in	3.902 in	99.11 mm	15 mm	0.591 in	Boot - 90°	Black
TE Connectivity Aerospace, Defense and Marine 222D221-25/225-0	123.95 mm	4.88 in	21	Abrasion Resistant Adhesive Coating Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resist	1.012 in	25.7 mm	Elastomer Semi-Rigid Irradiated	0.291 "	7.39 mm	25.7 mm	1.012 in	19.81 mm	0.78 in	3.902 in	99.11 mm	15 mm	0.591 in	Boot - 90°	Black
TE Connectivity Aerospace, Defense and Marine 222D221-3-0	123.95 mm	4.88 in	21	Flame Retardant Fluid Resistant Heat Resistant Lip	1.012 in	25.7 mm	Polyolefin (PO) Semi-Rigid Irradiated	0.291 "	7.39 mm	25.7 mm	1.012 in	19.81 mm	0.78 in	3.902 in	99.11 mm	15 mm	0.591 in	Boot - 90°	Black
TE Connectivity Aerospace, Defense and Marine 222D221-12-32-0	78.69 mm	3.098 in	21	Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Lip Potting (Injection) Port Vent Port	1.012 in	25.7 mm	Fluoroelastomer (FKM) Flexible Irradiated	0.291 "	7.39 mm	16 mm	0.63 in	19.81 mm	0.78 in		53.8 mm	15 mm	0.591 in	Boot - 90°	Black	2.118 in
TE Connectivity Aerospace, Defense and Marine 222D221-25-22-0	78.69 mm	3.098 in	21	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	1.012 in	25.7 mm	Elastomer Semi-Rigid Irradiated	0.291 "	7.39 mm	25.7 mm	1.012 in	19.81 mm	0.78 in		53.8 mm	15 mm	0.591 in	Boot - 90°	Black	2.118 in
TE Connectivity Aerospace, Defense and Marine 222D221-12-32-0-CS5460	78.69 mm	3.098 in	21	Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Lip Potting (Injection) Port Vent Port	1.012 in	25.7 mm	Fluoroelastomer (FKM) Flexible Irradiated	0.291 "	7.39 mm	16 mm	0.63 in	19.81 mm	0.78 in		53.8 mm	15 mm	0.591 in	Boot - 90°	Black	2.118 in
TE Connectivity Aerospace, Defense and Marine 222D221-25-13/86-0	39.6 mm	1.559 in	21	Abrasion Resistant Adhesive Coating Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resist	1.008 in	25.6 mm	Elastomer Semi-Rigid Irradiated	0.287 "	7.29 mm	25.6 mm	1.008 in	19.81 mm	0.78 in		14.71 mm	15 mm	0.591 in	Boot - 90°	Black	0.579 "

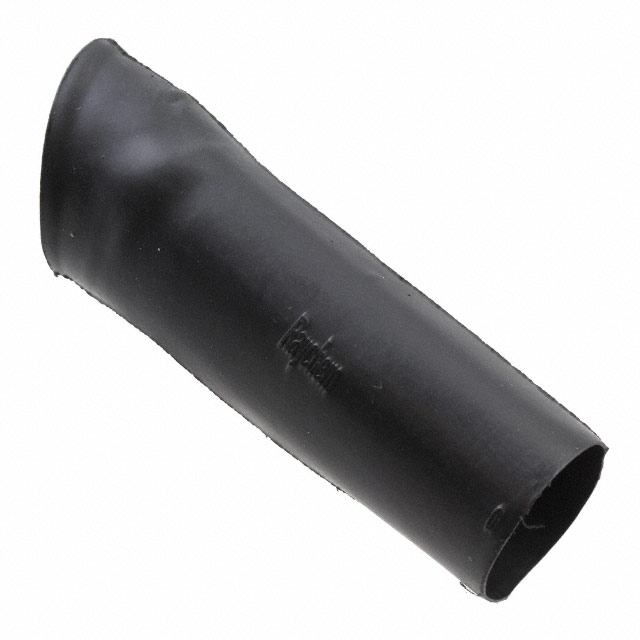

TE Connectivity Aerospace, Defense and Marine 222D221-25-0	123.95 mm	4.88 in	21	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	1.012 in	25.7 mm	Elastomer Semi-Rigid Irradiated	0.291 "	7.39 mm	25.7 mm	1.012 in	19.81 mm	0.78 in	3.902 in	99.11 mm	15 mm	0.591 in	Boot - 90°	Black
