HM2P70 Series

Catalog

CONN HEADER 154POS 2MM PRESS-FIT

Part	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions Loaded	Connector Style	Mounting Type	Number of Rows	Termination	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (FCI) HM2P70PDF1G1N9	750 Vrms	-55 C	125 °C	1.5 A	Header Male Pins	110	44	All	B 22	Through Hole	5 + 2	Press-Fit	Flash	0.079 in	2 mm	Gold
Amphenol ICC (FCI) HM2P70PDU171N9	750 Vrms	-55 C	125 °C	1.5 A	Header Male Pins	110	44	All	B 22	Through Hole	5 + 2	Press-Fit	Flash	0.079 in	2 mm	Gold
Amphenol ICC (FCI) HM2P70PDU171N9LF	750 Vrms	-55 C	125 °C	1.5 A	Header Male Pins			All	B 22	Through Hole		Press-Fit		0.079 in	2 mm	Gold	132	1 5

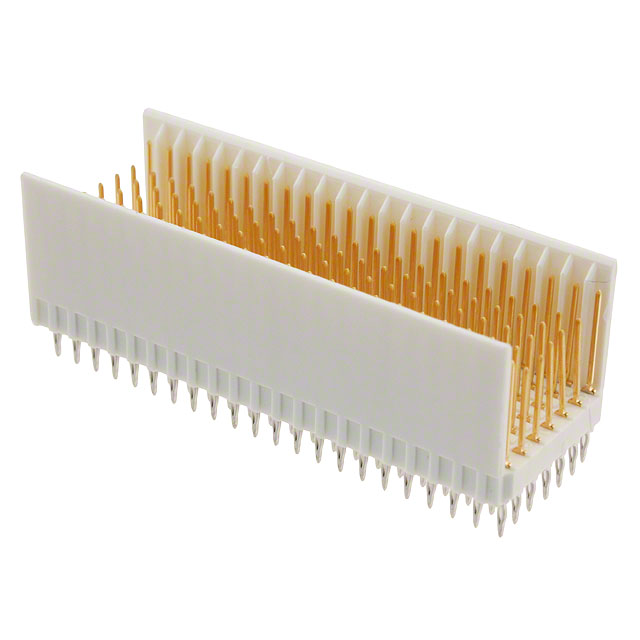

Amphenol ICC (FCI) HM2P70PDE121N9LF	750 Vrms	-55 C	125 °C	1.5 A	Header Male Pins	110	44	All	B 22	Through Hole	5 + 2	Press-Fit	Flash	0.079 in	2 mm	Gold
Amphenol ICC (FCI) HM2P70PME129GF	750 Vrms	-55 C	125 °C	1.5 A	Header Male Pins	110	44	All	B 22	Through Hole	5 + 2	Press-Fit		0.079 in	2 mm	Gold			30 Áin	0.76 Ám
Amphenol ICC (FCI) HM2P70PKE124GL	750 Vrms	-55 C	125 °C	1.5 A	Header Male Pins	110	44	All	B 22	Through Hole	5 + 2	Press-Fit		0.079 in	2 mm	Gold			39.4 Áin	1 Ám
Amphenol ICC (FCI) HM2P70PAE121AALF	750 Vrms	-55 C	125 °C	1.5 A	Header Male Pins	110	44	All	B 22	Through Hole	5 + 2	Press-Fit		0.079 in	2 mm	Gold			50 µin	1.27 µm
Amphenol ICC (FCI) HM2P70PNE7Y5GFLF	750 Vrms	-55 C	125 °C	1.5 A	Header Male Pins			All	B 22	Through Hole		Press-Fit		0.079 in	2 mm	Gold	132	1 5	30 Áin	0.76 Ám
Amphenol ICC (FCI) HM2P70PDR2N1N9	750 Vrms	-55 C	125 °C	1.5 A	Header Male Pins	110	44	All	B 22	Through Hole	5 + 2	Press-Fit	Flash	0.079 in	2 mm	Gold
Amphenol ICC (FCI) HM2P70PD5111N9	500 V	-55 C	125 °C	1.5 A	Header Male Pins	110	44	All	B 22	Through Hole	5 + 2	Press-Fit	Flash	0.079 in	2 mm	Gold
