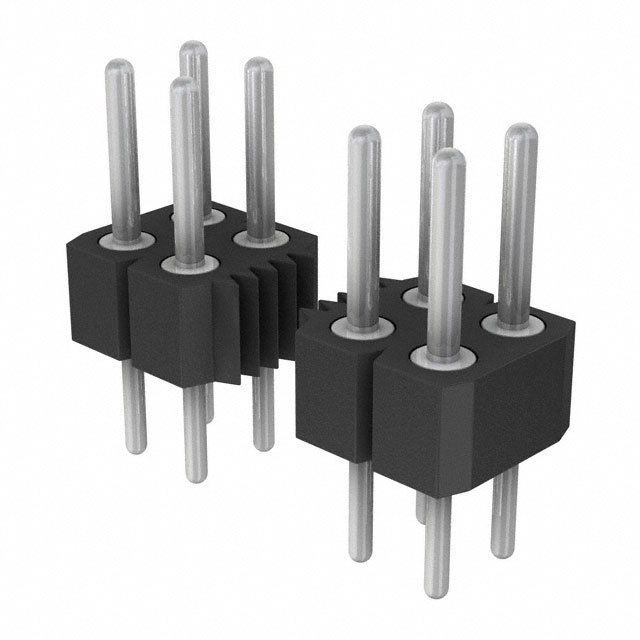

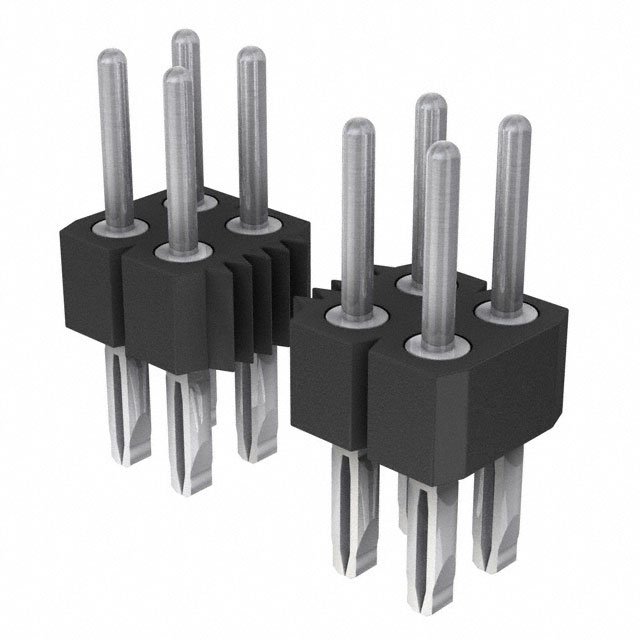

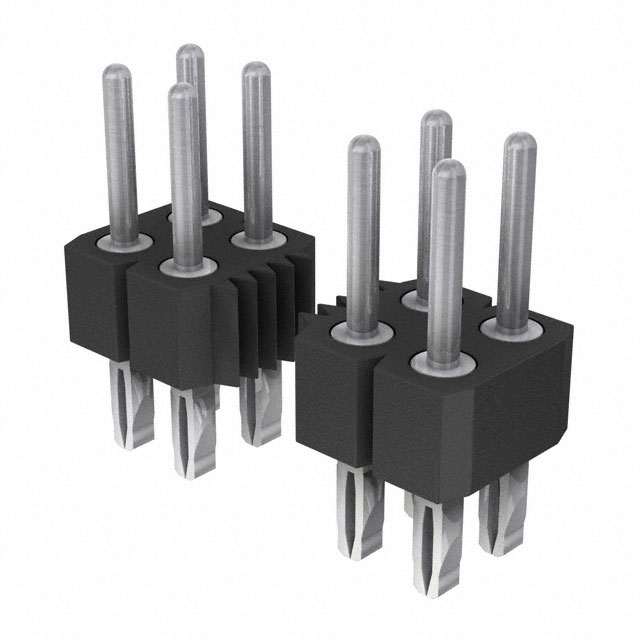

802-80 Series

Manufacturer: Preci-Dip

Catalog

Catalog

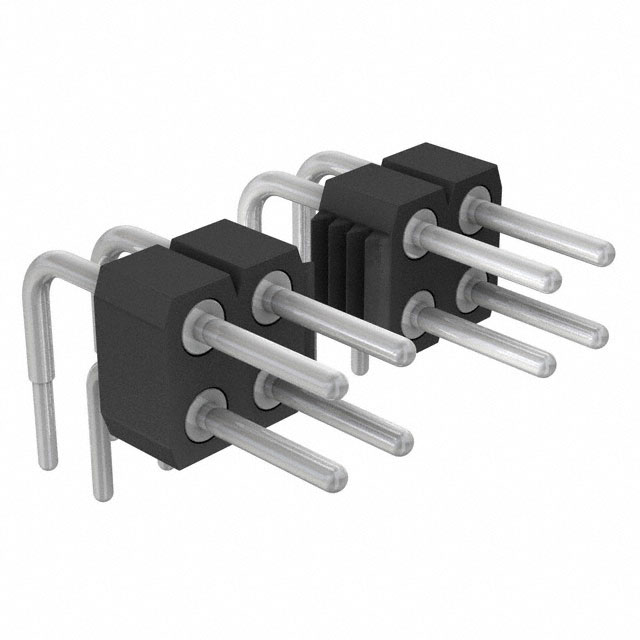

CONN HEADER R/A 14POS 2.54MM

...

Part	Current Rating (Amps)	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Contact Type	Voltage Rating	Fastening Type	Insulation Color	Contact Finish - Post	Shrouding	Material Flammability Rating	Termination	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Shape	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Material	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]
Preci-Dip 802-80-014-20-001101	3 A	All	-55 C	125 °C	2	0.2 in	5.08 mm	Male Pin	150 VDC	Push-Pull	Black	Tin	Unshrouded	UL94 V-0	Solder	Brass	0.126 "	3.2 mm	14	Circular	4.95 mm	0.195 in	0.1 in	2.54 mm	Header	0.1 "	2.54 mm	Right Angle Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester

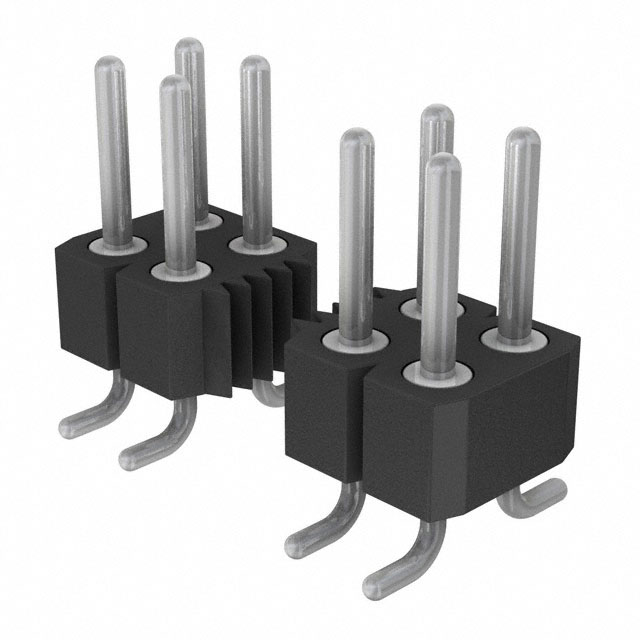

Preci-Dip 802-80-024-30-001101	3 A	All	-55 C	125 °C	2			Male Pin	150 VDC	Push-Pull	Black	Tin	Unshrouded	UL94 V-0	Solder	Brass			24	Circular	4.85 mm	0.191 in	0.1 in	2.54 mm	Header	0.1 "	2.54 mm	Surface Mount	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester

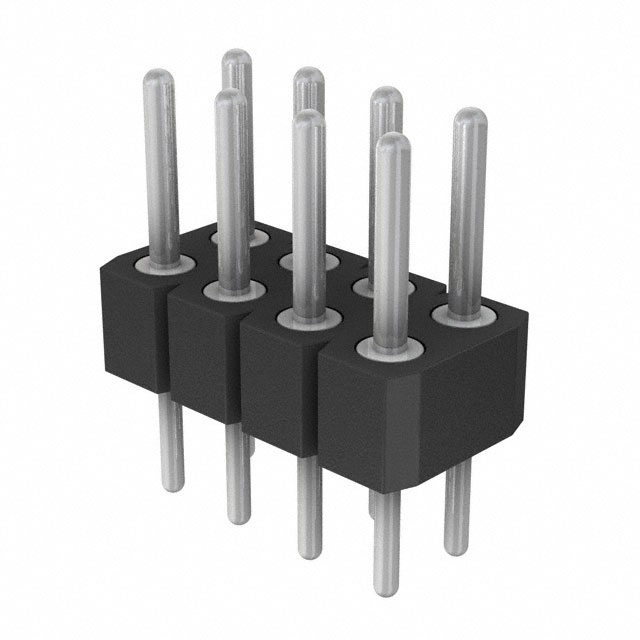

Preci-Dip 802-80-008-10-001101	3 A	All	-55 C	125 °C	2			Male Pin	150 VDC	Push-Pull	Black	Tin	Unshrouded	UL94 V-0	Solder	Brass			8	Circular	4.85 mm	0.191 in	0.1 in	2.54 mm	Header	0.1 "	2.54 mm	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.121 in	3.08 mm	0.438 in	11.12 mm
Preci-Dip 802-80-044-66-001101	3 A	All	-55 C	125 °C	2			Male Pin	150 VDC	Push-Pull	Black	Tin	Unshrouded	UL94 V-0	Press-Fit Solder	Bronze	0.15 in	3.81 mm	44	Circular	4.85 mm	0.191 in	0.1 in	2.54 mm	Header	0.1 "	2.54 mm	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			0.467 in	11.85 mm
Preci-Dip 802-80-032-66-001101	3 A	All	-55 C	125 °C	2			Male Pin	150 VDC	Push-Pull	Black	Tin	Unshrouded	UL94 V-0	Press-Fit Solder	Bronze	0.15 in	3.81 mm		Circular	4.85 mm	0.191 in	0.1 in	2.54 mm	Header	0.1 "	2.54 mm	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			0.467 in	11.85 mm
Preci-Dip 802-80-062-66-001101	3 A	All	-55 C	125 °C	2			Male Pin	150 VDC	Push-Pull	Black	Tin	Unshrouded	UL94 V-0	Press-Fit Solder	Bronze	0.15 in	3.81 mm	62	Circular	4.85 mm	0.191 in	0.1 in	2.54 mm	Header	0.1 "	2.54 mm	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			0.467 in	11.85 mm
Preci-Dip 802-80-068-10-001101	3 A	All	-55 C	125 °C	2			Male Pin	150 VDC	Push-Pull	Black	Tin	Unshrouded	UL94 V-0	Solder	Brass			68 positions	Circular	4.85 mm	0.191 in	0.1 in	2.54 mm	Header	0.1 "	2.54 mm	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.121 in	3.08 mm	0.438 in	11.12 mm
Preci-Dip 802-80-032-10-001101	3 A	All	-55 C	125 °C	2			Male Pin	150 VDC	Push-Pull	Black	Tin	Unshrouded	UL94 V-0	Solder	Brass				Circular	4.85 mm	0.191 in	0.1 in	2.54 mm	Header	0.1 "	2.54 mm	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.121 in	3.08 mm	0.438 in	11.12 mm
Preci-Dip 802-80-028-65-001101	3 A	All	-55 C	125 °C	2			Male Pin	150 VDC	Push-Pull	Black	Tin	Unshrouded	UL94 V-0	Press-Fit Solder	Bronze			28	Circular	4.85 mm	0.191 in	0.1 in	2.54 mm	Header	0.1 "	2.54 mm	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		2.79 mm	0.427 in	10.85 mm	0.11 in
Preci-Dip 802-80-054-66-001101	3 A	All	-55 C	125 °C	2			Male Pin	150 VDC	Push-Pull	Black	Tin	Unshrouded	UL94 V-0	Press-Fit Solder	Bronze	0.15 in	3.81 mm	54	Circular	4.85 mm	0.191 in	0.1 in	2.54 mm	Header	0.1 "	2.54 mm	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			0.467 in	11.85 mm
