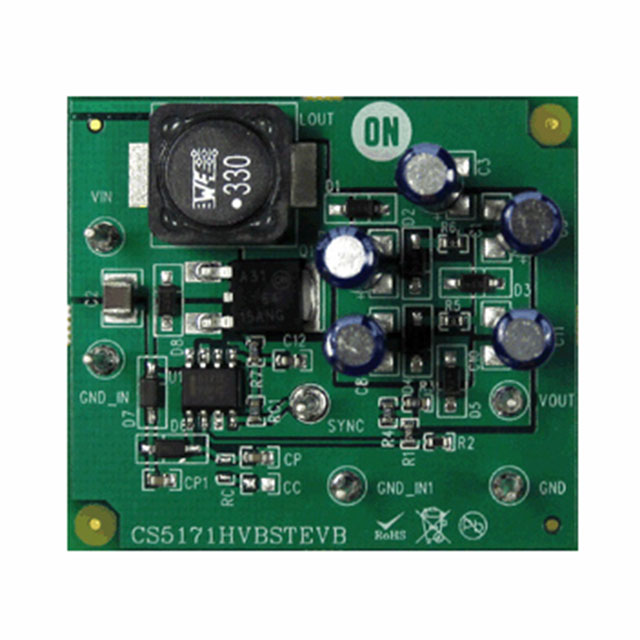

CS5171HVBS EVALUATION BOARD

Part	Regulator Topology	Frequency - Switching	Supplied Contents	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Utilized IC / Part	Outputs and Type	Outputs and Type	Voltage - Input (Min) [Min]	Current - Output	Package / Case	Package / Case [y]	Package / Case [x]	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Output (Max) [Max]	Number of Outputs	Function	Topology	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Output Configuration	Mounting Type
ON Semiconductor CS5171HVBSTGEVB	Boost	280 kHz	Board(s)	Fully Populated	30 V	2.7 V	DC/DC Step Up	CS5171	Non-Isolated	1
ON Semiconductor CS5171GDR8		280 kHz									2.7 V	1.5 A	8-SOIC	3.9 mm	0.154 in	Adjustable	0 °C	125 ¯C	8-SOIC	40 V	1	Step-Up	Boost	30 V	1.28 V	Positive	Surface Mount
ON Semiconductor CS5171ED8G		280 kHz									2.7 V	1.5 A	8-SOIC	3.9 mm	0.154 in	Adjustable	-40 °C	125 ¯C	8-SOIC	40 V	1	Step-Up	Boost	30 V	1.28 V	Positive	Surface Mount
ON Semiconductor CS5171GDR8G		280 kHz									2.7 V	1.5 A	8-SOIC	3.9 mm	0.154 in	Adjustable	0 °C	125 ¯C	8-SOIC	40 V	1	Step-Up	Boost	30 V	1.28 V	Positive	Surface Mount
