842-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 17POS 0.100
| Part | Termination Rows | Material - Insulation | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Color | Number of Rows | Contact Finish | Card Type | Read Out | Pitch | Pitch | Termination | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Contact Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

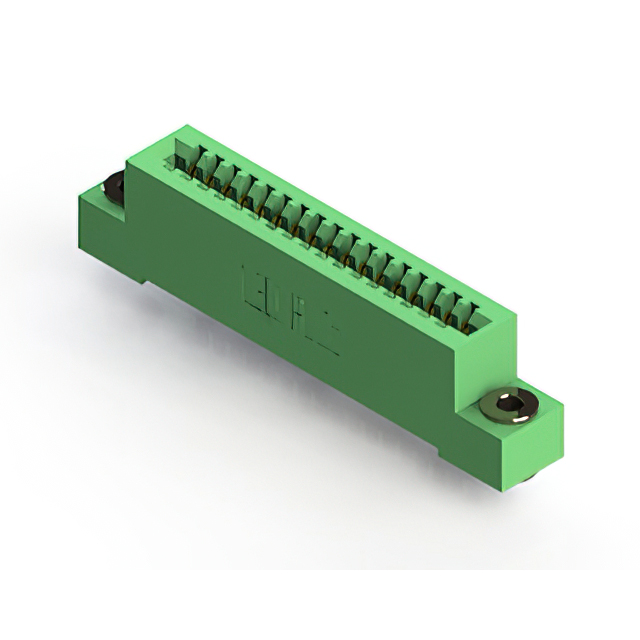

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Through Hole | Green | 1 | Gold | Non Specified - Single Edge | Single | 0.1 " | 2.54 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Female | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 17 |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Green | 1 | Gold | Non Specified - Single Edge | Single | 0.1 " | 2.54 mm | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Female | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 17 | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Right Angle Through Hole | Green | 1 | Gold | Non Specified - Single Edge | Single | 0.1 " | 2.54 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Female | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 17 |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Through Hole | Green | 1 | Gold | Non Specified - Single Edge | Single | 0.1 " | 2.54 mm | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Female | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 17 |

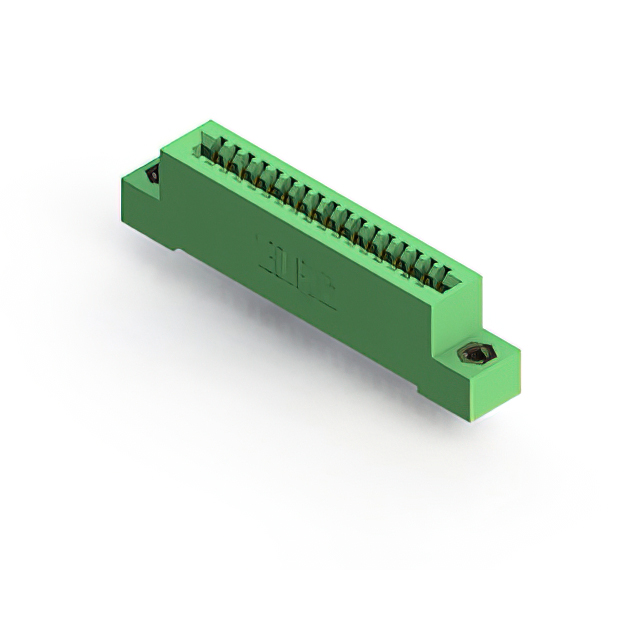

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Green | 1 | Gold | Non Specified - Single Edge | Single | 0.1 " | 2.54 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Female | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 17 | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Green | 1 | Gold | Non Specified - Single Edge | Single | 0.1 " | 2.54 mm | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Female | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 17 | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Right Angle Through Hole | Green | 1 | Gold | Non Specified - Single Edge | Single | 0.1 " | 2.54 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Female | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 17 |

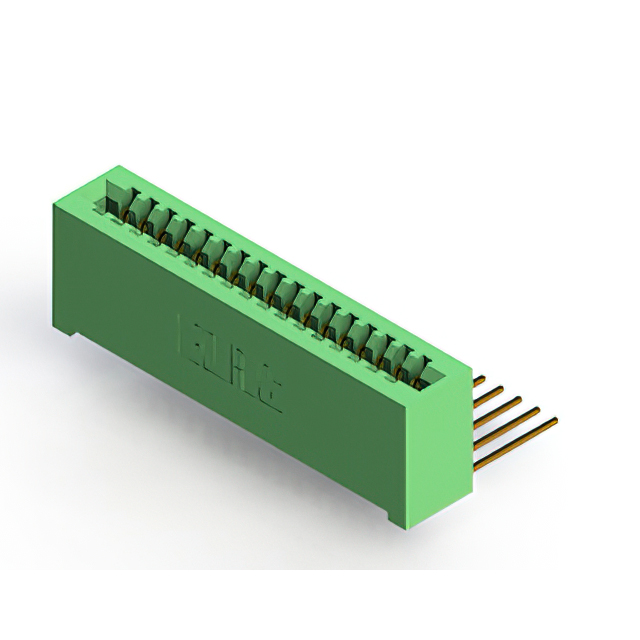

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Right Angle Through Hole | Green | 1 | Gold | Non Specified - Single Edge | Single | 0.1 " | 2.54 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Female | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 17 | |||

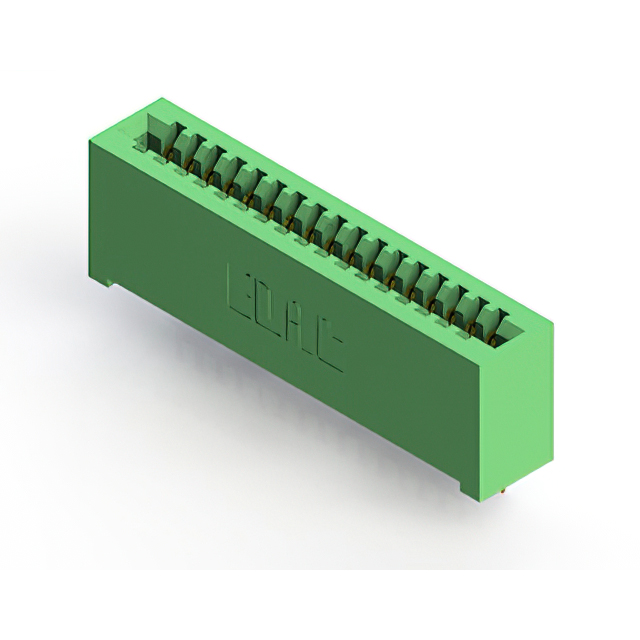

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Through Hole | Green | 1 | Gold | Non Specified - Single Edge | Single | 0.1 " | 2.54 mm | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Female | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 17 | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Through Hole | Green | 1 | Gold | Non Specified - Single Edge | Single | 0.1 " | 2.54 mm | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Female | Cantilever | Copper Alloy | 0.25 Ám | 10 Áin | 17 |
