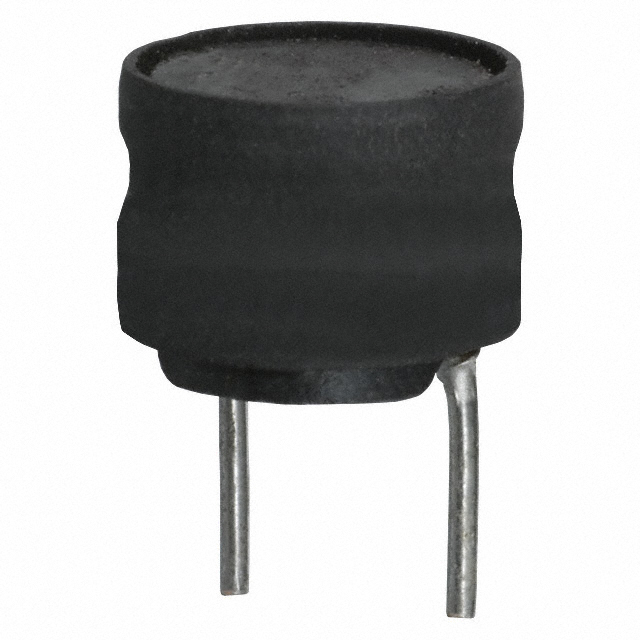

RL262 Series

Catalog

FIXED IND 10MH 20MA 55 OHM TH

Part	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Tolerance	Shielding	DC Resistance (DCR) [Max]	Q @ Freq	Current Rating (Amps)	Frequency - Self Resonant	Package / Case	Inductance Frequency - Test	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. RL262-103J-RC	Through Hole	0.315 in	8 mm	Ferrite	0.244 in	6.2 mm	Drum Core Wirewound	5 %	Unshielded	55 Ohm	60 79.6 kHz	0.02 A	600 kHz	Radial Vertical Cylinder	79.6 kHz	10 mH	-55 C	105 ░C
Bourns Inc. RL262-682J-RC	Through Hole	0.315 in	8 mm	Ferrite	0.244 in	6.2 mm	Drum Core Wirewound	5 %	Unshielded	40 Ohm	80 252 kHz	30 mA		Radial Vertical Cylinder	252 kHz		-55 C	105 ░C
Bourns Inc. RL262-822J-RC	Through Hole	0.315 in	8 mm	Ferrite	0.244 in	6.2 mm	Drum Core Wirewound	5 %	Unshielded	45 Ohm	80 252 kHz	30 mA	600 kHz	Radial Vertical Cylinder	252 kHz	8.2 mH	-55 C	105 ░C
Bourns Inc. RL262-681J-RC	Through Hole	0.315 in	8 mm	Ferrite	0.244 in	6.2 mm	Drum Core Wirewound	5 %	Unshielded	6 Ohm		100 mA	2.7 MHz	Radial Vertical Cylinder	0.796 MHz	680 µH	-55 C	105 ░C	796 kHz	60
Bourns Inc. RL262-153J-RC	Through Hole	0.315 in	8 mm	Ferrite	0.244 in	6.2 mm	Drum Core Wirewound	5 %	Unshielded	80 Ohm	60 79.6 kHz	0.02 A	500 kHz	Radial Vertical Cylinder	79.6 kHz	15 mH	-55 C	105 ░C
Bourns Inc. RL262-222J-RC	Through Hole	0.315 in	8 mm	Ferrite	0.244 in	6.2 mm	Drum Core Wirewound	5 %	Unshielded	14 Ohm	80 252 kHz	50 mA	1.5 MHz	Radial Vertical Cylinder	252 kHz	2.2 mH	-55 C	105 ░C
Bourns Inc. RL262-472J-RC	Through Hole	0.315 in	8 mm	Ferrite	0.244 in	6.2 mm	Drum Core Wirewound	5 %	Unshielded	32 Ohm	80 252 kHz	40 mA	800 kHz	Radial Vertical Cylinder	252 kHz	4.7 mH	-55 C	105 ░C
