ESD451 Series

0.5-pF, 5.5-V, 30-KV bidirectional ESD protection device in 0201 package

Catalog

0.5-pF, 5.5-V, 30-KV bidirectional ESD protection device in 0201 package

Part	Supplier Device Package	Power Line Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Applications	Capacitance @ Frequency	Type	Bidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Package / Case	Package / Case	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp	Voltage - Breakdown (Min) [Min]

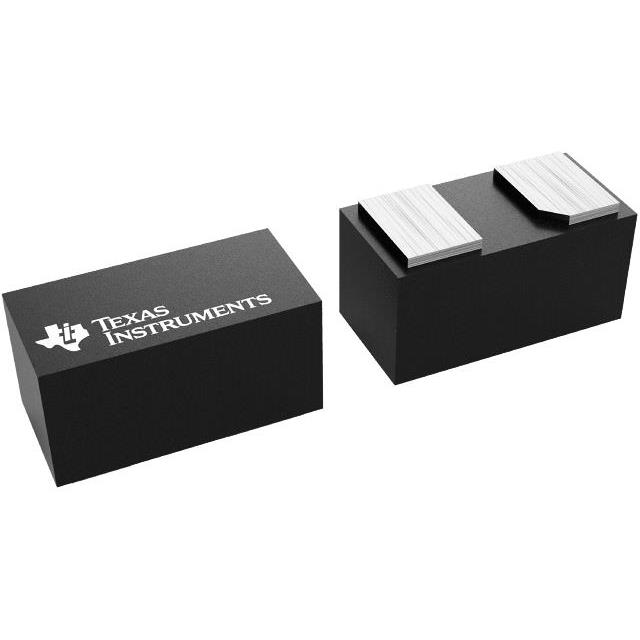

Texas Instruments ESD451DPLR	2-X2SON (0.6x0.3)		-40 °C	150 °C	Surface Mount	HDMI USB	0.5 pF	Zener	1	5.5 V	6 A	0603 Metric	0201	57 W	9.5 V	7 V

Catalog

0.5-pF, 5.5-V, 30-KV bidirectional ESD protection device in 0201 package

Key Features

• IEC 61000-4-2 level 4 ESD protection:±30 kV contact discharge±30 kV air gap dischargeIEC 61000-4-5 surge protection:6.2 A (8/20 µs)IO capacitance:0.5 pF (typical)DC breakdown voltage: ±8 V (typical)Ultra low leakage current: 50 nA (maximum)Extremely low ESD clamping voltage10.4 V at 16 A TLPR DYN: 0.19 ΩLow insertion loss: 3.5 GHz (-3 dB bandwidth)Supports high speed interfaces up to 7 GbpsIndustrial temperature range: –55°C to +150°CSpace-saving industry standard 0201 footprint (0.6 mm × 0.3 mm × 0.3 mm)IEC 61000-4-2 level 4 ESD protection:±30 kV contact discharge±30 kV air gap dischargeIEC 61000-4-5 surge protection:6.2 A (8/20 µs)IO capacitance:0.5 pF (typical)DC breakdown voltage: ±8 V (typical)Ultra low leakage current: 50 nA (maximum)Extremely low ESD clamping voltage10.4 V at 16 A TLPR DYN: 0.19 ΩLow insertion loss: 3.5 GHz (-3 dB bandwidth)Supports high speed interfaces up to 7 GbpsIndustrial temperature range: –55°C to +150°CSpace-saving industry standard 0201 footprint (0.6 mm × 0.3 mm × 0.3 mm)

Description

The ESD451 is a bidirectional ESD protection diode for protecting data line and other I/O ports. The ESD451 is rated to dissipate ESD strikes up to ±30 kV per the IEC 61000-4-2 international standard (greater than Level 4). This device features a 0.5 pF (typical) IO capacitance enabling high-speed interface protection for protocols such as USB 3.0. The extremely low dynamic resistance (0.19 Ω) and clamping voltage (10.4 V at 16 A TLP) is specified for system-level protection against transient events. The ±30 kV ESD rating and 6.2 A surge provides robust transient protection in a tiny package for protecting 5.5 V power rails and data lines in portable electronics and other space constrained applications such as wearables. The ESD451 is offered in the industry standard 0201 (DPL) package. The ESD451 is a bidirectional ESD protection diode for protecting data line and other I/O ports. The ESD451 is rated to dissipate ESD strikes up to ±30 kV per the IEC 61000-4-2 international standard (greater than Level 4). This device features a 0.5 pF (typical) IO capacitance enabling high-speed interface protection for protocols such as USB 3.0. The extremely low dynamic resistance (0.19 Ω) and clamping voltage (10.4 V at 16 A TLP) is specified for system-level protection against transient events. The ±30 kV ESD rating and 6.2 A surge provides robust transient protection in a tiny package for protecting 5.5 V power rails and data lines in portable electronics and other space constrained applications such as wearables. The ESD451 is offered in the industry standard 0201 (DPL) package.
