Cn0 Series Series

Rocker Switches Rocker Double Pole Power Rocker Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Rocker Switches Rocker Double Pole Power Rocker Switch

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Type, Color	Switch Function	Illumination Voltage (Nominal)	Circuit	Voltage Rating - AC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Approval Agency	Termination Style	Electrical Life	Actuator Type	Actuator Marking	Color - Actuator/Cap
Littelfuse/Commercial Vehicle Products CN202J3RS215Q8	22.2 mm	30.4 mm	Neon Red	On-Off	250 VAC	DPST	125 V	Panel Mount Snap-In	85 °C	-20 C	16 A	cULus	Quick Connect - 0.187" (4.7mm)	10000 Cycles	Concave (Curved) - Illuminated	No Marking	Red
Littelfuse/Commercial Vehicle Products CN22J8GS405PQA8	22.2 mm	30.4 mm	Green Neon	On-Off	250 VAC	DPST	125 V	Panel Mount Snap-In	85 °C	-20 C	16 A	cULus	Quick Connect - 0.250" (6.3mm)	10000 Cycles	Flat - Illuminated	O -	Green
Littelfuse/Commercial Vehicle Products CN202J3GS215Q8	22.2 mm	30.4 mm	Green Neon	On-Off	250 VAC	DPST	125 V	Panel Mount Snap-In	85 °C	-20 C	16 A	cULus	Quick Connect - 0.187" (4.7mm)	10000 Cycles	Concave (Curved) - Illuminated	No Marking	Green

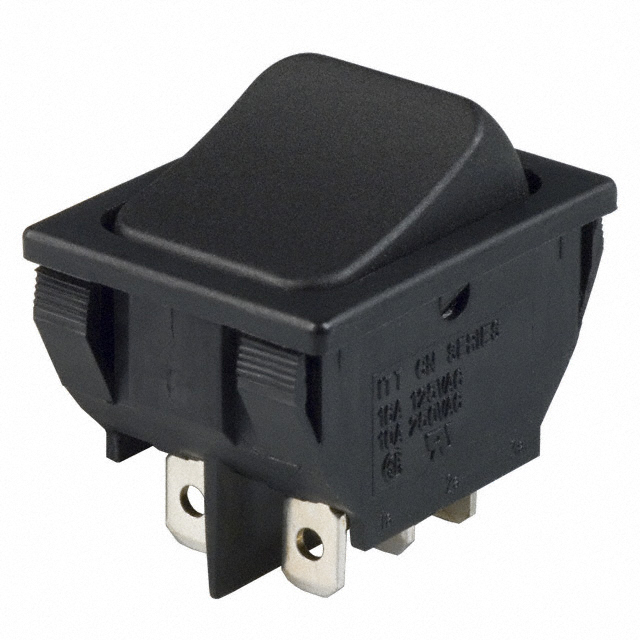

Littelfuse/Commercial Vehicle Products CN201J12S215Q	22.2 mm	30.4 mm		On-On		DPDT	125 V	Panel Mount Snap-In	85 °C	-20 C	16 A	cULus	Quick Connect - 0.187" (4.7mm)	10000 Cycles	Concave (Curved)	No Marking	Black
Littelfuse/Commercial Vehicle Products CN22J8GS305HQA8	22.2 mm	30.4 mm	Green Neon	On-Off	250 VAC	DPST	125 V	Panel Mount Snap-In	85 °C	-20 C	16 A	cULus	Quick Connect - 0.250" (6.3mm)	10000 Cycles	Flat - Illuminated	O I	Green
Littelfuse/Commercial Vehicle Products CN22J8GS405PQA7	22.2 mm	30.4 mm	Green Neon	On-Off	125 VAC	DPST	125 V	Panel Mount Snap-In	85 °C	-20 C	16 A	cULus	Quick Connect - 0.250" (6.3mm)	10000 Cycles	Flat - Illuminated	O -	Green

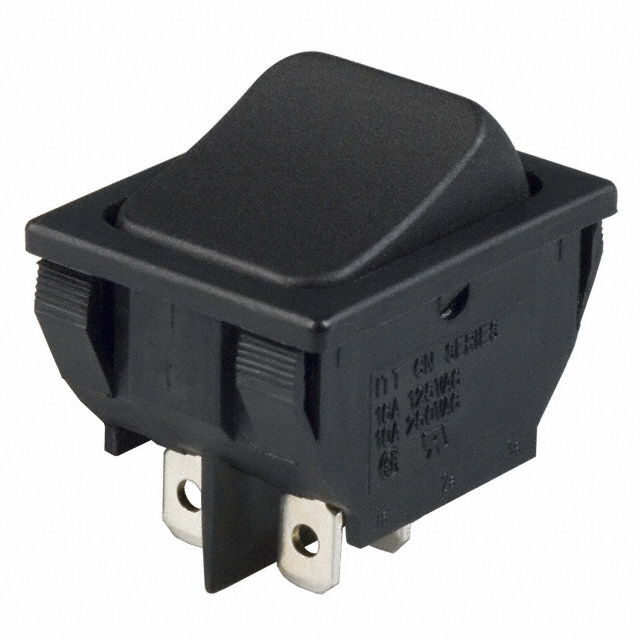

Littelfuse/Commercial Vehicle Products CN202J12S215Q	22.2 mm	30.4 mm		On-Off		DPST	125 V	Panel Mount Snap-In	85 °C	-20 C	16 A	cULus	Quick Connect - 0.187" (4.7mm)	10000 Cycles	Concave (Curved)	No Marking	Black
Littelfuse/Commercial Vehicle Products CN22J8GS405HQA7	22.2 mm	30.4 mm	Green Neon	On-Off	125 VAC	DPST	125 V	Panel Mount Snap-In	85 °C	-20 C	16 A	cULus	Quick Connect - 0.250" (6.3mm)	10000 Cycles	Flat - Illuminated	O I	Green
Littelfuse/Commercial Vehicle Products CN22J8RS405PQA7	22.2 mm	30.4 mm	Neon Red	On-Off	125 VAC	DPST	125 V	Panel Mount Snap-In	85 °C	-20 C	16 A	cULus	Quick Connect - 0.250" (6.3mm)	10000 Cycles	Flat - Illuminated	O -	Red
Littelfuse/Commercial Vehicle Products CN202J3AS215Q8	22.2 mm	30.4 mm	Amber Neon	On-Off	250 VAC	DPST	125 V	Panel Mount Snap-In	85 °C	-20 C	16 A	cULus	Quick Connect - 0.187" (4.7mm)	10000 Cycles	Concave (Curved) - Illuminated	No Marking	Amber

Catalog

Rocker Switches Rocker Double Pole Power Rocker Switch

Key Features

• Illuminated versions available

• Robust design

• Multiple actuator and termination styles

Description

C&K’s CN series double pole power rocker switch is a quality, long-lasting switch designed for use in power supply, industrial equipment and HVAC products. Featuring optional illumination and multiple actuator and termination styles, the robust design of the CN series guarantees to make your products stand out.
