56S209 Series
Manufacturer: Rosenberger
Beta
⌘K

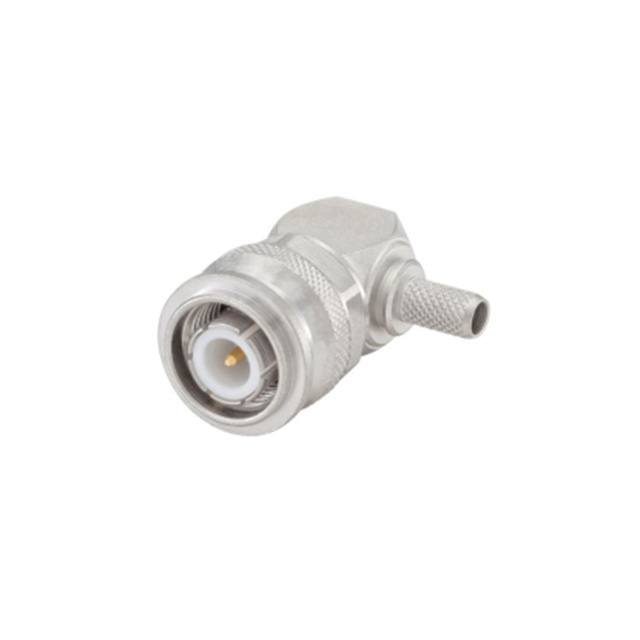

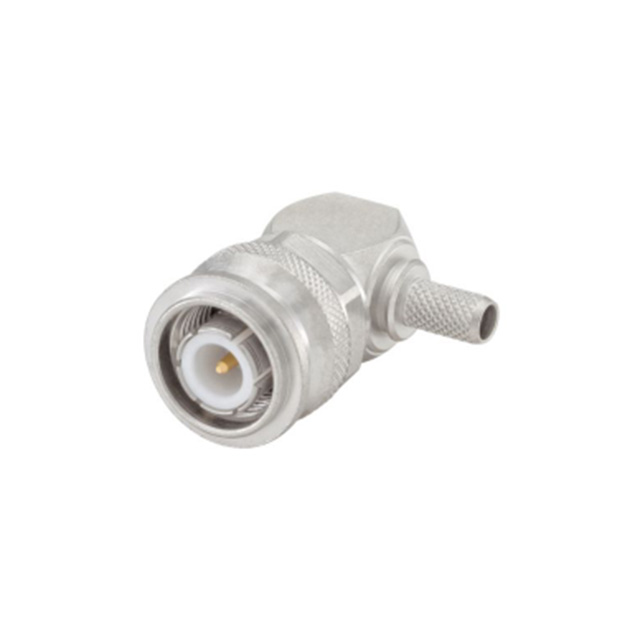

CONN TNC PLUG R/A 50OHM SOLDER
| Part | Body Finish | Dielectric Material | Insertion Loss | Voltage Rating | Body Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Includes | Impedance | Center Contact Material | Number of Ports | Connector Type | Mounting Type | Cable Group | Frequency - Max [Max] | Contact Termination | Fastening Type | Housing Color | Connector Style | Shield Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | White Bronze | Polytetrafluoroethylene (PTFE) | 0.05 dB | 500 V | Brass | 500 | -65 ░C | 165 °C | Gold | 1 Connector 1 End Cap 1 Ferrule | 50 Ohms | Brass | 1 | Plug Male Pin | Free Hanging (In-Line) Right Angle | 141 RG-58C | 10 GHz | Solder | Threaded | Silver | TNC | Crimp | |
 Rosenberger | White Bronze | Polytetrafluoroethylene (PTFE) | 0.05 dB | 500 V | Brass | 500 | -65 ░C | 165 °C | Gold | 1 Connector 1 End Cap 1 Ferrule | 50 Ohms | Brass | 1 | Plug Male Pin | Free Hanging (In-Line) Right Angle | RG-142B | 10 GHz | Solder | Threaded | Silver | TNC | Crimp | 223 400 |
