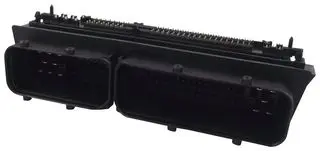

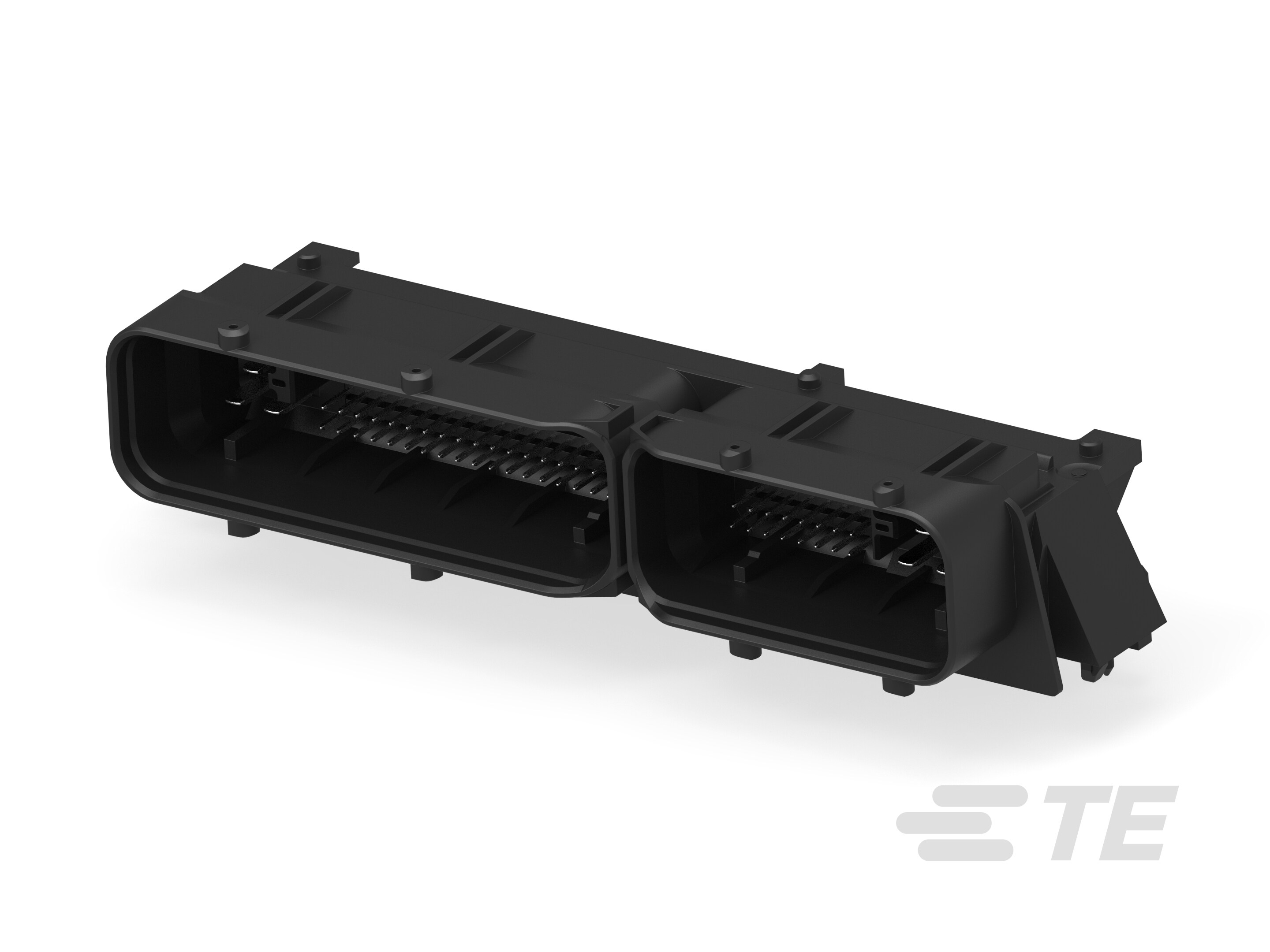

1241434 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
AUTOMOTIVE CONNECTORS MOD2ST/FLA-ST108+13
| Part | Applications | Contact Shape | Contact Finish - Post | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Style | Insulation Material | Number of Positions Loaded | Number of Positions [custom] | Number of Positions [custom] | Number of Positions | Features | Fastening Type | Termination | Mounting Type | Contact Type | Connector Type | Shrouding | Insulation Height | Insulation Height | Insulation Color | Voltage Rating | Pitch - Mating | Pitch - Mating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Automotive | Square | Tin | Copper Alloy | 120 °C | -40 C | Board to Cable/Wire | Glass Filled Nylon 6/6 Polyamide (PA66) | All | 108 | 13 | 121 | Board Lock | Latch Holder | Solder | Right Angle Through Hole | Male Pin | Header | Shrouded - 4 Wall | 31.1 mm | 1.224 in | Black | ||||
 TE Connectivity AMP Connectors | Square | Tin | Copper Alloy | 120 °C | -40 C | Board to Cable/Wire | Glass Filled Nylon 6/6 Polyamide (PA66) | All | 108 | 13 | 121 | Latch Holder | Solder | Right Angle Through Hole | Male Pin | Header | Shrouded - 4 Wall | Black | 230 V | 0.1 " | 2.54 mm | 1.5 A |
