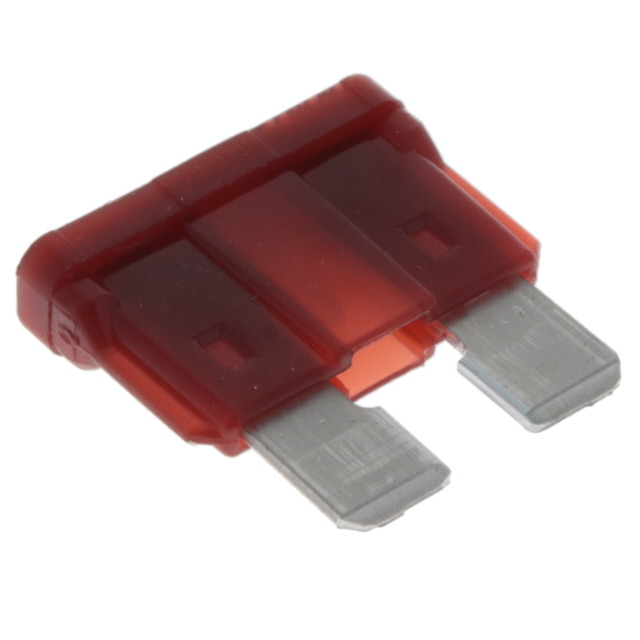

028707.5H Series

Fuse - ATOF 32VDC Nylon 7.5A 100 pc

Catalog

Fuse - ATOF 32VDC Nylon 7.5A 100 pc

Part	DC Cold Resistance	Approval Agency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Melting I²t	Voltage Rating - DC	Fuse Type	Current Rating (Amps)	Package / Case	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]
LITTELFUSE 028707.5H	0.01091 Ohms	CSA UL	Requires Holder	-40 C	105 ░C	60	32 V	Automotive	7.5 A	Blade ATO/ATC	Brown	5.1 mm	19.1 mm	0.752 in	0.484 in	12.3 mm	0.201 "

Catalog

Fuse - ATOF 32VDC Nylon 7.5A 100 pc

Description

This 7.5 A ATOF® 32V automotive blade fuses replaced an obsolete ATO Series 257 fuse with the same ampere rating. Automakers around the world consider ATOF fuses standard equipment for protecting low-voltage circuits.
