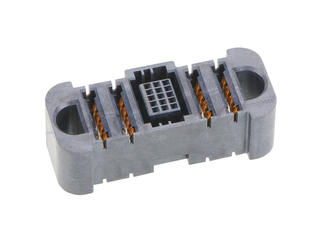

EXTreme Guardian HD Vertical Receptacle Assembly with Guide Receivers, 2 Power Circuits, 15 Signal Circuits
EXTreme Guardian HD Vertical Receptacle Assembly with Guide Receivers, 2 Power Circuits, 15 Signal Circuits
EXTreme Guardian HD Vertical Receptacle Assembly with Guide Receivers, 2 Power Circuits, 15 Signal Circuits
| Part | Number of Rows | Material - Insulation | Number of Positions | Connector Type | Fastening Type | Contact Material | Color | Termination | Features | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 5 | Liquid Crystal Polymer (LCP) | 23 | Receptacle Female Blade Sockets | Push-Pull | Copper Alloy | Black | Press-Fit | Board Guide | Gold | 0.76 Ám | 30 Áin | Through Hole |
 Molex | 1 | Liquid Crystal Polymer (LCP) | Receptacle Female Blade Sockets | Push-Pull | Copper Alloy | Black | Press-Fit | Board Guide | Gold | 0.76 Ám | 30 Áin | Through Hole | |
 Molex | 5 | Liquid Crystal Polymer (LCP) | 40 | Receptacle Female Blade Sockets | Push-Pull | Copper Alloy | Black | Press-Fit | Board Guide | Gold | 0.76 Ám | 30 Áin | Through Hole |
 Molex | 5 | Liquid Crystal Polymer (LCP) | 35 | Receptacle Female Blade Sockets | Push-Pull | Copper Alloy | Black | Press-Fit | Board Guide | Gold | 0.76 Ám | 30 Áin | Through Hole |
 Molex | 5 | Liquid Crystal Polymer (LCP) | 21 | Receptacle Female Blade Sockets | Push-Pull | Copper Alloy | Black | Press-Fit | Board Guide | Gold | 0.76 Ám | 30 Áin | Through Hole |
 Molex | 5 | Liquid Crystal Polymer (LCP) | 19 | Receptacle Female Blade Sockets | Push-Pull | Copper Alloy | Black | Press-Fit | Board Guide | Gold | 0.76 Ám | 30 Áin | Through Hole |
 Molex | 1 | Liquid Crystal Polymer (LCP) | 1 | Receptacle Female Blade Sockets | Push-Pull | Copper Alloy | Black | Press-Fit | Board Guide | Gold | 0.76 Ám | 30 Áin | Through Hole |
 Molex | 5 | Liquid Crystal Polymer (LCP) | 19 | Receptacle Female Blade Sockets | Push-Pull | Copper Alloy | Black | Press-Fit | Board Guide | Gold | 0.76 Ám | 30 Áin | Through Hole |
Molex | 5 | Liquid Crystal Polymer (LCP) | Receptacle Female Blade Sockets | Push-Pull | Copper Alloy | Black | Press-Fit | Board Guide | Gold | 0.76 Ám | 30 Áin | Through Hole | |
 Molex | 1 | Liquid Crystal Polymer (LCP) | 7 | Receptacle Female Blade Sockets | Push-Pull | Copper Alloy | Black | Press-Fit | Board Guide | Gold | 0.76 Ám | 30 Áin | Through Hole |
