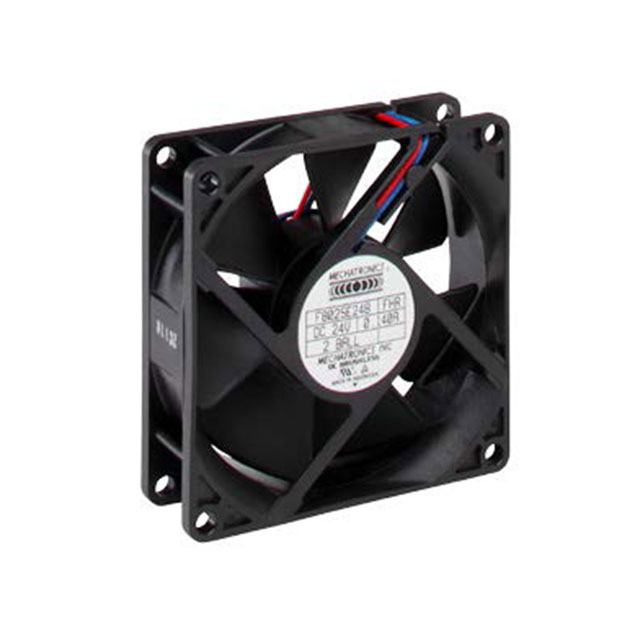

F8025 Series

Catalog

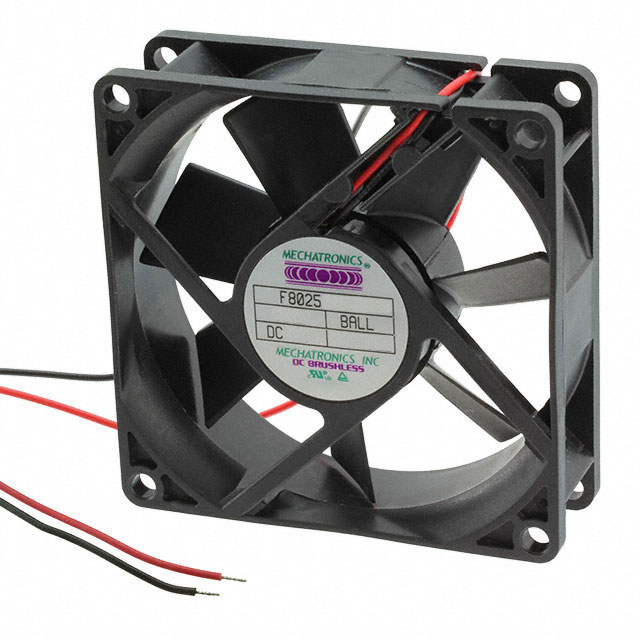

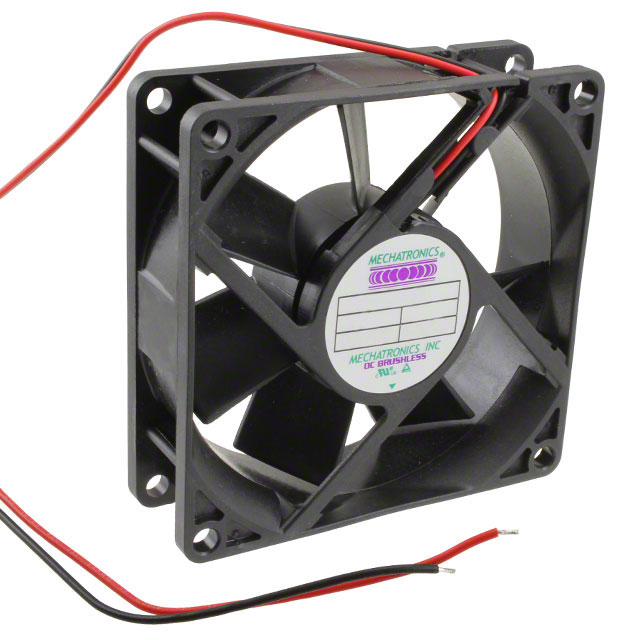

FAN AXIAL 80X25MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Bearing Type	Fan Type	Air Flow	Air Flow	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Weight [custom]	Weight [custom]	Voltage - Rated	Width [y]	Features	RPM	Noise	Static Pressure	Static Pressure	Termination
Mechatronics Fan Group F8025E12B2-FHR	0.24 A	Polybutylene Terephthalate (PBT)	Ball	Tubeaxial	1.29 m³/min	46 CFM	CE cUL TUV UL	80 mm	80 mm	82.55 g	0.182 lb	12 VDC	25 mm	Locked Rotor Sensor Thermal Overload Protector (TOP)	3600 RPM	35 dB	52.3 Pa	0.21 in H2O	3 Wire Leads
Mechatronics Fan Group F8025E05B1-FHR		Polybutylene Terephthalate (PBT)	Ball	Tubeaxial	1.29 m³/min	46 CFM	CE cUL TUV UL	80 mm	80 mm	82.55 g	0.182 lb	5 V	25 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	3600 RPM	35 dB	52.3 Pa	0.21 in H2O	3 Wire Leads
Mechatronics Fan Group F8025M12B-FSR	120 mA	Polybutylene Terephthalate (PBT)	Ball	Tubeaxial	0.952 m³/min	34 CFM	CE cUL TUV UL	80 mm	80 mm	78.93 g	0.174 lb	12 VDC	25 mm	Auto Restart Locked Rotor Protection	2100 RPM	29 dB(A)	22.4 Pa	0.09 in H2O	2 Wire Leads
Mechatronics Fan Group F8025H12B2-FHR	0.145 A	Polybutylene Terephthalate (PBT)	Ball	Tubeaxial	1.12 m³/min	40 CFM	CE cUL TUV UL	80 mm	80 mm	82.55 g	0.182 lb	12 VDC	25 mm	Locked Rotor Sensor Thermal Overload Protector (TOP)	3200 RPM	32 dB	42.3 Pa	0.17 in H2O	3 Wire Leads
Mechatronics Fan Group F8025H12B-FHR-CC	0.145 A	Polybutylene Terephthalate (PBT)	Ball	Tubeaxial	1.12 m³/min	40 CFM	CE cUL TUV UL	80 mm	80 mm	82.55 g	0.182 lb	12 VDC	25 mm	Conformal Coating Thermal Overload Protector (TOP)	3200 RPM	32 dB	42.3 Pa	0.17 in H2O	2 Wire Leads
Mechatronics Fan Group F8025X12B1-FHR	480 mA	Polybutylene Terephthalate (PBT)	Ball	Tubeaxial	1.48 mł/min	53 CFM	CE cUL TUV UL	80 mm	80 mm	82.55 g	0.182 lb	12 VDC	25 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	4200 RPM	39 dB(A)	64.8 Pa	0.26 in H2O	3 Wire Leads
Mechatronics Fan Group F8025E24B-FHR	140 mA	Polybutylene Terephthalate (PBT)	Ball	Tubeaxial	1.29 m³/min	46 CFM	CE cUL TUV UL	80 mm	80 mm	82.55 g	0.182 lb	24 VDC	25 mm	Thermal Overload Protector (TOP)	3600 RPM	35 dB	52.3 Pa	0.21 in H2O	2 Wire Leads
Mechatronics Fan Group F8025H24B-FSR-L2	0.09 A		Ball	Tubeaxial	1.09 m³/min	39 CFM	CE cUL TUV UL	80 mm	80 mm	78.93 g	0.174 lb	24 VDC	25 mm	Auto Restart Locked Rotor Protection	2400 RPM	29 dB(A)	29.9 Pa	0.12 in H2O	2 Wire Leads
Mechatronics Fan Group F8025H24B-FHR	0.09 A	Polybutylene Terephthalate (PBT)	Ball	Tubeaxial	1.12 m³/min	40 CFM	CE cUL TUV UL	80 mm	80 mm	82.55 g	0.182 lb	24 VDC	25 mm	Thermal Overload Protector (TOP)	3200 RPM	32 dB	42.3 Pa	0.17 in H2O	2 Wire Leads
Mechatronics Fan Group F8025M12B-RSR	120 mA	Polybutylene Terephthalate (PBT)	Ball	Tubeaxial	0.952 m³/min	34 CFM	CE cUL TUV UL	80 mm	80 mm	78.93 g	0.174 lb	12 VDC	25 mm	Auto Restart Locked Rotor Protection	2100 RPM	29 dB(A)	22.4 Pa	0.09 in H2O	2 Wire Leads
