CB25 Series
Manufacturer: Panduit Corp
Beta
⌘K

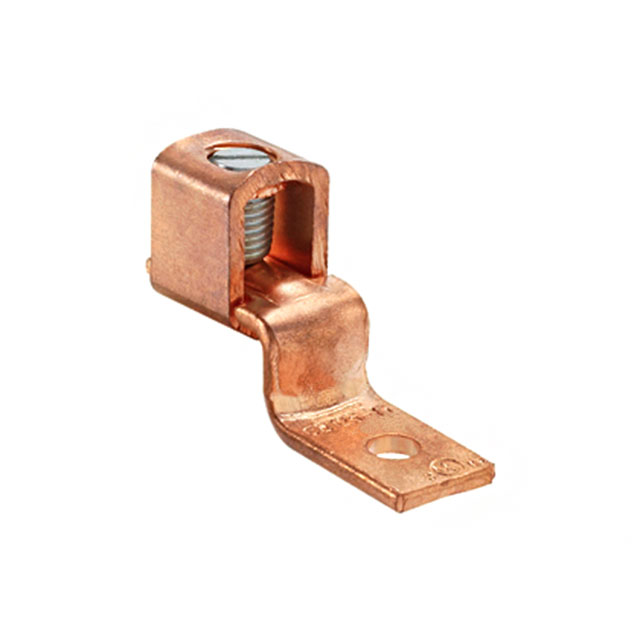

CONN TERM RECT LUG 10-14AWG #1/8
| Part | Contact Material | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Mounting Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Features | Termination | Insulation | Stud/Tab Size | Terminal Style | Terminal Type | Wire Gauge [Max] | Wire Gauge [Min] | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Copper | 0.142 in | 3.61 mm | Free Hanging (In-Line) | 7.9 mm | 0.311 in | With Screw | Screw | Non-Insulated | 0.125 Stud | Single Stud Hole | Lug Grounding | 14 AWG | 10 AWG | 1.8 mm | 0.071 in |
