XHP Series

Catalog

CONN RCPT HSG 10POS 2.50MM

Part	Note	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Number of Positions	Contact Type	Insulation Material	Mounting Type	Pitch	Pitch	Number of Rows	Connector Type

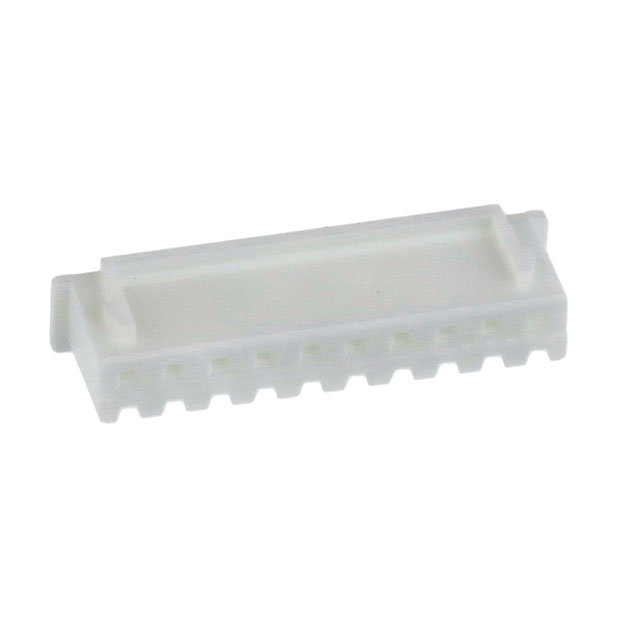

JST Sales America Inc. XHP-10	Contacts Not Included	Natural	85 °C	-25 °C	Crimp	10	Female Socket	Nylon 6 Polyamide (PA6)	Free Hanging (In-Line)	2.5 mm	0.098 in	1	Receptacle

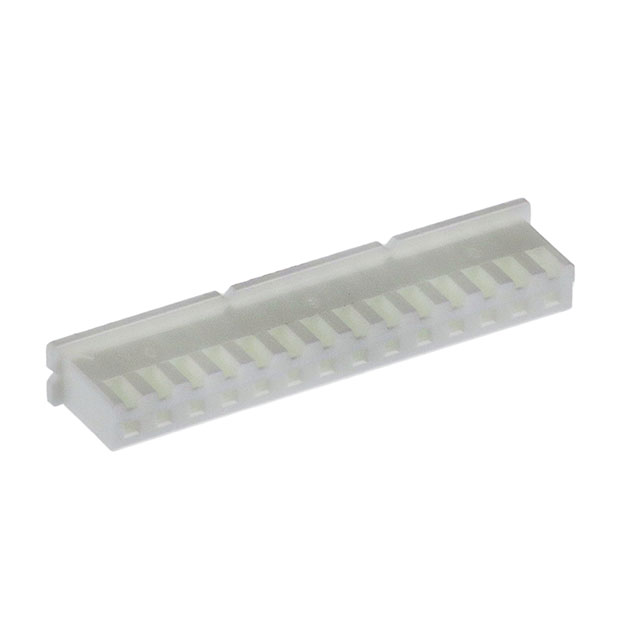

JST Sales America Inc. XHP-14	Contacts Not Included	Natural	85 °C	-25 °C	Crimp	14	Female Socket	Nylon 6 Polyamide (PA6)	Free Hanging (In-Line)	2.5 mm	0.098 in	1	Receptacle

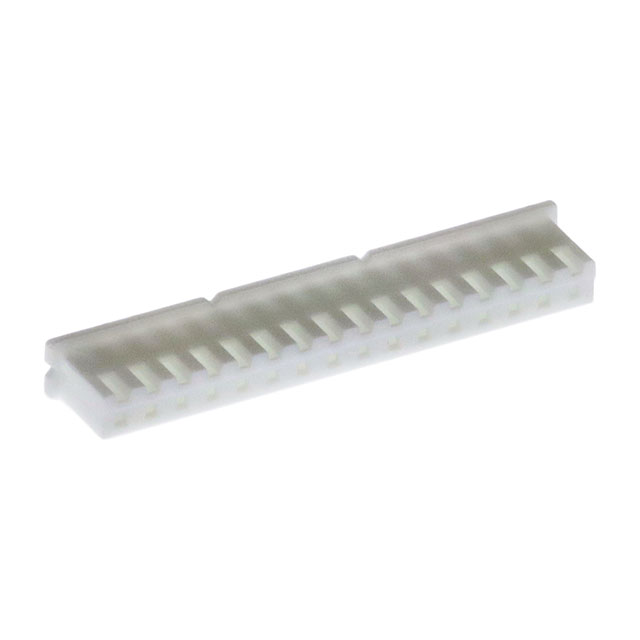

JST Sales America Inc. XHP-16	Contacts Not Included	Natural	85 °C	-25 °C	Crimp	16	Female Socket	Nylon 6 Polyamide (PA6)	Free Hanging (In-Line)	2.5 mm	0.098 in	1	Receptacle

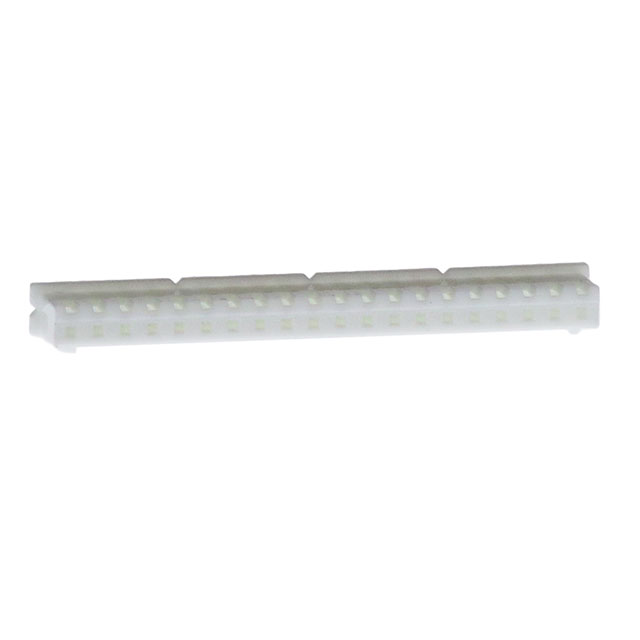

JST Sales America Inc. XHP-20	Contacts Not Included	Natural	85 °C	-25 °C	Crimp	20	Female Socket	Nylon 6 Polyamide (PA6)	Free Hanging (In-Line)	2.5 mm	0.098 in	1	Receptacle

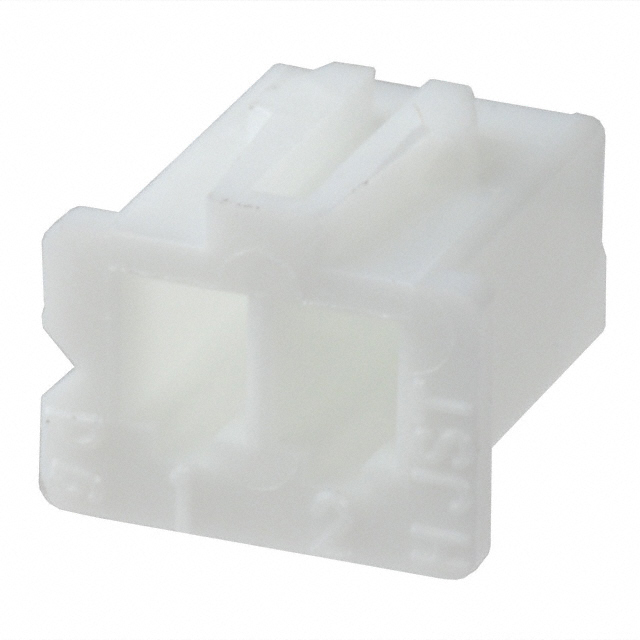

JST Sales America Inc. XHP-2	Contacts Not Included	Natural	85 °C	-25 °C	Crimp	2	Female Socket	Nylon 6 Polyamide (PA6)	Free Hanging (In-Line)	2.5 mm	0.098 in	1	Receptacle

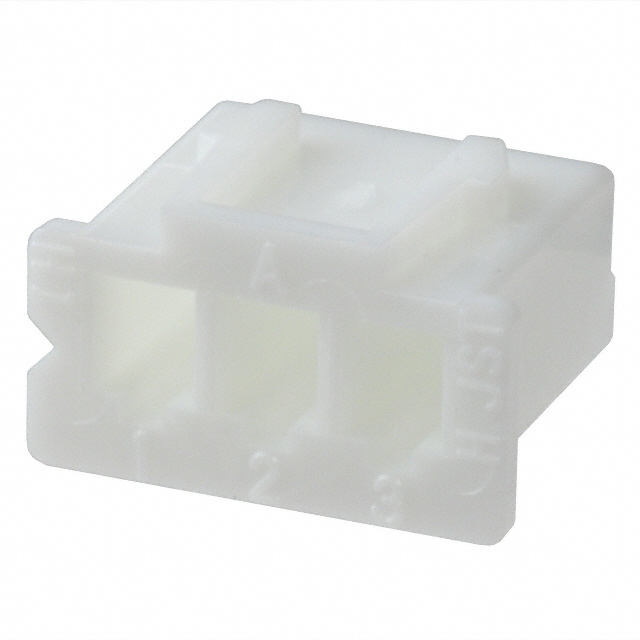

JST Sales America Inc. XHP-3	Contacts Not Included	Natural	85 °C	-25 °C	Crimp		Female Socket	Nylon 6 Polyamide (PA6)	Free Hanging (In-Line)	2.5 mm	0.098 in	1	Receptacle

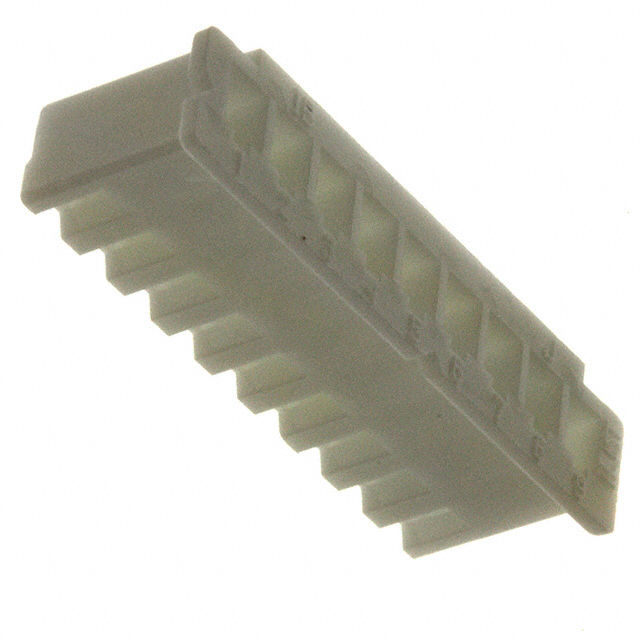

JST Sales America Inc. XHP-9	Contacts Not Included	Natural	85 °C	-25 °C	Crimp	9	Female Socket	Nylon 6 Polyamide (PA6)	Free Hanging (In-Line)	2.5 mm	0.098 in	1	Receptacle
JST Sales America Inc. XHP-3-Y	Contacts Not Included	Yellow	85 °C	-25 °C	Crimp		Female Socket	Nylon 6 Polyamide (PA6)	Free Hanging (In-Line)	2.5 mm	0.098 in	1	Receptacle

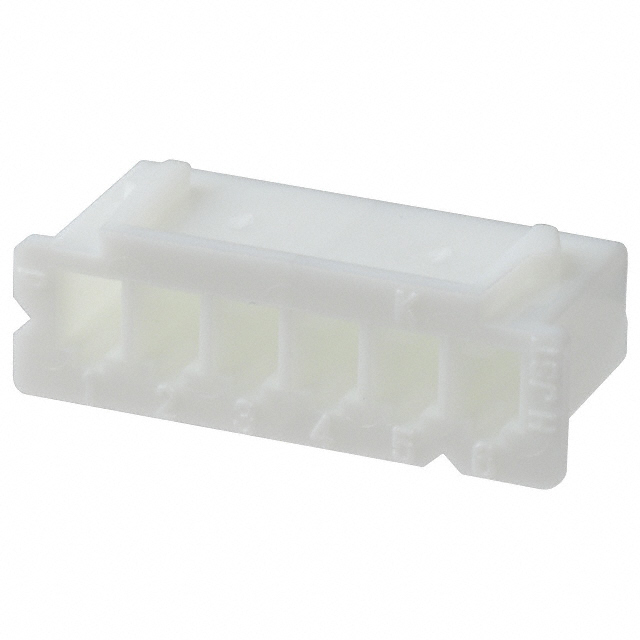

JST Sales America Inc. XHP-6	Contacts Not Included	Natural	85 °C	-25 °C	Crimp	6	Female Socket	Nylon 6 Polyamide (PA6)	Free Hanging (In-Line)	2.5 mm	0.098 in	1	Receptacle

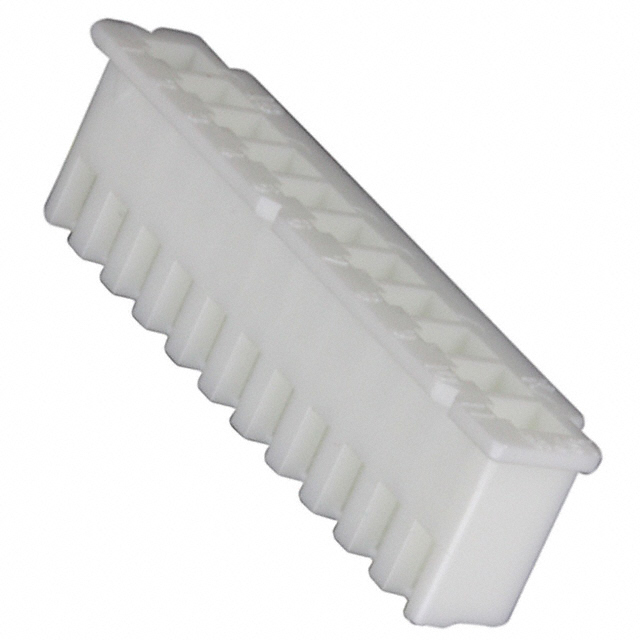

JST Sales America Inc. XHP-11	Contacts Not Included	Natural	85 °C	-25 °C	Crimp	11	Female Socket	Nylon 6 Polyamide (PA6)	Free Hanging (In-Line)	2.5 mm	0.098 in	1	Receptacle
