726-104 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 104POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Contact Type	Termination	Contact Finish	Number of Positions/Bay/Row	Gender	Mounting Type	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Read Out	Number of Positions

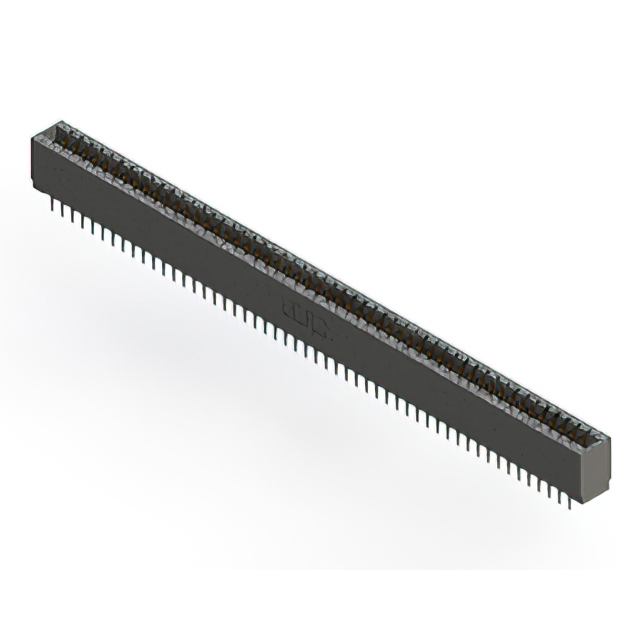

EDAC Inc. 726-104-525-201	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	Cantilever	Press-Fit	Gold	52	Female	Through Hole	2	30 Áin	0.76 Ám	Non Specified - Dual Edge	Dual	104
EDAC Inc. 726-104-540-201	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	Cantilever	Press-Fit Wire Wrap	Gold	52	Female	Through Hole	2	30 Áin	0.76 Ám	Non Specified - Dual Edge	Dual	104
EDAC Inc. 726-104-553-201	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	Cantilever	Press-Fit Wire Wrap	Gold	52	Female	Through Hole	2	30 Áin	0.76 Ám	Non Specified - Dual Edge	Dual	104
EDAC Inc. 726-104-541-201	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	Cantilever	Press-Fit Wire Wrap	Gold	52	Female	Through Hole	2	30 Áin	0.76 Ám	Non Specified - Dual Edge	Dual	104
EDAC Inc. 726-104-545-201	2	Polyester Thermoplastic	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Copper Alloy	Black	Cantilever	Press-Fit Wire Wrap	Gold	52	Female	Through Hole	2	30 Áin	0.76 Ám	Non Specified - Dual Edge	Dual	104
