046991 Series

Manufacturer: Molex

Catalog

CONN POWER F 12 POS 4.2MM SOLDER RA THRU-HOLE 1 TERMINAL 1 PORT TRAY

Part	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Termination	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Shrouding	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Type	Mounting Type	Connector Type	Insulation Material	Applications	Contact Shape	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Current Rating (Amps)	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]
Molex 0469912012	Black	30 Áin	0.76 Ám	Tin	Solder	Board to Cable/Wire	2.54 µm	100 µin	2	Shrouded - 4 Wall	Gold	0.13 in	3.3 mm	Locking Ramp	Male Pin	Through Hole Right Angle	Header	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Square	12	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	UL94 V-0	All
Molex 0469911012	Black	100 çin	2.54 çm	Tin	Solder	Board to Cable/Wire	2.54 µm	100 µin	2	Shrouded - 4 Wall		0.13 in	3.3 mm	Locking Ramp	Male Pin	Through Hole Right Angle	Header	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Square	12	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	UL94 V-0	All
Molex 0469912008	Black	30 Áin	0.76 Ám	Tin	Solder	Board to Cable/Wire	2.54 µm	100 µin	2	Shrouded - 4 Wall	Gold	0.13 in	3.3 mm	Locking Ramp	Male Pin	Through Hole Right Angle	Header	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Square	8	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	UL94 V-0	All

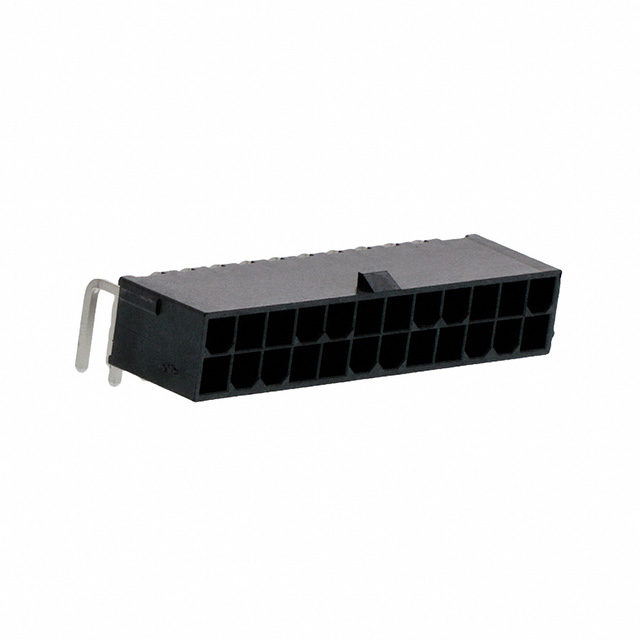

Molex 0469911024	Black	100 çin	2.54 çm	Tin	Solder	Board to Cable/Wire	2.54 µm	100 µin	2	Shrouded - 4 Wall		0.13 in	3.3 mm	Locking Ramp	Male Pin	Through Hole Right Angle	Header	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Square	24	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	UL94 V-0	All
Molex 0469914010	Black	100 çin	2.54 çm	Tin	Solder	Board to Cable/Wire	2.54 µm	100 µin	2	Shrouded - 4 Wall		0.13 in	3.3 mm	Locking Ramp	Male Pin	Through Hole Right Angle	Header	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Square	10	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	UL94 V-0	All	Varies by Wire Gauge	600 VAC	-40 °C	105 ░C
Molex 0469914008	Black	100 çin	2.54 çm	Tin	Solder	Board to Cable/Wire	2.54 µm	100 µin	2	Shrouded - 4 Wall		0.13 in	3.3 mm	Locking Ramp	Male Pin	Through Hole Right Angle	Header	Liquid Crystal Polymer (LCP)	General Purpose Industrial Telecommunications	Square	8	4.2 mm	0.165 in	Brass	4.2 mm	0.165 in	UL94 V-0	All	Varies by Wire Gauge	600 VAC	-40 °C	105 ░C
