5000FE Series
Manufacturer: Belden Inc.
Beta
⌘K

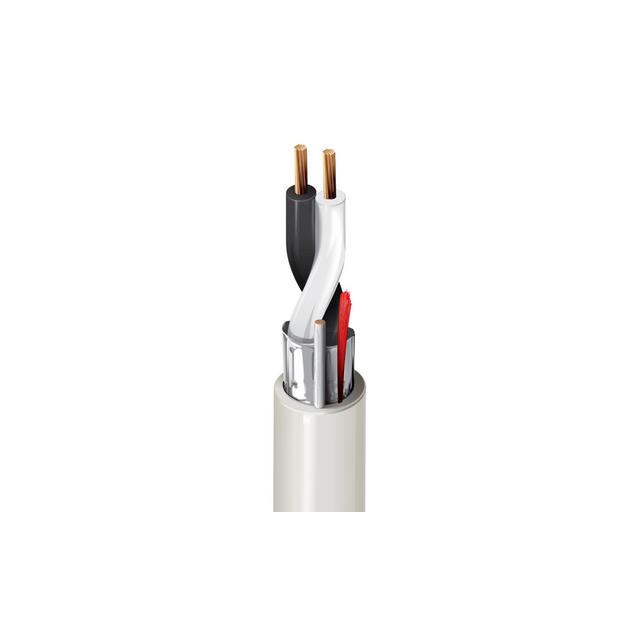

CABLE 2CON 12AWG GRAY SHLD
| Part | Shield Material | Shield Coverage | Ratings | Shield Type | Number of Conductors | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Cable Type | Length | Length | Voltage | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | CL3R FPLR | Foil | 2 | 12 AWG | 19 | 25 AWG | Commercial Audio | Poly-Vinyl Chloride (PVC) Riser | Gray | 0.017 " | 0.432 mm | Drain Wire Rip Cord | Multi-Conductor | 304.8 m | 1000 ft | 300 VDC | Copper Bare | 0.264 in | 6.71 mm | Polypropylene (PP) |
