34BWSP Series

Catalog

TOG,MINI,S,SPDT,O-O-O,T,SL,LF

Part	Electrical Life	Actuator Material	Circuit	Current Rating (Amps)	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switch Function	Illumination	Features	Voltage Rating - AC	Bushing Thread	Voltage Rating - DC	Mounting Type	Actuator Type	Actuator Length [x]	Panel Cutout Dimensions [diameter]
Grayhill Inc. 34BWSP51B1M1QT	50000 Cycles	Brass Chrome Plated	SPDT	5 A	IP67 - Dust Tight Waterproof	85 °C	-30 ░C	Solder Lug	On-Off-Mom	Non-Illuminated	Epoxy Sealed Terminals	125 V	1/4-40	28 V	Panel Mount	Standard Round	10.6 mm	0.25 in
Grayhill Inc. 34BWSP11B4M1RT	50000 Cycles	Brass Chrome Plated	SPDT	0.4 VA	IP67 - Dust Tight Waterproof	85 °C	-30 ░C	Solder Lug	On-On	Non-Illuminated	Epoxy Sealed Terminals	20 V	Unthreaded	20 V	Panel Mount	Standard Round	12.6 mm
Grayhill Inc. 34BWSP31B1M1RT	50000 Cycles	Brass Chrome Plated	SPDT	0.4 VA	IP67 - Dust Tight Waterproof	85 °C	-30 ░C	Solder Lug	On-Off-On	Non-Illuminated	Epoxy Sealed Terminals	20 V	1/4-40	20 V	Panel Mount	Standard Round	10.6 mm	0.25 in
Grayhill Inc. 34BWSP41B4V3RT	50000 Cycles	Brass Chrome Plated	SPDT	0.4 VA	IP67 - Dust Tight Waterproof	85 °C	-30 ░C	PC Pin	Mom-Off-Mom	Non-Illuminated	Epoxy Sealed Terminals	20 V	Unthreaded	20 V	Through Hole	Standard Round	12.6 mm

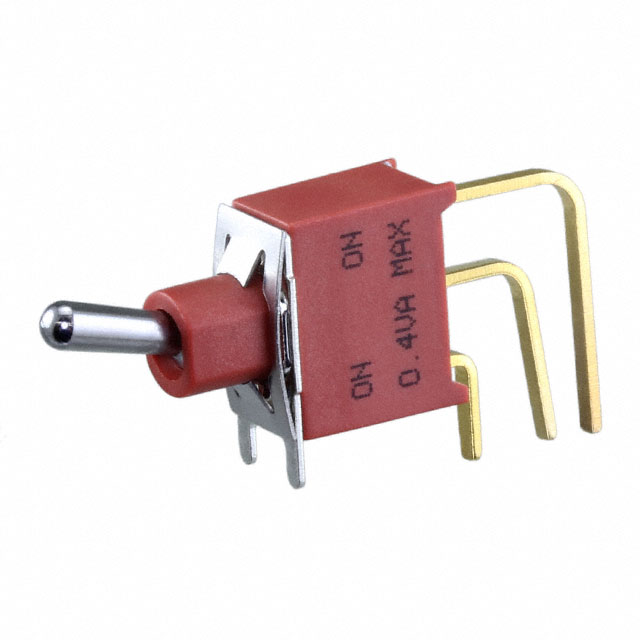

Grayhill Inc. 34BWSP12B4M7RT	50000 Cycles	Brass Chrome Plated	SPDT	0.4 VA	IP67 - Dust Tight Waterproof	85 °C	-30 ░C	PC Pin	On-On	Non-Illuminated	Epoxy Sealed Terminals	20 V	Unthreaded	20 V	Right Angle Through Hole Vertical	Standard Round	7.6 mm
Grayhill Inc. 34BWSP32B1M2QT	50000 Cycles	Brass Chrome Plated	SPDT	5 A	IP67 - Dust Tight Waterproof	85 °C	-30 ░C	PC Pin	On-Off-On	Non-Illuminated	Epoxy Sealed Terminals	125 V	1/4-40	28 V	Panel Mount	Standard Round	5.5 mm	0.25 in
Grayhill Inc. 34BWSP12B4M2RT	50000 Cycles	Brass Chrome Plated	SPDT	0.4 VA	IP67 - Dust Tight Waterproof	85 °C	-30 ░C	PC Pin	On-On	Non-Illuminated	Epoxy Sealed Terminals	20 V	Unthreaded	20 V	Through Hole	Standard Round	7.6 mm
Grayhill Inc. 34BWSP12B1M1RT	50000 Cycles	Brass Chrome Plated	SPDT	0.4 VA	IP67 - Dust Tight Waterproof	85 °C	-30 ░C	Solder Lug	On-On	Non-Illuminated	Epoxy Sealed Terminals	20 V	1/4-40	20 V	Panel Mount	Standard Round	5.5 mm	0.25 in
Grayhill Inc. 34BWSP12B4M6RT	50000 Cycles	Brass Chrome Plated	SPDT	0.4 VA	IP67 - Dust Tight Waterproof	85 °C	-30 ░C	PC Pin	On-On	Non-Illuminated	Epoxy Sealed Terminals	20 V	Unthreaded	20 V	Right Angle Through Hole	Standard Round	7.6 mm
Grayhill Inc. 34BWSP32B4M7GT	50000 Cycles	Brass Chrome Plated	SPDT	5 A	IP67 - Dust Tight Waterproof	85 °C	-30 ░C	PC Pin	On-Off-On	Non-Illuminated	Epoxy Sealed Terminals	125 V	Unthreaded	28 V	Right Angle Through Hole Vertical	Standard Round	7.6 mm
